8-28 — CHASSIS ELECTRICAL (#141320) — 16 parça

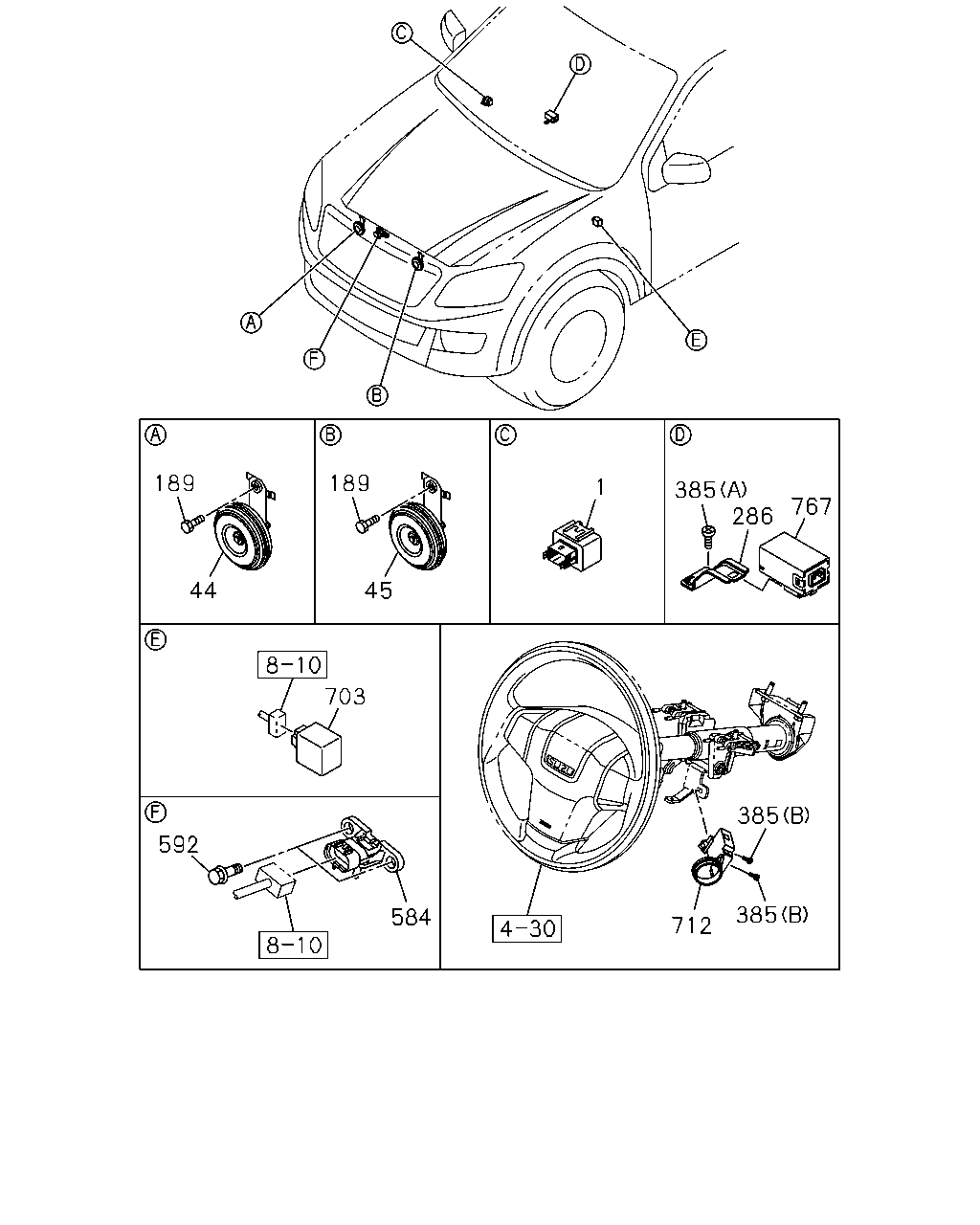

çizim 426714
189 44 189 45 1 385 767 286 385 385 712 584 592 703
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-98080-978-0 01 1 1406- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE 8-98084-022-1 01 1 1406- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-98084-023-0 01 1 1406- ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1406-1501 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1406-1501 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●
286 03.670 BRACKET
REMOTE CONT DOOR LOCK<AP5> 		8-98102-503-0 01 1 1406- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1406- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1406- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
03.331 		8-98020-514-0 01 1 1406- ● ● ● ● ● ●
592 02.490 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ● ● ● ●
703 09.778 TIMER; DEFOGGER
EXC. REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1406- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT 8-98123-260-5 01 1 1406-1411 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT 8-98293-154-0 01 1 1412- ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98076-338-1 01 1 1406- ● ● ● ● ● ●
