8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#141318) — 35 parça

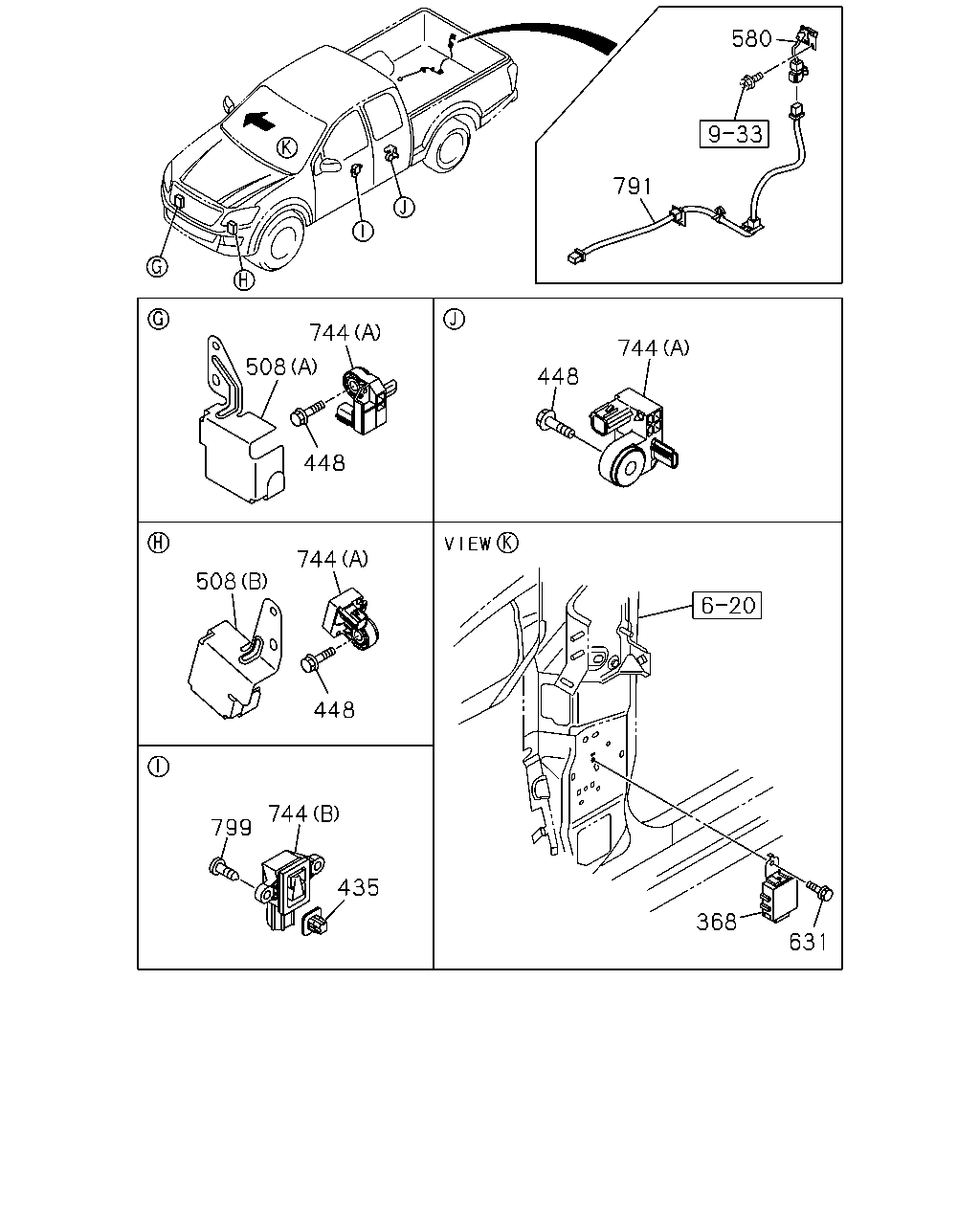

çizim 426657
744 791 448 744 508 448 744 508 448 744 435 799 368 580 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1406- ● ● ● ● ● ●
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1406- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1406- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1406- ● ● ● ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1406- ● ● ● ● ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1406- ● ● ● ● ● ●
580 02.510 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-423-0 01 1 1406- ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1406- ● ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1406- ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1406- ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1406- ● ● ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1406- ● ● ● ● ● ●
791 02.480 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-428-0 01 1 1406- ● ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1406- ● ● ● ● ● ●

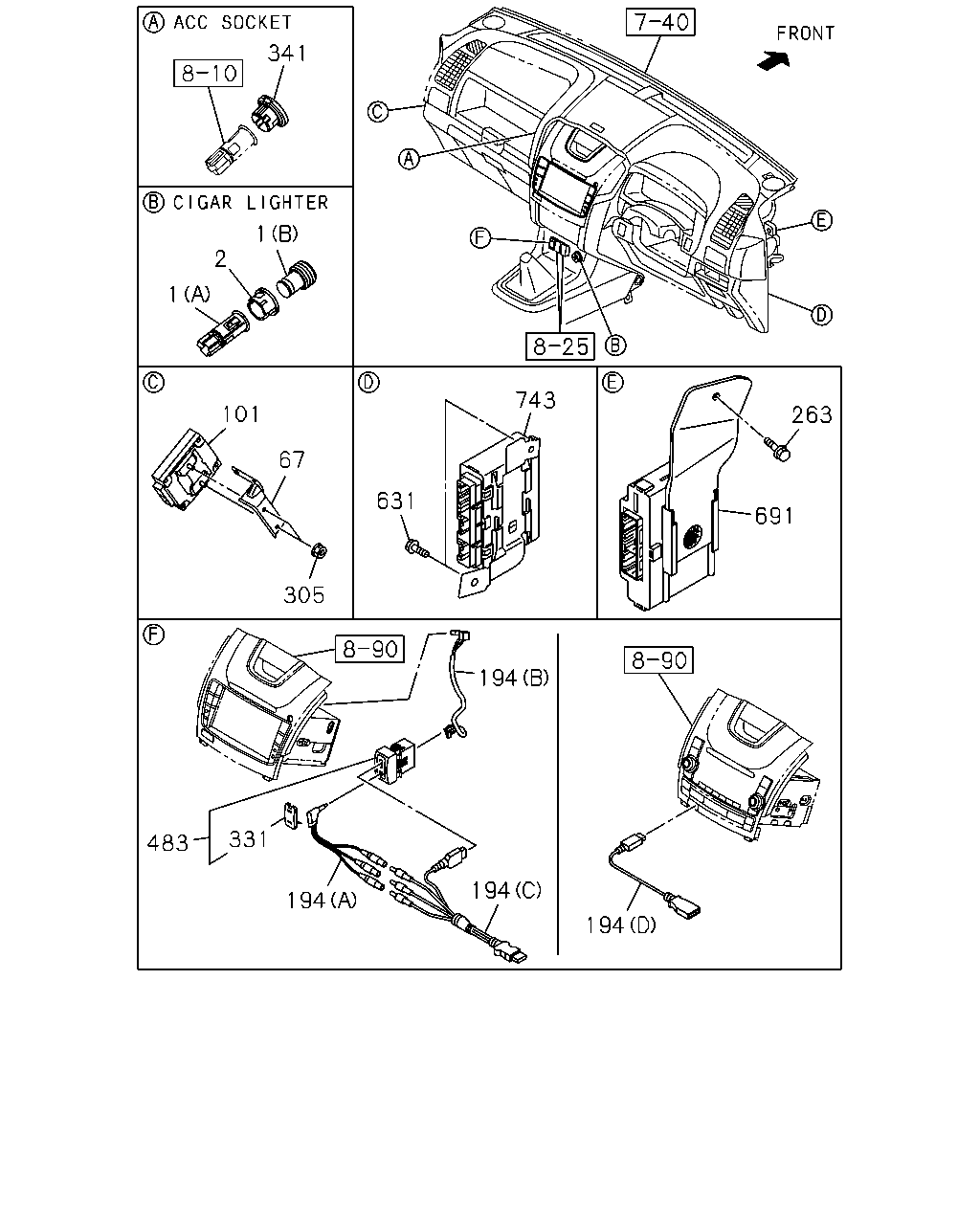

çizim 426693
194 331 483 194 194 194 305 67 101 743 631 263 691 341 1 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1406- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1406- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1406- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1406- ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98239-940-0 01 1 1406- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98239-940-0 01 1 1406- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
09.665 (D) 		8-98193-631-0 01 1 1406- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 (D) 		8-98193-631-0 01 1 1406- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.665 (C) 		8-98235-372-0 01 1 1406- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98209-263-0 01 1 1406- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98209-351-0 01 1 1406- ● ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1406- ● ● ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1406- ● ● ● ● ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98217-463-0 01 1 1406- ● ● ●
341 04.115 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1406- ● ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1406- ● ● ● ● ● ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-259-1 01 1 1406- ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1406- ● ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1406- ● ● ● ● ● ●
691 04.115 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1406- ● ● ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98215-286-0 01 1 1406- ● ● ● ● ● ●
