8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#141317) — 41 parça
çizim 426407
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ● ● ● ●
çizim 426426
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ● ● ● ●

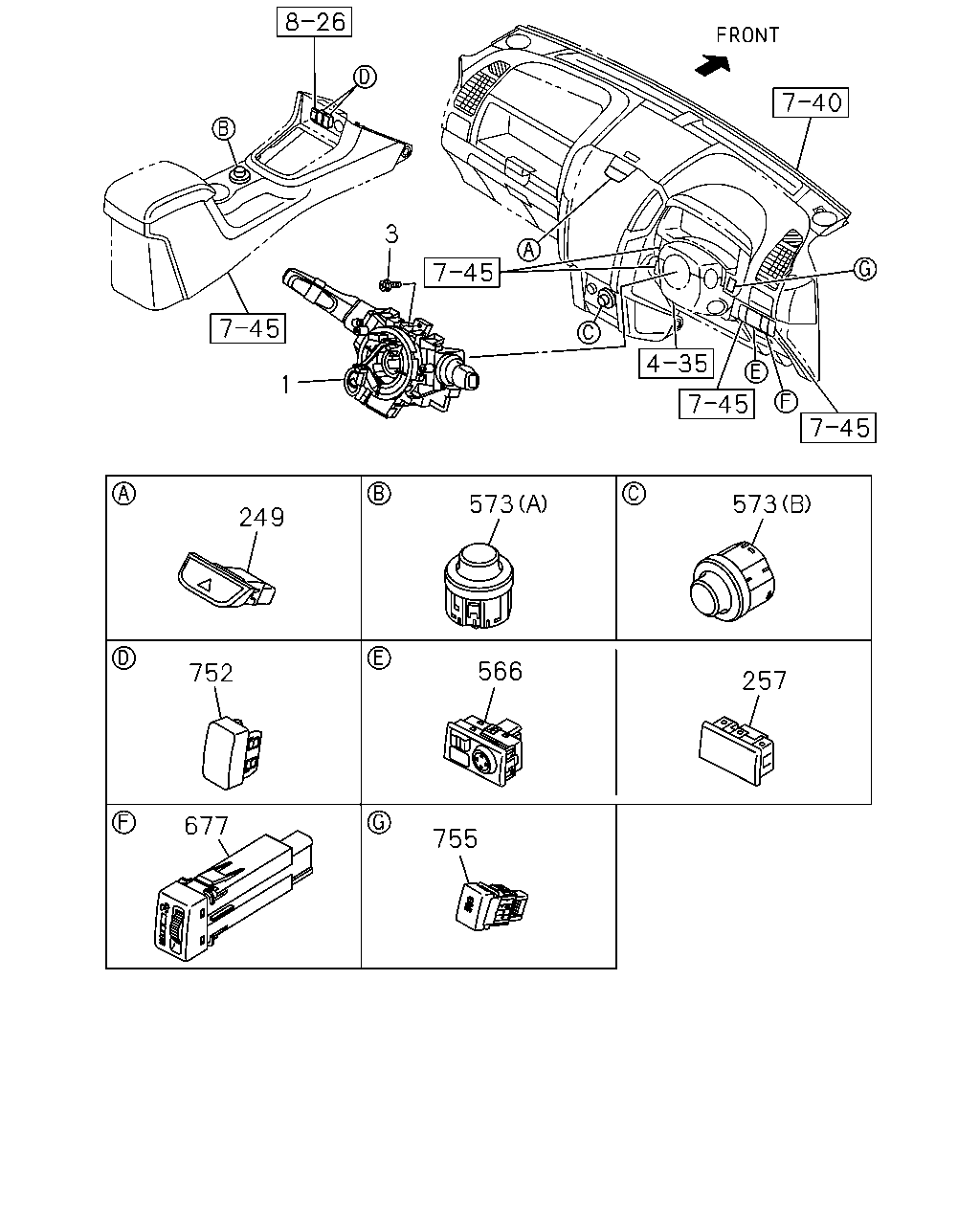

çizim 426655
1 3 249 573 573 257 566 752 677 755
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
FOG LAMP<T96> 		8-98194-142-1 01 1 1406- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98194-142-1 01 1 1406- ● ● ●
1 02.895 SWITCH; COMB
EXC. FOG LAMP<T96> 		8-98194-141-1 01 1 1406- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-141-1 01 1 1406- ● ● ●
1 02.895 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98194-137-1 01 1 1406- ● ● ●
1 02.895 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. FOG LAMP<T96> 		8-98227-411-1 01 1 1406- ● ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1406- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1406- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1406- ● ● ● ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98106-392-1 01 1 1406- ● ● ● ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1406- ● ● ●
573 09.755 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1406- ● ●
573 09.755 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1406- ●
573 09.755 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1406- ● ●
573 09.755 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1406- ●
677 02.485 SWITCH; ILLUMINATION 8-98058-084-2 01 1 1406- ● ● ● ● ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1406- ● ● ●
755 03.883 SWITCH; ESC OFF 8-98058-081-1 01 1 1406- ● ● ● ● ● ●

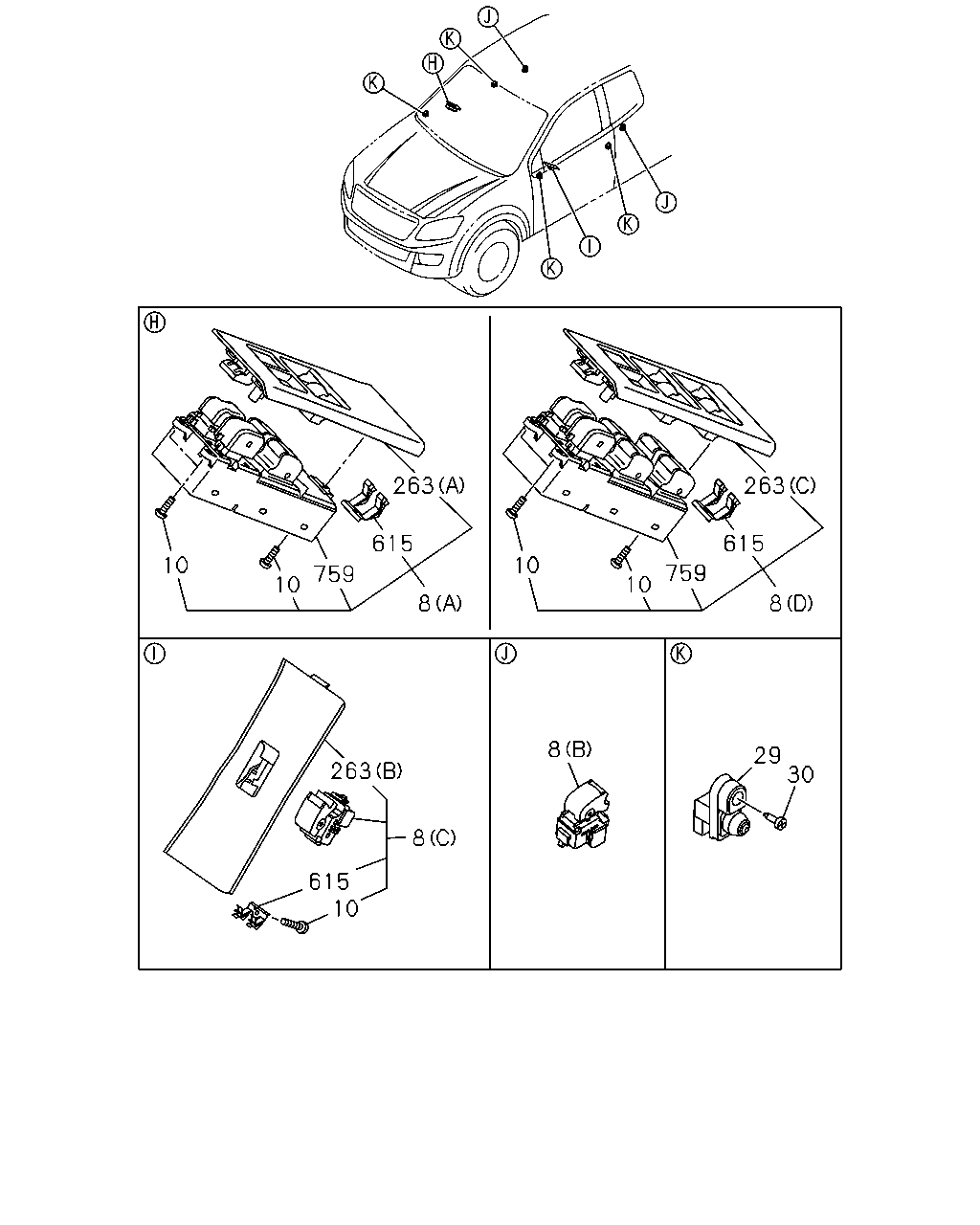

çizim 426696
10 10 759 263 615 8 10 10 759 615 263 8 29 30 8 263 8 615 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97416-734-0 01 1 1406- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97416-810-0 01 1 1406- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97416-735-0 01 1 1406- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97416-975-0 01 1 1406- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-004-0 02 1 1406- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK 		8-97416-976-0 01 1 1406- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1406- ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1406- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1406- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1406- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1406- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1406- ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-247-0 01 1 1406- ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-243-0 01 1 1406- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98192-244-0 01 1 1406- ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1406- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1406- ● ● ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-249-0 01 1 1406- ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-250-0 01 1 1406- ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-251-0 01 1 1406- ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-252-0 01 1 1406- ● ●
