◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#141316) — 18 parça

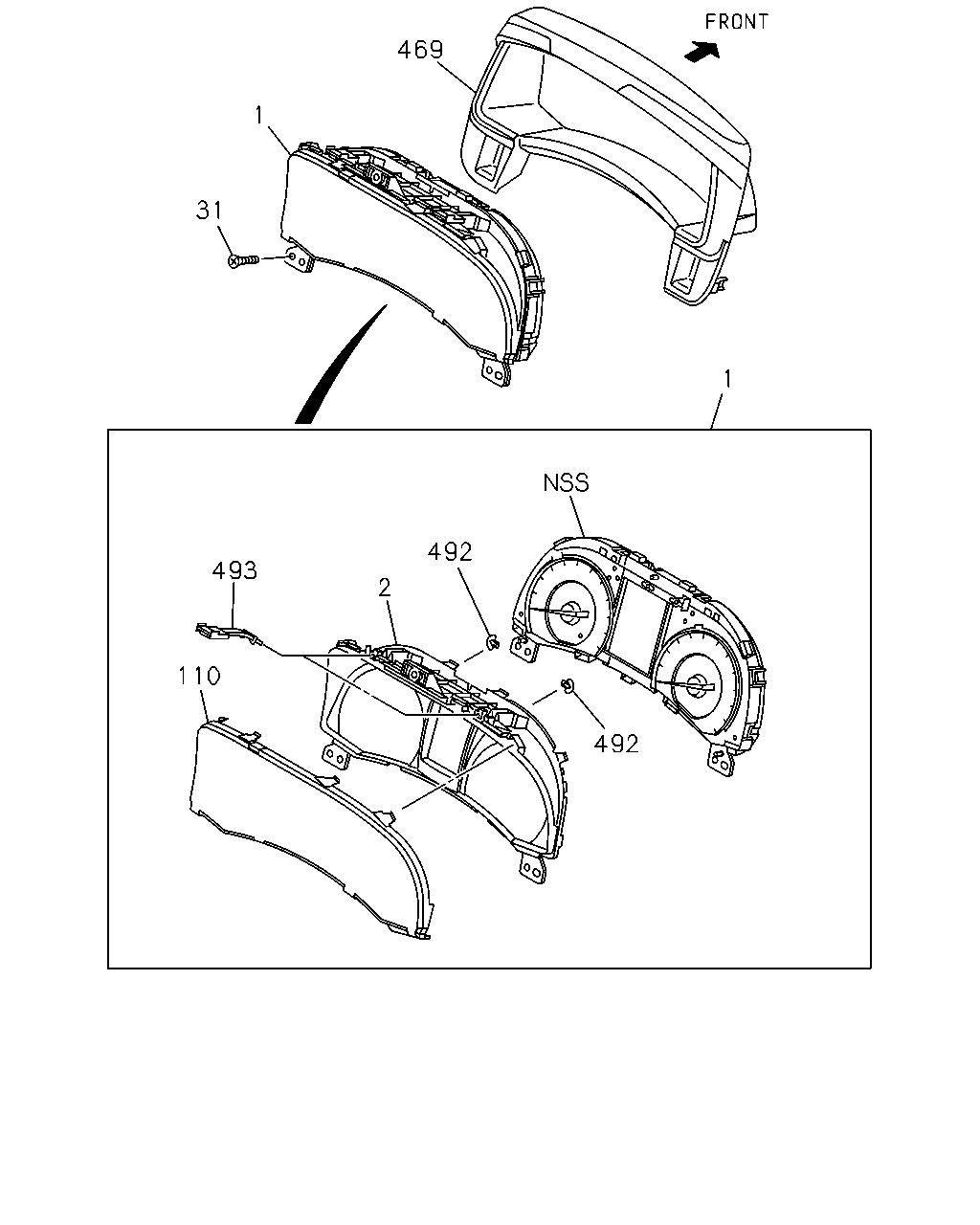

çizim 426639
469 1 31 1 492 2 493 110 492
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
M/T MUX 5 SPEED 5S(MZJ) 		8-98103-776-8 01 1 1406- ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98103-776-8 01 1 1406- ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) 		8-98185-145-4 01 1 1406- ● ●
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98185-145-4 01 1 1406- ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98209-597-0 01 1 1406- ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98209-600-0 01 1 1406- ● ● ●
2 09.735 PANEL; CLUSTER
M/T MUX 5 SPEED 5S(MZJ) 		8-98163-885-0 01 1 1406- ●
2 09.735 PANEL; CLUSTER 8-98163-885-0 01 1 1406- ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98163-885-0 01 1 1406- ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-884-0 01 1 1406- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1406- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
M/T MUX 5 SPEED 5S(MZJ) 		8-98163-883-0 01 1 1406- ●
110 09.748 GLASS; CLUSTER METER 8-98163-883-0 01 1 1406- ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98163-883-0 01 1 1406- ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-882-0 01 1 1406- ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1406- ● ● ● ● ● ●
492 09.743 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-886-0 02 1 1406- ● ● ●
493 09.743 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98163-887-0 02 1 1406- ● ● ●
