8-10 — WIRING HARNESS AND FUSE (#141314) — 184 parça

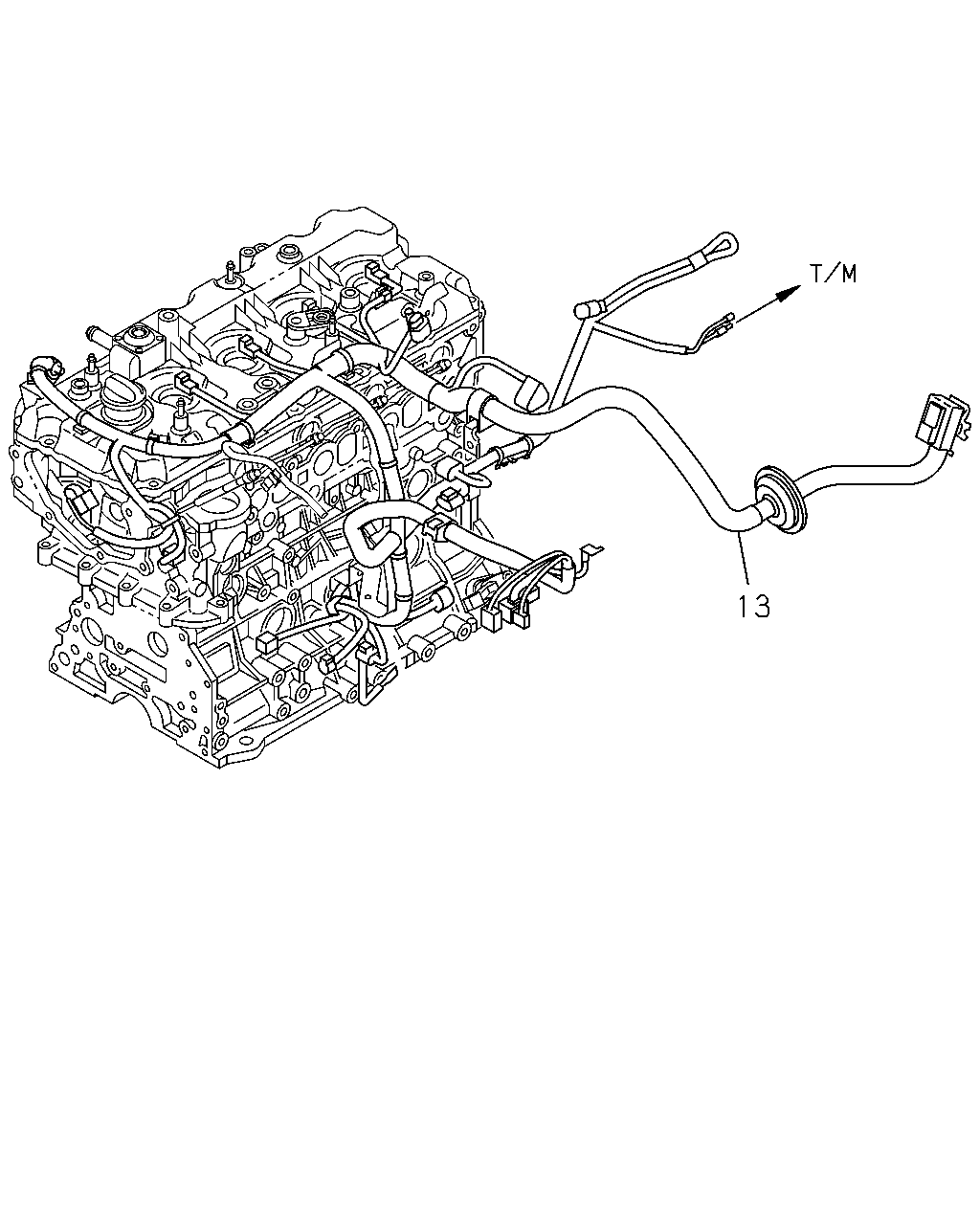

çizim 426355
13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98240-686-2 01 1 1406- ● ● ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98240-688-2 01 1 1406- ● ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98260-520-0 01 1 1406- ● ● ●
13 02.525 HARNESS; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98260-519-0 01 1 1406- ● ● ●
çizim 426488
4 734 750 749 751
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1406- ● ● ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ● ● ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ● ● ● ●
751 02.694 RELAY; DEAD LOCK
AUTO DOOR LOCK<AU4> 02.485 12V YAZAKI 		8-97309-292-0 01 1 1406-1408 ● ● ● ● ● ●
751 02.694 RELAY; DEAD LOCK
02.485 12V YAZAKI 		8-97309-292-0 01 1 1409- ● ● ● ● ● ●

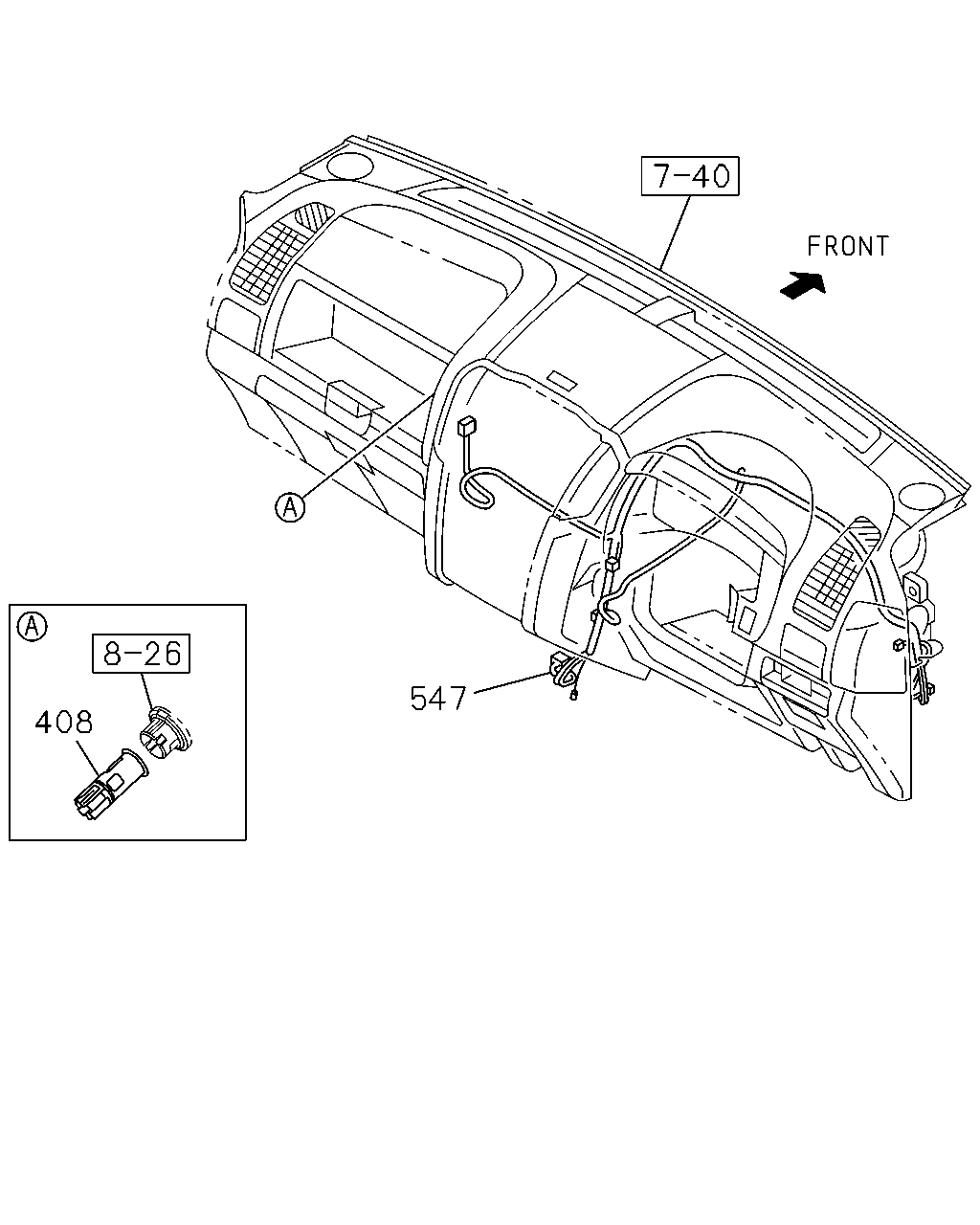

çizim 426592
547 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1406- ● ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-336-4 01 1 1406- ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-335-4 01 1 1406- ● ●
547 02.480 HARNESS; CABLE,SRS 8-98212-268-2 01 1 1406- ●

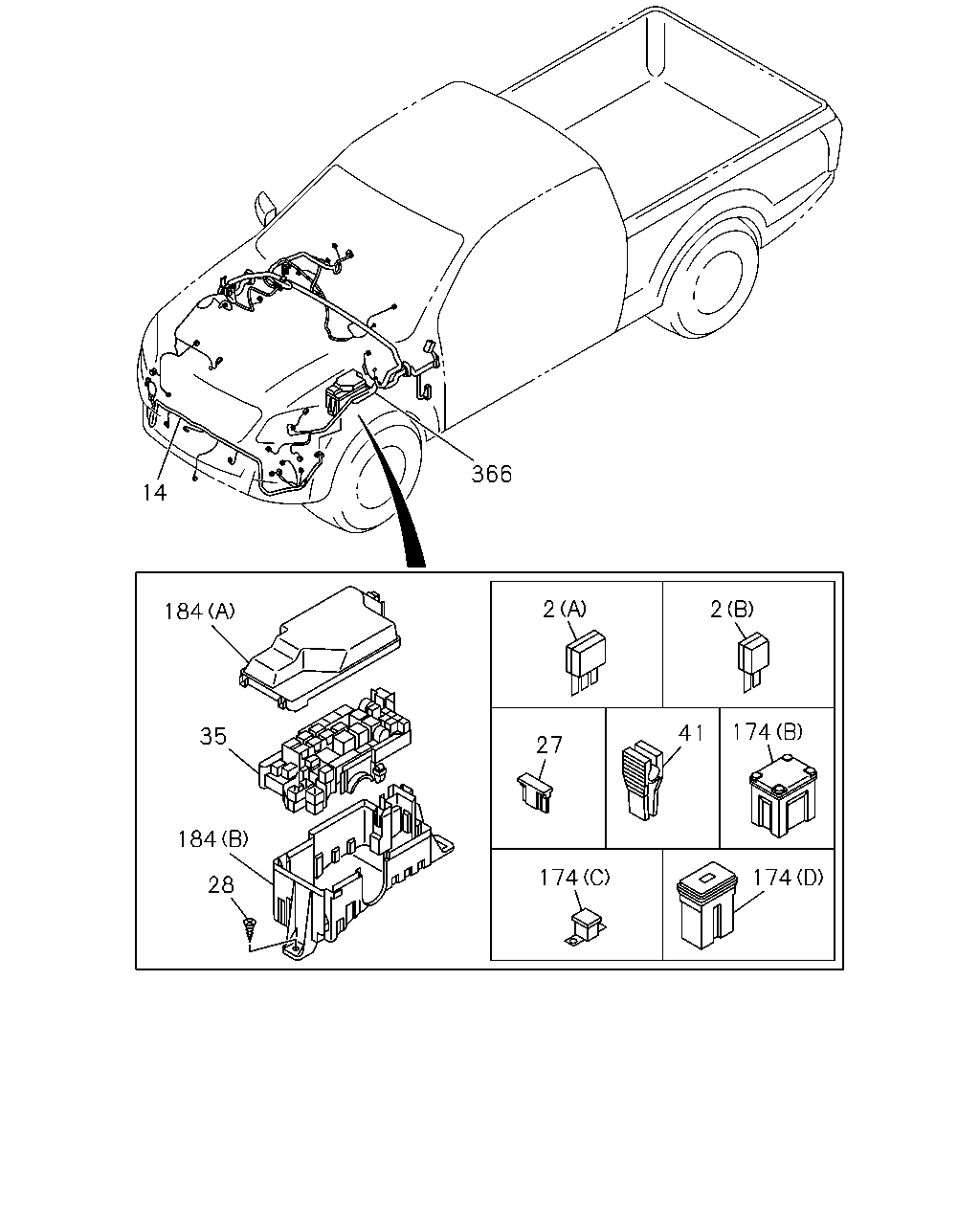

çizim 426608
366 184 14 35 184 28 2 2 27 41 174 174 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1406- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1406- ● ● ● ● ● ●
14 02.727 HARNESS; HEADLAMP 8-98159-338-1 01 1 1406- ● ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-338-1 01 1 1406- ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-348-1 01 1 1406- ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1406- ● ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98159-346-1 01 1 1406- ● ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1406- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1406- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1406- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
M/T MUX 5 SPEED 5S(MZJ) 		8-97249-192-0 02 1 1406- ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1406- ● ●
28 02.483 SCREW; FUSE BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-97249-192-0 02 1 1406- ● ● ●
35 02.530 BOX; RELAY & FUSE
M/T MUX 5 SPEED 5S(MZJ) 		8-98113-097-0 01 1 1406- ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1406- ● ●
35 02.530 BOX; RELAY & FUSE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98113-097-0 01 1 1406- ● ● ●
41 08.821 PULLER; FUSE
M/T MUX 5 SPEED 5S(MZJ) 		8-98054-260-0 01 1 1406- ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1406- ● ●
41 08.821 PULLER; FUSE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98054-260-0 01 1 1406- ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1406-1406 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 02 1 1407- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1406-1406 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 01 1 1407- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98113-098-0 01 1 1406- ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1406- ● ●
184 02.559 COVER; RELAY & FUSE BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98113-098-0 01 1 1406- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98113-099-0 01 1 1406- ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1406- ● ●
184 02.559 COVER; RELAY & FUSE BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98113-099-0 01 1 1406- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-915-6 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-916-6 01 1 1406- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98188-420-7 01 1 1406- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98188-420-7 01 1 1406- ●

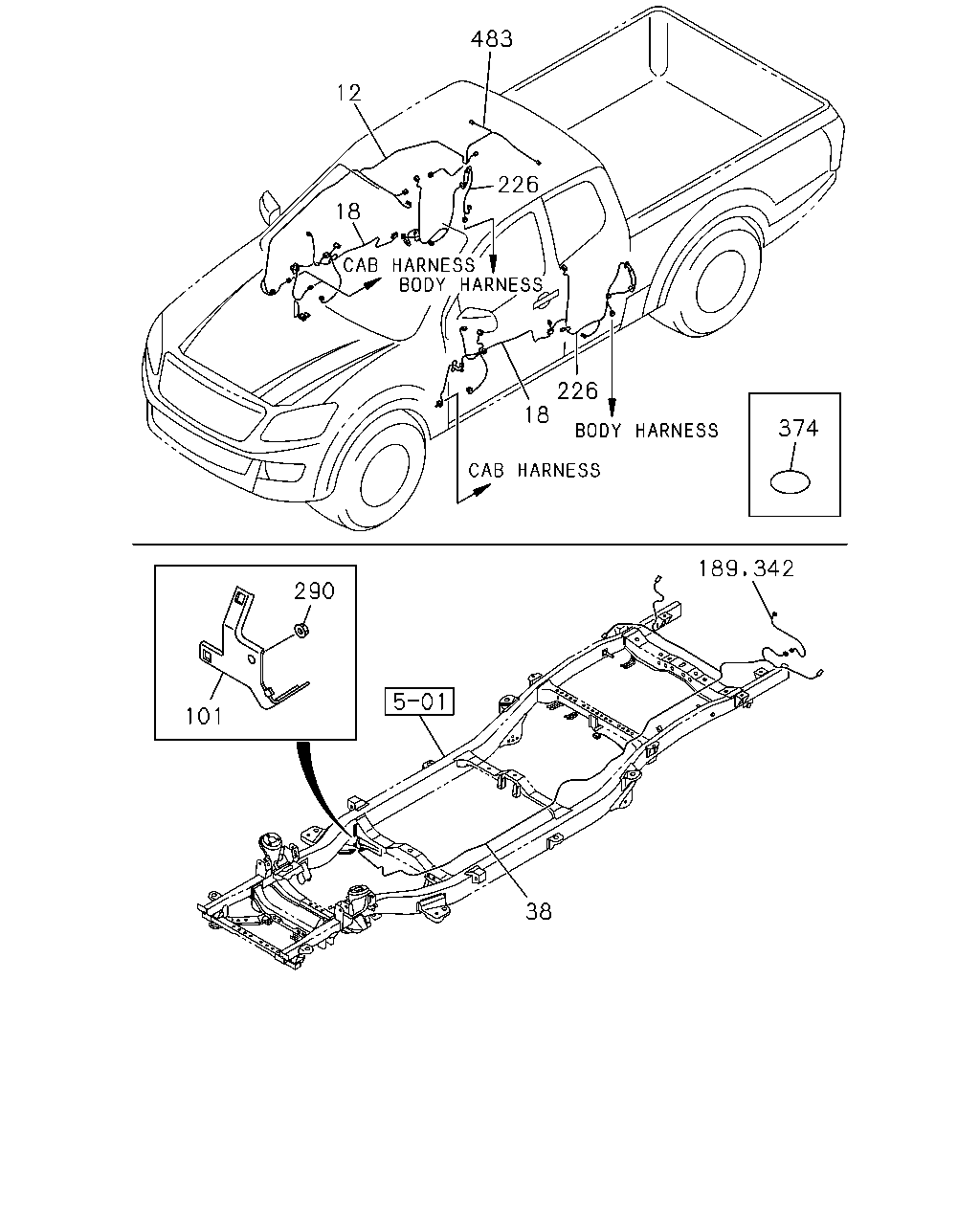

çizim 426610
12 483 18 226 226 18 290 101 38 189 342 374
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-482-5 01 1 1406- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1406- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1406- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUS TOM<U87> 		8-98159-481-4 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1406- ●
12 02.480 HARNESS; ROOF
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98272-274-1 01 1 1406- ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98272-274-1 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98272-274-1 01 1 1406- ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1406- ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEA KER SYSTEM CUSTOM<U87> 		8-98159-480-4 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1406- ●
12 02.480 HARNESS; ROOF 8-98159-333-4 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> 		8-98209-920-2 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUS TOM<U87> 		8-98215-023-1 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> 		8-98209-919-2 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98215-022-1 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1406- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98159-483-4 01 1 1406- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1406- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98209-918-2 01 1 1406- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98215-021-1 01 1 1406- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98209-917-2 01 1 1406- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98215-020-1 01 1 1406- ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98230-581-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98230-581-1 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> 		8-98233-639-0 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98159-487-4 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98159-487-4 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98164-851-3 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98164-851-3 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> 		8-98159-489-3 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98159-521-2 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1406- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1406- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-324-2 01 1 1406- ● ● ●
38 02.480 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) HIGH RIDE SUSPENSION(7YC) 		8-98209-207-3 01 1 1406- ●
38 02.480 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-207-3 01 1 1406- ● ●
38 02.480 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98159-325-2 01 1 1406- ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1406- ● ● ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1406- ● ● ● ● ● ●
226 02.480 HARNESS; RR DOOR 8-98159-355-6 01 1 1406- ● ●
226 02.480 HARNESS; RR DOOR 8-98167-613-6 01 1 1406- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98159-527-3 01 1 1406- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98159-528-3 01 1 1406- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98159-525-3 01 1 1406- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98159-526-3 01 1 1406- ● ●
290 02.483 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1406- ● ● ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98137-579-2 01 1 1406- ● ● ● ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1406- ● ●
483 02.480 HARNESS; EXT,RADIO
EXC. HEADER CONSOLE<DK6> 		8-98129-592-2 01 1 1406- ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 		8-98165-202-2 01 1 1406- ● ● ●

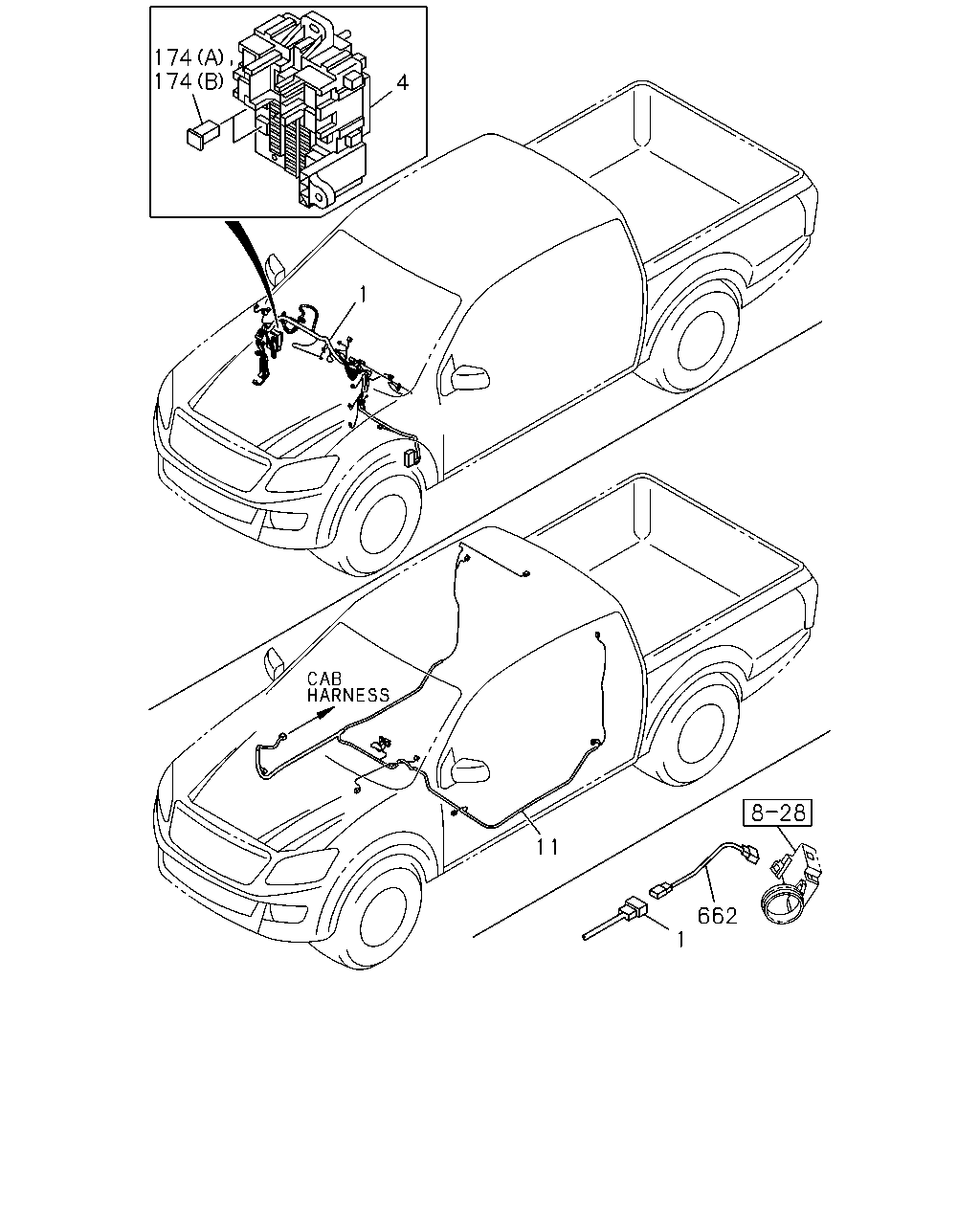

çizim 426624
174 174 4 1 11 1 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98272-277-1 01 1 1406- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98272-275-1 01 1 1406- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> 		8-98272-276-1 01 1 1406- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-169-3 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98160-460-7 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98240-081-1 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98160-455-7 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98209-170-3 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98160-465-7 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98240-082-1 01 1 1406- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98160-462-7 01 1 1406- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1406- ● ● ● ● ● ●
11 02.480 HARNESS; BODY 8-98160-567-7 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98160-567-7 01 1 1406- ●
11 02.480 HARNESS; BODY 8-98160-559-6 01 1 1406- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98257-491-1 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98160-626-8 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98257-490-1 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98160-596-8 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUTO DOOR LOCK<AU4> 		8-98160-613-8 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-181-4 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-193-7 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98237-621-2 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-190-7 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98237-619-2 01 1 1406- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUTO DOOR LOCK<AU4> 		8-98237-620-2 01 1 1406- ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1406- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1406-1406 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 02 1 1407- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1406-1406 ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 01 1 1407- ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER 8-98163-074-0 01 1 1406- ● ● ● ● ● ●
çizim 426652
366 736 738 739 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98188-421-7 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-915-6 01 1 1406- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-916-6 01 1 1406- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 		8-98188-420-7 01 1 1406- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98188-420-7 01 1 1406- ●
736 02.694 RELAY; STARTER CUT
M/T MUX 5 SPEED 5S(MZJ) 02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ● ●
736 02.694 RELAY; STARTER CUT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ● ● ●
737 02.694 RELAY; DIMMER
M/T MUX 5 SPEED 5S(MZJ) 02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ● ●
737 02.694 RELAY; DIMMER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 02.485 12V YAZAKI 		8-97309-292-0 01 1 1406- ● ● ●
738 02.694 RELAY; HEADLAMP
M/T MUX 5 SPEED 5S(MZJ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ●
738 02.694 RELAY; HEADLAMP
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ●
739 02.694 RELAY; TAIL LAMP
M/T MUX 5 SPEED 5S(MZJ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ●
739 02.694 RELAY; TAIL LAMP
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ●
741 02.694 RELAY; HORN
M/T MUX 5 SPEED 5S(MZJ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ●
741 02.694 RELAY; HORN
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ●
742 02.694 RELAY; THERMO
M/T MUX 5 SPEED 5S(MZJ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ●
742 02.694 RELAY; THERMO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
M/T MUX 5 SPEED 5S(MZJ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ●
743 02.694 RELAY; A/C COMPRESSOR
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1406- ● ● ●
745 02.694 RELAY; HEATER
M/T MUX 5 SPEED 5S(MZJ) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ●
745 02.694 RELAY; HEATER
03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ● ●
745 02.694 RELAY; HEATER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ● ● ●
746 02.694 RELAY; ECM,MAIN
M/T MUX 5 SPEED 5S(MZJ) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ● ●
746 02.694 RELAY; ECM,MAIN
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1406- ● ● ●
747 02.694 RELAY; GLOW
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ● ●
747 02.694 RELAY; GLOW
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ● ● ●
748 02.694 RELAY; STARTER
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ● ●
748 02.694 RELAY; STARTER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 02.100 12V YAZAKI 		8-98146-837-0 01 1 1406- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
