8-03 — LAMP; REAR AND REAR SIDE (#141312) — 93 parça

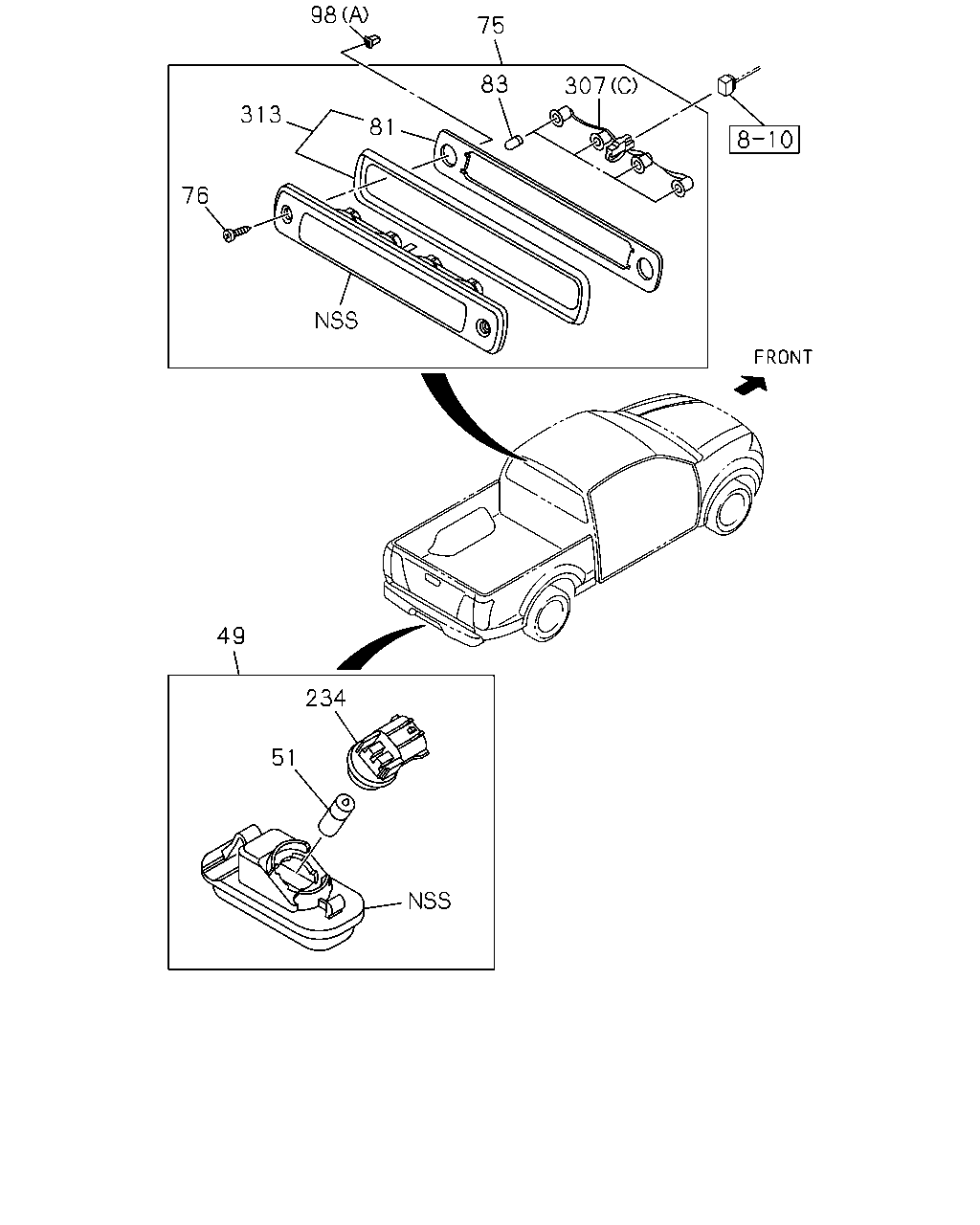

98 313 76 81 83 75 307 49 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	02.700 LAMP; LICENSE PLATE	8-98224-482-0	02	1	1406-	●	●	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP 12V 5W	8-94124-595-0	02	1	1406-	●	●	●	●	●	●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED	8-98255-655-2	01	1	1406-	●	●	●	●	●	●
76	02.688 SCREW; STOP LAMP,HIGHMOUNTED	8-98193-901-0	02	1	1406-	●	●	●	●	●	●
81	02.694 GASKET; STOP LAMP	8-98257-962-0	01	1	1406-	●	●	●	●	●	●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED 12V 5W	8-98193-898-0	04	1	1406-	●	●	●	●	●	●
98	02.708 WASHER REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16	8-94427-941-0	04	1	1406-	●	●	●	●	●	●
98	02.708 WASHER 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1406-	●	●	●	●	●	●
234	02.596 SOCKET ASM; LICENSE PLATE LAMP	1-82119-148-0	02	1	1406-	●	●	●	●	●	●
307	02.727 CORD ASM; LAMP (C)	8-98193-900-0	01	1	1406-	●	●	●	●	●	●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1406-	●	●			●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1406-	●	●			●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1406-			●	●		●
313	02.708 RUBBER & GASKET 16.165	8-98250-208-0	01	1	1406-	●	●	●	●	●	●

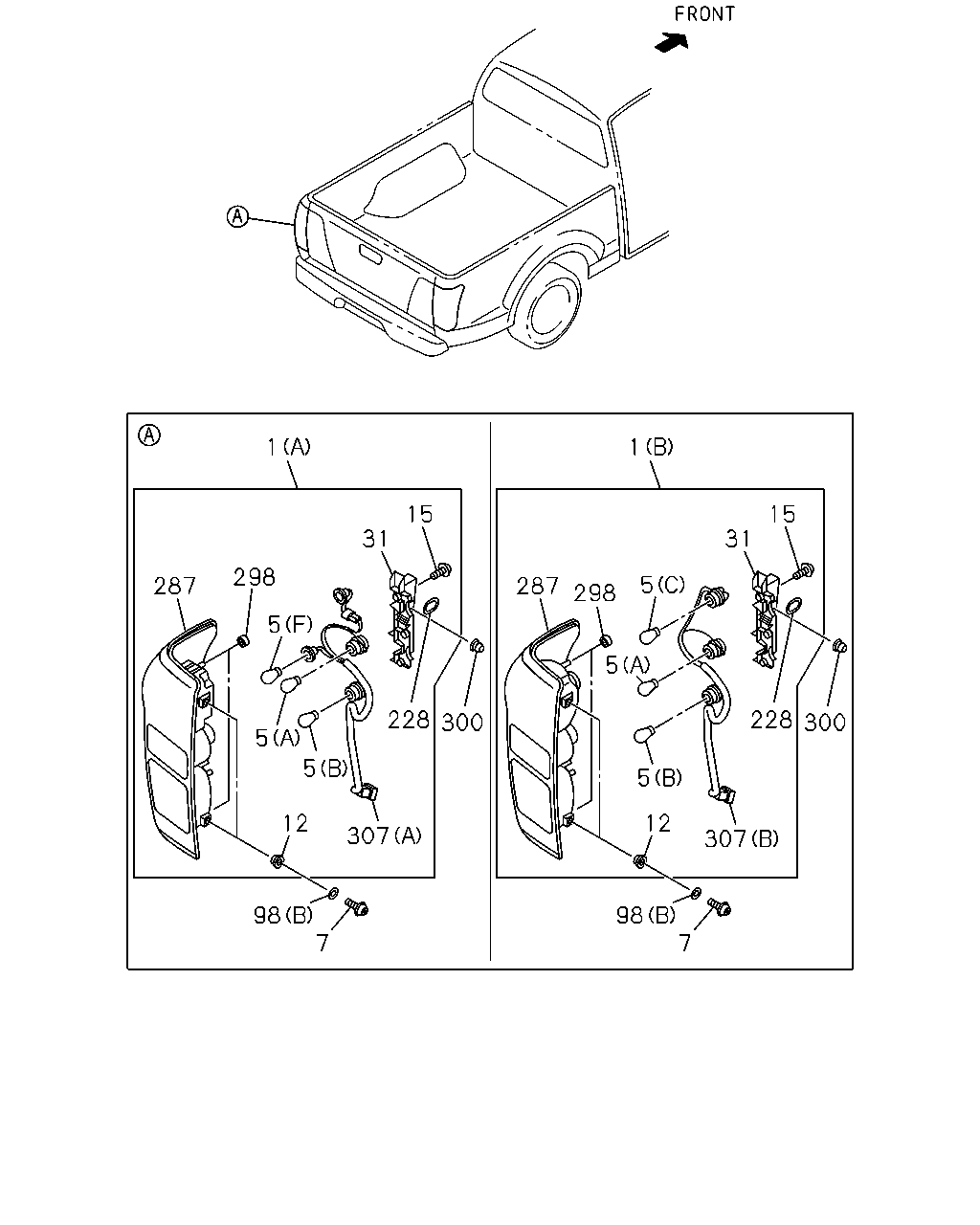

1 31 15 298 287 5 5 5 12 307 98 7 228 300 287 298 1 5 5 5 12 307 98 7 228 300 31 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1406-	●	●			●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1406-	●	●			●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1406-	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1406-	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-092-2	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-093-2	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-	●	●			●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-	●	●			●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-			●	●		●
7	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	1406-	●	●	●	●	●	●
12	02.664 GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1406-	●	●	●	●	●	●
12	02.664 GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1406-	●	●	●	●	●	●
31	02.664 BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-892-0	01	1	1406-	●	●	●	●	●	●
31	02.664 BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-893-0	01	1	1406-	●	●	●	●	●	●
98	02.708 WASHER REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16	8-94427-941-0	04	1	1406-	●	●	●	●	●	●
98	02.708 WASHER 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1406-	●	●	●	●	●	●
228	02.689 CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1406-	●	●	●	●	●	●
228	02.689 CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1406-	●	●	●	●	●	●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-706-0	01	1	1406-	●	●			●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-706-0	01	1	1406-			●	●		●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-707-0	01	1	1406-	●	●			●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-707-0	01	1	1406-			●	●		●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-556-0	01	1	1406-			●	●		●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-557-0	01	1	1406-			●	●		●
298	02.727 CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1406-	●	●	●	●	●	●
298	02.727 CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1406-	●	●	●	●	●	●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97372-854-0	02	1	1406-	●	●	●	●	●	●
307	02.727 CORD ASM; LAMP (C)	8-98193-900-0	01	1	1406-	●	●	●	●	●	●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98250-079-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1406-	●	●			●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1406-	●	●			●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1406-			●	●		●
307	02.727 CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1406-			●	●		●

1 5 5 15 6 3 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1406-	●	●			●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1406-	●	●			●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1406-	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1406-	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-092-2	01	1	1406-			●	●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98233-093-2	01	1	1406-			●	●		●
3	02.684 GASKET; RR COMB LAMP REAR BODY DELETE(8HH) 02.689	5-82236-001-0	01	1	1406-	●	●	●	●	●	●
3	02.684 GASKET; RR COMB LAMP REAR BODY DELETE(8HH) 02.689	5-82236-002-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1406-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-	●	●			●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-	●	●			●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-			●	●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1406-			●	●		●
6	02.682 LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-001-0	01	1	1406-	●	●	●	●	●	●
6	02.682 LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-002-0	01	1	1406-	●	●	●	●	●	●
9	02.689 NUT; LAMP,RR COMB REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1406-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1406-	●	●	●	●	●	●
