◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#141310) — 35 parça

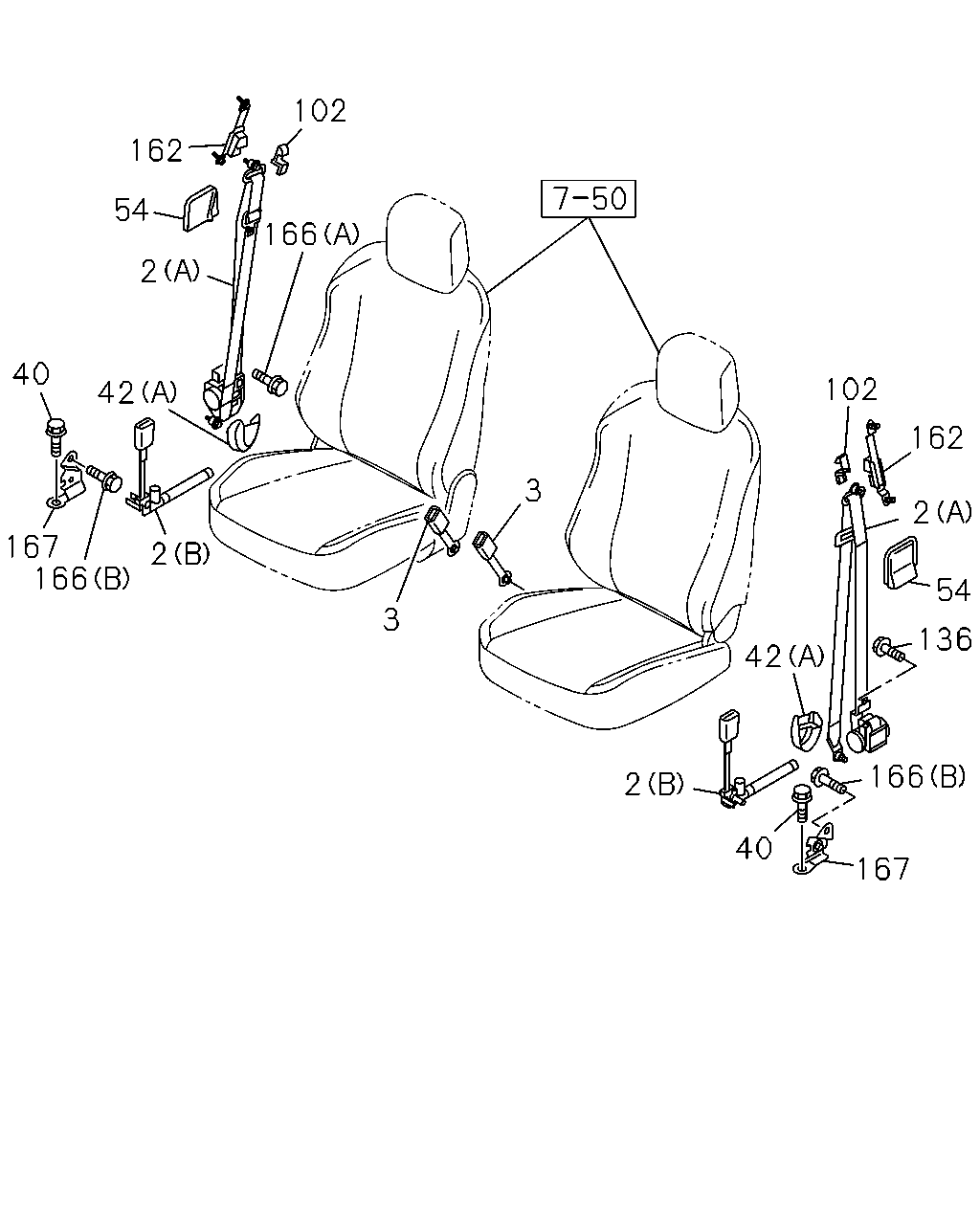

çizim 426603
162 54 2 40 42 167 166 2 166 102 3 3 2 40 167 166 42 136 54 2 162 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97417-402-1 01 1 1406- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97423-662-0 01 1 1406- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-339-1 01 1 1406- ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-333-1 01 1 1406- ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-334-0 01 1 1406- ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-335-0 01 1 1406- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97426-631-0 01 1 1406- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>, SEATTRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97426-631-0 01 1 1406- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-631-0 01 1 1406- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-630-0 01 1 1406- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-630-0 01 1 1406- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK 		8-97425-488-1 01 1 1406- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK 		8-97425-488-1 01 1 1406- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> BLACK 		8-97425-489-1 01 1 1406- ●
40 16.545 BOLT; BRKT,ANCHOR
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1406- ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1406- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1406- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-758-1 01 1 1406- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-760-1 01 1 1406- ● ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1406- ● ● ● ● ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1406- ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1406- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1406- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1406- ●
167 16.714 PLATE; ANCHOR 8-98216-137-2 01 1 1406- ●
167 16.714 PLATE; ANCHOR 8-98216-138-2 01 1 1406- ●

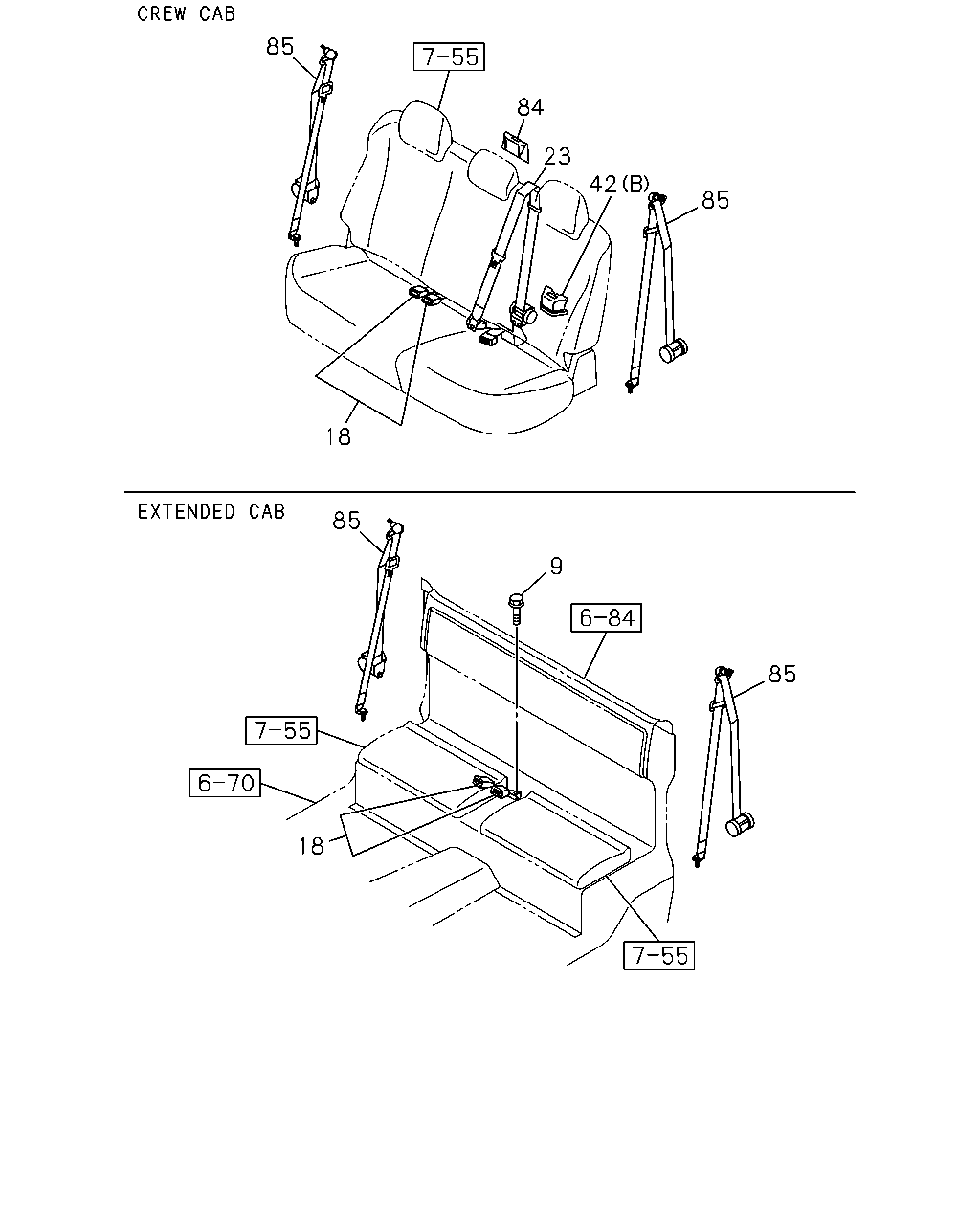

çizim 426604
85 84 23 42 85 9 85 85 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.714 BOLT; SEAT BELT ANCHOR
JUMP SEAT<AJ2> 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 01 1 1406- ●
9 16.714 BOLT; SEAT BELT ANCHOR
JUMP SEAT<AJ2> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 01 1 1406- ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> BLACK 		8-97417-403-3 01 1 1406- ● ●
18 16.714 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1406- ● ●
23 16.714 BELT; SEAT,CENTER
BLACK 		8-97417-406-3 01 1 1406- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1406- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1406- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1406- ● ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97417-407-4 02 1 1406- ● ● ● ●
