Sayfa 7-50 - Isuzu EPC

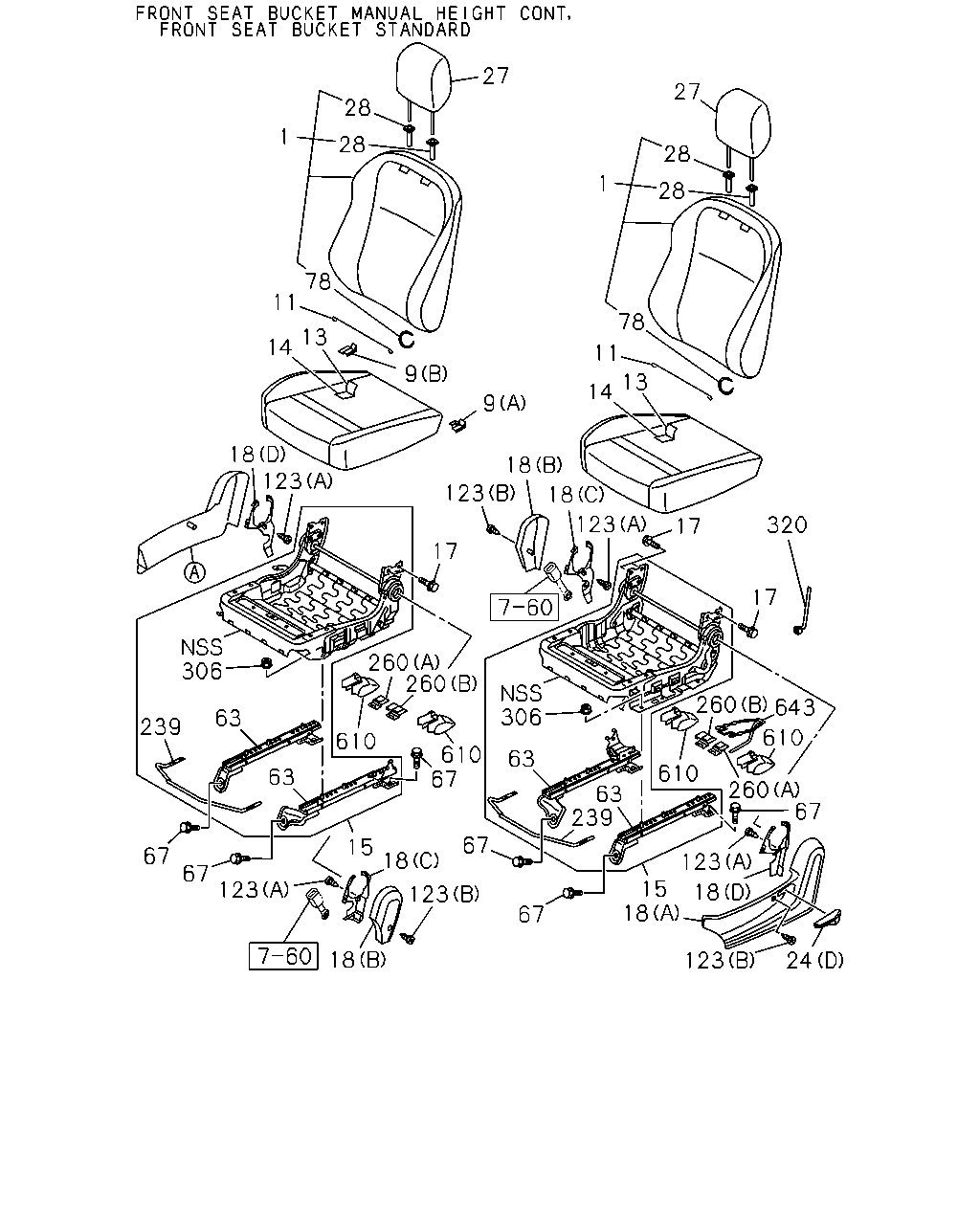

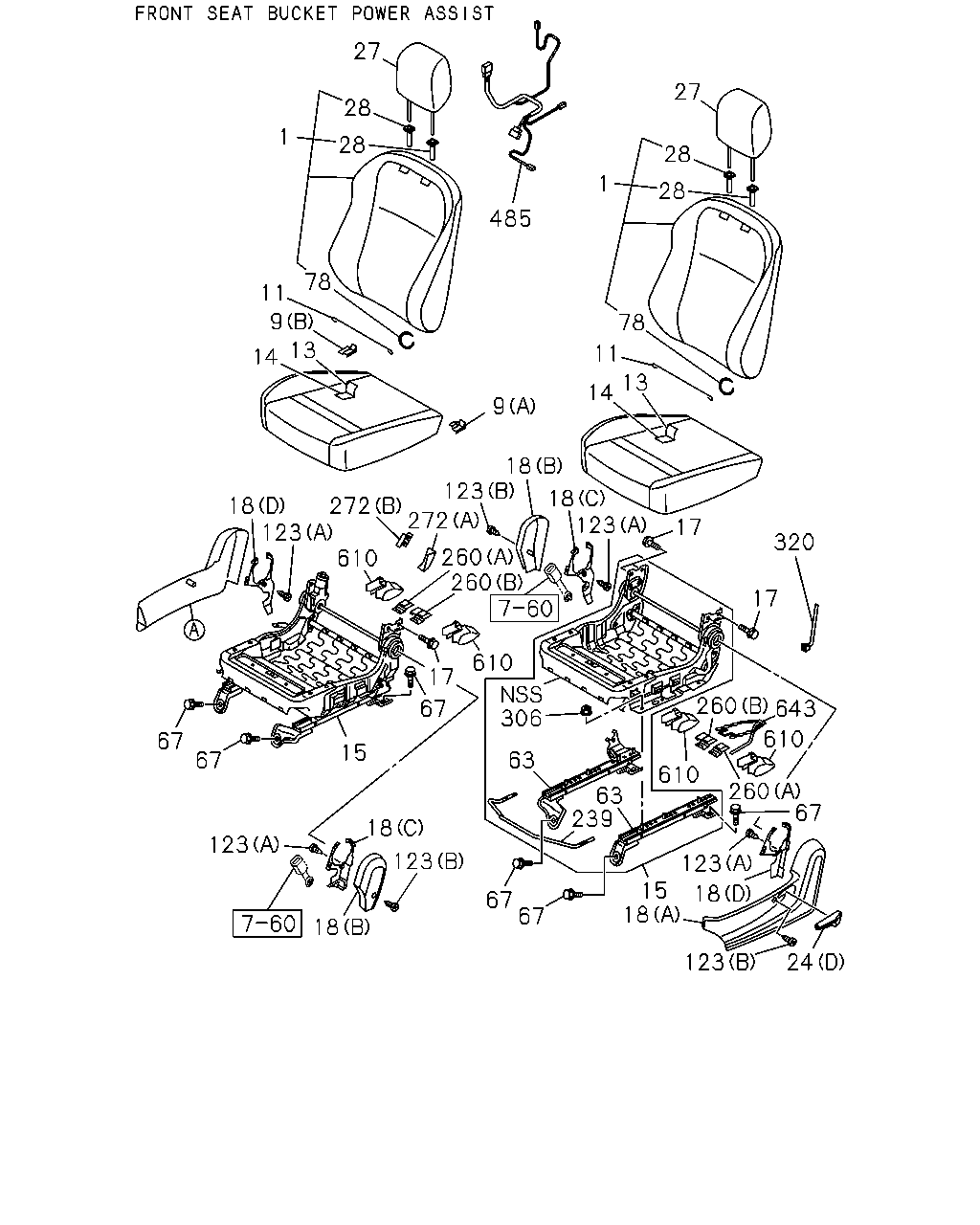

7-50 — FRONT SEAT (#141308) — 277 parça

27 28 28 1 78 11 9 14 13 18 123 272 610 272 123 260 260 610 17 67 15 67 67 123 18 123 18 67 67 18 15 239 63 63 306 123 18 18 9 485 1 27 28 28 78 11 13 14 17 320 17 260 643 610 260 67 610 123 18 123 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-410-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-425-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-540-1	01	1	1406-1409			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-174-0	01	1	1410-			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-526-1	01	1	1406-1409			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-169-0	01	1	1410-			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-901-0	01	1	1406-			●	●		●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-900-0	01	1	1406-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER	8-98273-217-0	01	1	1409-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER	8-98273-219-0	01	1	1409-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER BLACK	8-97424-613-0	01	1	1406-1409			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-208-0	01	1	1410-			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER BLACK	8-97424-615-0	01	1	1406-1409			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-212-0	01	1	1410-			●			●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER BLACK	8-97424-601-0	01	1	1406-1409			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER BLACK	8-97424-604-0	01	1	1406-1409			●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1406-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-094-0	01	1	1406-			●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-094-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-247-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-251-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-650-0	01	1	1406-1409			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-274-0	01	1	1410-			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-623-0	01	1	1406-1409			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-270-0	01	1	1410-			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-149-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97426-615-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-146-0	01	1	1406-			●	●		●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1406-	●	●	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-697-0	01	1	1406-	●	●	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-561-0	01	1	1406-			●			●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1406-			●			●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-702-0	01	1	1406-			●	●		●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1406-			●	●		●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1406-	●	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-715-3	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1406-	●	●			●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1406-			●	●		●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1406-			●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-716-3	01	1	1406-			●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98245-144-0	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98258-762-0	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98245-143-1	01	1	1406-						●
17	16.682 BOLT; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1406-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-045-0	04	1	1406-			●	●		●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-045-0	04	1	1406-			●	●		●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-	●	●			●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1406-			●	●		●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-147-0	02	1	1406-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1406-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-524-0	01	1	1406-1409			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-524-0	01	1	1406-1409			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1406-			●	●		●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1406-	●	●	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1406-	●	●	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 LOCK BLACK	8-97424-665-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 LOCK BLACK	8-97424-665-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 FREE BLACK	8-97424-666-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 FREE BLACK	8-97424-666-0	01	1	1406-			●	●		●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1406-	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-310-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1406-	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-312-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-309-1	01	1	1406-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1406-	●	●			●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1406-			●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98224-313-1	01	1	1406-			●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> OUTER	8-98258-764-0	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> INNER	8-98258-810-0	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) OUTER	8-98245-146-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98245-148-1	01	1	1406-						●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	24	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	15	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1406-			●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1406-			●	●		●
78	16.680 RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) 16.724	8-98220-068-0	18	1	1406-						●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1406-			●			●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1406-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-104-0	01	1	1406-			●	●		●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1406-			●	●		●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	02	1	1406-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1406-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1406-			●	●		●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1406-			●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-216-0	01	1	1410-			●			●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER BLACK	8-97424-617-0	01	1	1406-1409			●			●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-214-0	01	1	1410-			●			●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER BLACK	8-97424-619-0	01	1	1406-1409			●			●
306	16.682 NUT; SEAT ADJ SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1406-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1406-			●	●		●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1406-			●	●		●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1406-	●	●	●	●	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-265-0	01	1	1406-			●			●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1406-	●		●	●		●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1406-	●	●	●	●	●	●

18 24 24 486 601 123 18 24 228 228 24 228 20 24 18 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-	●	●			●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1406-	●	●	●	●	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-598-0	01	1	1406-			●	●		●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1406-			●			●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X10	8-98224-268-0	03	1	1406-			●	●		●
486	16.682 SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-262-0	01	1	1406-			●			●
601	16.682 SCREW; SWITCH SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M4X12	8-98224-269-0	02	1	1406-			●			●

27 28 28 1 78 11 13 14 18 123 306 239 63 63 67 67 123 15 18 123 18 67 67 610 610 260 260 17 123 18 9 9 1 27 28 28 78 11 14 13 17 18 123 306 63 63 239 67 15 18 123 18 123 24 67 260 610 610 643 260 17 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.720 BACK ASM; SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-410-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-425-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-412-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-417-0	01	1	1406-	●	●	●	●	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-540-1	01	1	1406-1409			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-174-0	01	1	1410-			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-526-1	01	1	1406-1409			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-169-0	01	1	1410-			●			●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-901-0	01	1	1406-			●	●		●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-900-0	01	1	1406-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER	8-98273-217-0	01	1	1409-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER	8-98273-219-0	01	1	1409-			●	●		●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER BLACK	8-97424-613-0	01	1	1406-1409			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-208-0	01	1	1410-			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER BLACK	8-97424-615-0	01	1	1406-1409			●			●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-212-0	01	1	1410-			●			●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER BLACK	8-97424-601-0	01	1	1406-1409			●	●		●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER BLACK	8-97424-604-0	01	1	1406-1409			●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	02	1	1406-	●	●	●	●	●	●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-094-0	01	1	1406-			●	●		●
11	16.682 WIRE; SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-094-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-247-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-251-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-157-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-159-0	01	1	1406-	●	●	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-650-0	01	1	1406-1409			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-274-0	01	1	1410-			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-623-0	01	1	1406-1409			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-270-0	01	1	1410-			●			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-149-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97426-615-0	01	1	1406-			●	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-146-0	01	1	1406-			●	●		●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1406-	●	●	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-697-0	01	1	1406-	●	●	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-561-0	01	1	1406-			●			●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1406-			●			●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-702-0	01	1	1406-			●	●		●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1406-			●	●		●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-715-3	01	1	1406-	●	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-715-3	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1406-	●	●			●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-714-3	01	1	1406-			●	●		●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-718-2	01	1	1406-			●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-716-3	01	1	1406-			●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98245-144-0	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98258-762-0	01	1	1406-						●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98245-143-1	01	1	1406-						●
17	16.682 BOLT; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-045-0	08	1	1406-	●	●	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-045-0	04	1	1406-			●	●		●
17	16.682 BOLT; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-045-0	04	1	1406-			●	●		●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1406-	●	●	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-	●	●			●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-097-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-607-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-609-0	01	1	1406-			●			●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1406-			●	●		●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1406-	●	●	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1406-			●			●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1406-			●	●		●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97425-147-0	02	1	1406-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97425-146-0	02	1	1406-	●	●	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-524-0	01	1	1406-1409			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97426-524-0	01	1	1406-1409			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-146-0	01	1	1410-			●			●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1406-			●	●		●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97424-664-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 LOCK BLACK	8-97424-665-0	02	1	1406-	●	●	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.716 FREE BLACK	8-97424-666-0	02	1	1406-	●	●	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 LOCK BLACK	8-97424-665-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 LOCK BLACK	8-97424-665-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 FREE BLACK	8-97424-666-0	01	1	1406-			●	●		●
28	16.718 HOLDER; GUIDE,HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.716 FREE BLACK	8-97424-666-0	01	1	1406-			●	●		●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1406-	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-310-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1406-	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-312-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-309-1	01	1	1406-	●	●	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1406-	●	●			●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-311-1	01	1	1406-			●	●		●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98224-313-1	01	1	1406-			●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> OUTER	8-98258-764-0	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> INNER	8-98258-810-0	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) OUTER	8-98245-146-1	01	1	1406-						●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98245-148-1	01	1	1406-						●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	24	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	15	1	1406-	●	●	●	●	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1406-			●	●		●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1406-			●	●		●
78	16.680 RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) 16.724	8-98220-068-0	18	1	1406-						●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	04	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	06	1	1406-	●	●	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (A) M4X8	8-98220-085-0	02	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1406-			●			●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1406-			●	●		●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	02	1	1406-	●	●	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM>	8-98220-104-0	01	1	1406-			●	●		●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1406-			●	●		●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	02	1	1406-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1406-	●	●	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1406-			●	●		●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98224-267-0	01	1	1406-			●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	14	1	1406-	●	●	●	●	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1406-			●	●		●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1406-			●	●		●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1406-	●	●	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1406-	●		●	●		●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1406-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
