◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

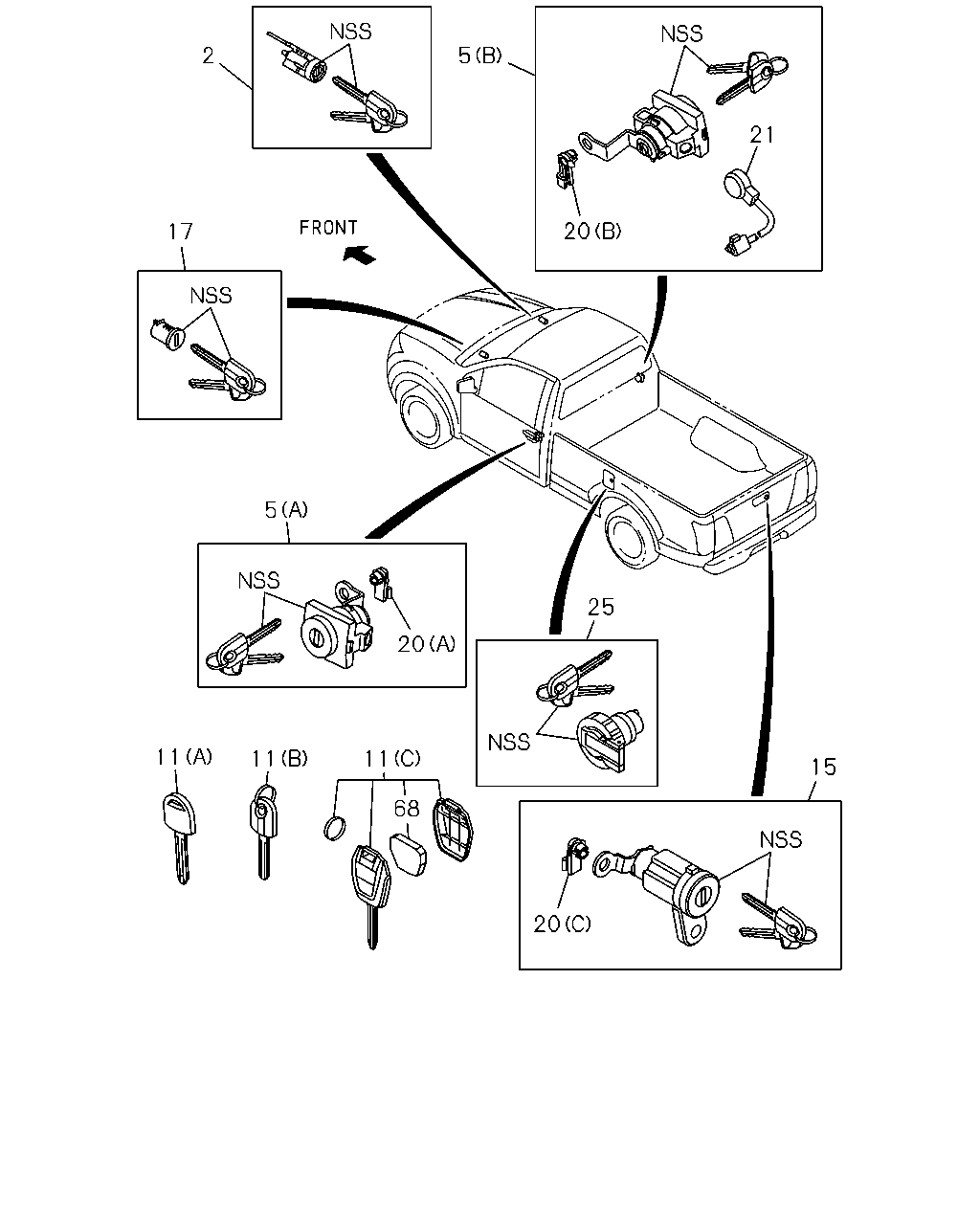

7-30 — LOCK CYLINDER SET (#141303) — 92 parça

2 17 5 11 11 11 68 25 20 20 15 20 21 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1406-1411	●	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-647-0	01	1	1412-	●	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1406-1411	●	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1412-	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-738-0	01	1	1406-1411	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98274-651-0	01	1	1412-	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-737-0	01	1	1406-1411	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98274-650-0	01	1	1412-	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-736-0	01	1	1406-1411	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B)	8-98193-736-0	01	1	1406-1411	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (B)	8-98274-649-0	01	1	1412-	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B)	8-98274-649-0	01	1	1412-	●	●	●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1406-1411	●	●	●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1412-	●	●	●	●	●	●
11	02.187 KEY; BLANK (B) IMMOBILIZER	8-98007-939-1	AR	1	1406-1411	●	●	●	●	●	●
11	02.187 KEY; BLANK (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●	●	●	●	●
11	02.187 KEY; BLANK (A)	8-97350-352-0	AR	1	1406-	●	●	●	●	●	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98193-740-0	01	1	1406-1411			●	●		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-653-0	01	1	1412-			●	●		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1406-1411	●	●	●	●	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99>	8-98274-648-0	01	1	1412-	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1406-	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> (C)	8-97357-958-0	01	1	1406-			●	●		●
20	16.328 SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1406-	●	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-756-0	01	1	1406-	●	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1406-	●	●			●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98060-587-0	01	1	1406-			●	●		●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1406-	●	●	●	●	●	●

1 20 20 20 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

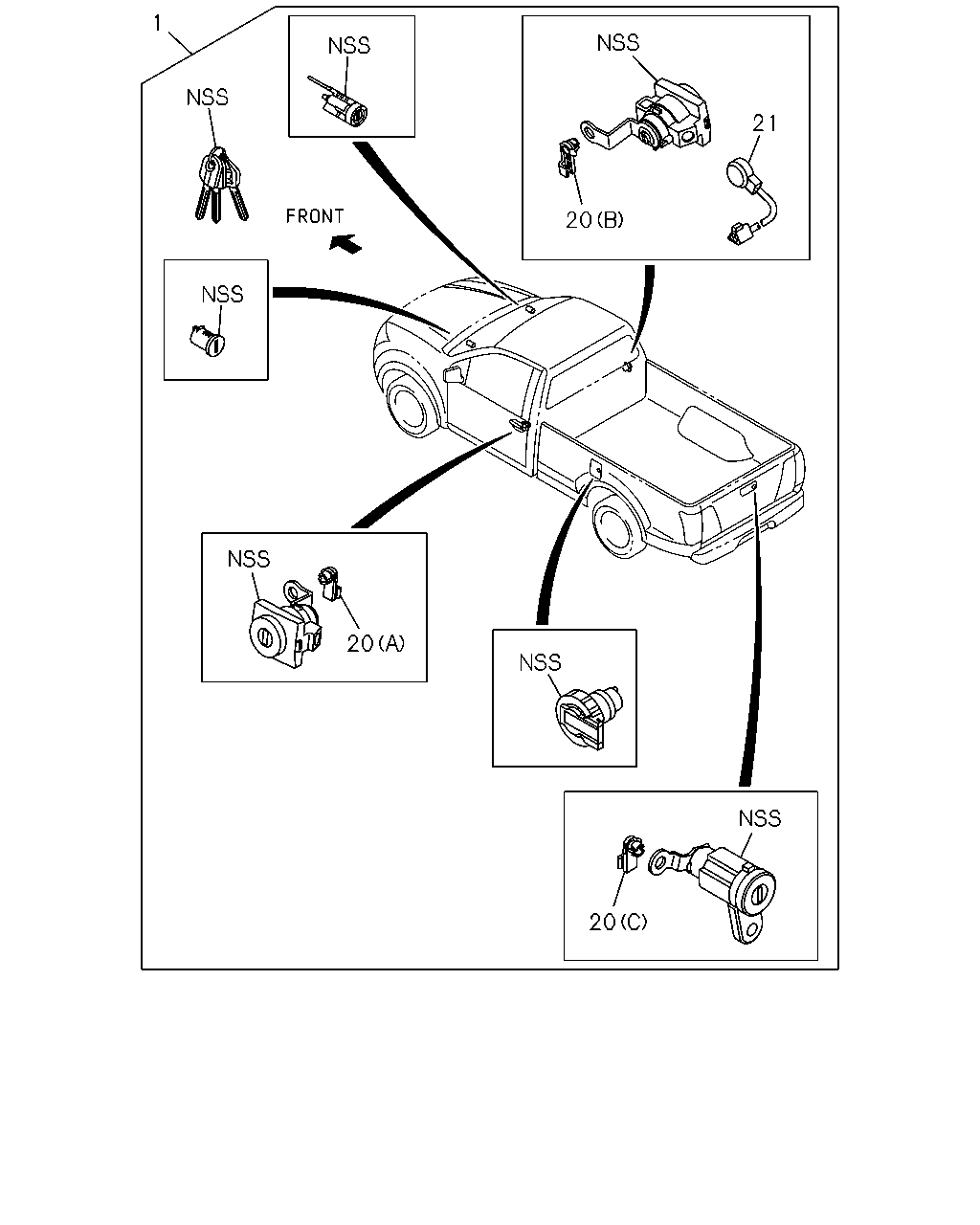

1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05>	8-98185-830-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98185-830-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05>	8-98274-602-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98274-602-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-833-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-833-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-586-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-586-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>	8-98233-154-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98233-154-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>	8-98274-617-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98274-617-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98232-310-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98232-310-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-613-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-613-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98103-087-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98103-087-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-579-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98274-579-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98103-086-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-086-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98274-578-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-578-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98185-846-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98185-846-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98274-605-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98274-605-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98185-847-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98185-847-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-606-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-606-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98103-083-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98103-083-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98274-576-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-082-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-082-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-575-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-575-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>	8-98103-077-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW>	8-98103-077-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>	8-98274-574-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW>	8-98274-574-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98103-076-0	01	1	1406-1411	●	●			●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW>	8-98103-076-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98274-573-0	01	1	1412-	●	●			●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW>	8-98274-573-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-837-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-587-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98233-153-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-616-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98103-088-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98274-580-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98189-438-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-608-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-085-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-577-0	01	1	1412-			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98189-439-0	01	1	1406-1411			●	●		●
1	02.188 CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98274-609-0	01	1	1412-			●	●		●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1406-	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> (C)	8-97357-958-0	01	1	1406-			●	●		●
20	16.328 SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1406-	●	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98162-756-0	01	1	1406-	●	●	●	●	●	●
