7-20 — MIRROR AND MIRROR STAY (#141302) — 22 parça

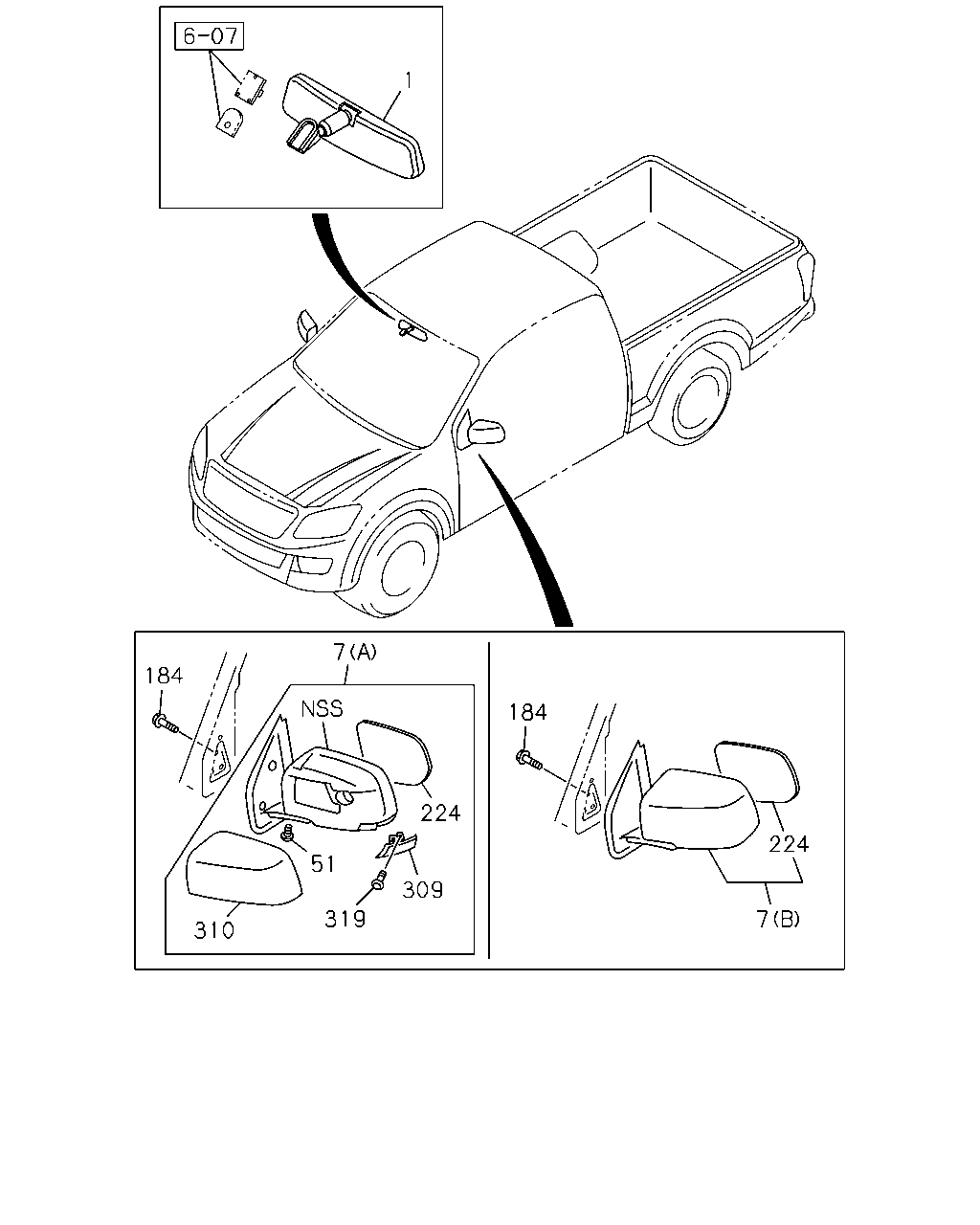

çizim 426684
1 184 7 310 319 309 51 224 184 224 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31> 		8-97237-560-0 01 1 1406- ● ● ● ● ● ●
1 16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98053-645-0 01 1 1406- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B) 		8-98065-317-3 01 1 1406- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B) 		8-98065-318-3 01 1 1406- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) 		8-98065-333-4 01 1 1406- ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) 		8-98065-334-4 01 1 1406- ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) 		8-98193-672-0 01 1 1406- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) 		8-98200-733-0 01 1 1406- ● ● ● ● ● ●
51 16.069 SCREW; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-685-0 01 1 1406- ● ● ● ● ● ●
184 16.069 BOLT; MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> 17.455 M6X14 FLANGE 		8-97247-698-0 06 1 1406- ● ● ●
184 16.069 BOLT; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> 17.455 M6X14 FLANGE 		8-97247-698-0 06 1 1406- ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR<RT9> 		8-98193-669-0 01 1 1406- ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR<RT9> 		8-98193-670-0 01 1 1406- ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-681-0 01 1 1406- ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-682-0 01 1 1406- ● ● ● ● ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-683-0 01 1 1406- ● ● ● ● ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-684-0 01 1 1406- ● ● ● ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-686-0 01 1 1406- ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-687-0 01 1 1406- ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98203-335-0 01 1 1406- ● ● ● ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98203-336-0 01 1 1406- ● ● ● ● ● ●
319 16.069 SCREW; SIDE TURN LAMP
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98193-685-0 01 1 1406- ● ● ● ● ● ●
