◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#141301) — 26 parça

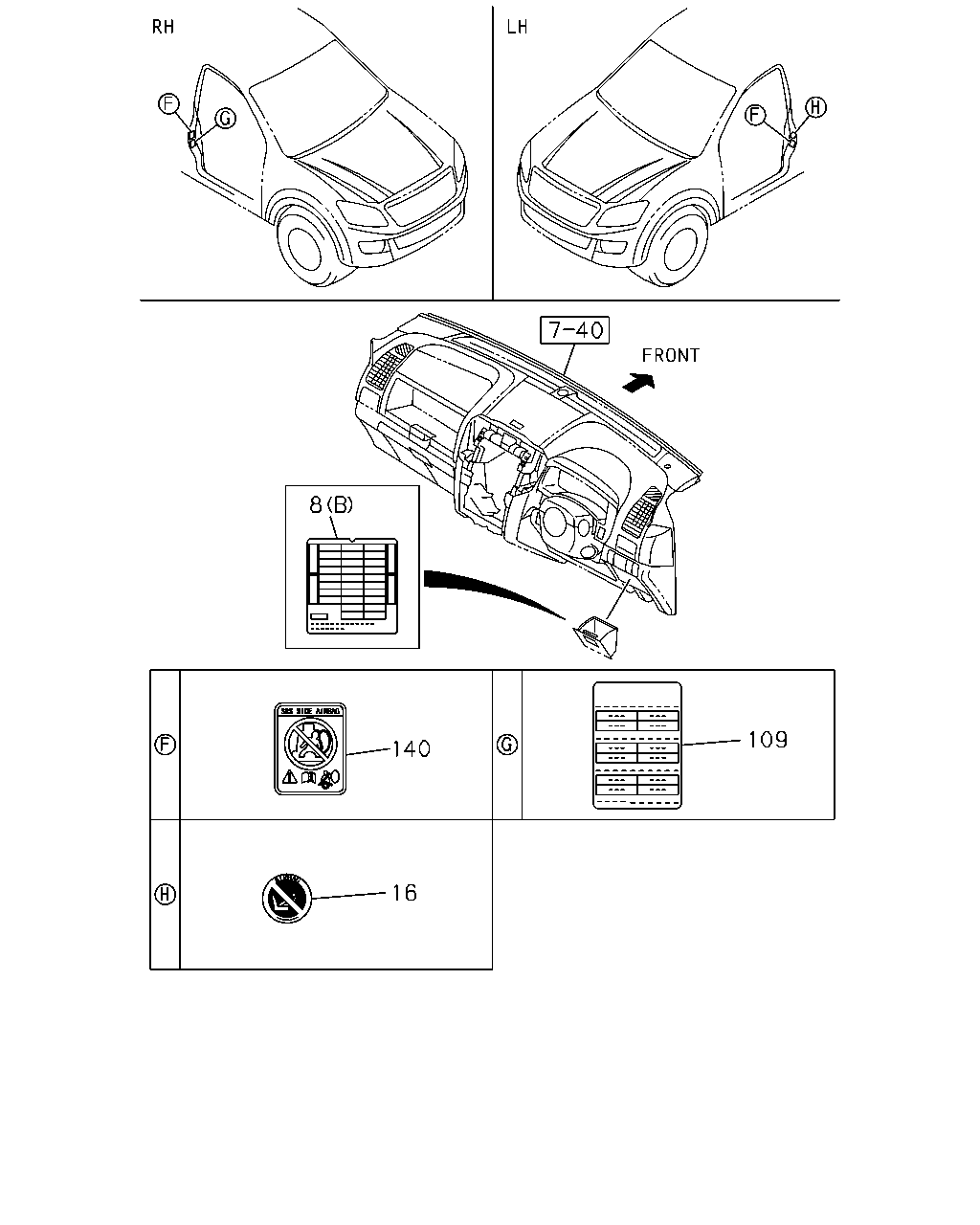

çizim 426360
8 109 140 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 03.680 LABEL; FUSE
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98166-842-3 01 1 1406- ●
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1406- ● ●
8 03.680 LABEL; FUSE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98166-842-3 01 1 1406- ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1406- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1406- ● ● ● ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1406- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1406- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1406- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) 		8-98100-756-0 01 1 1406- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1406- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) 		8-98100-757-0 01 1 1406- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY) 		8-98100-755-1 01 1 1406- ● ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1406- ● ● ● ● ● ●

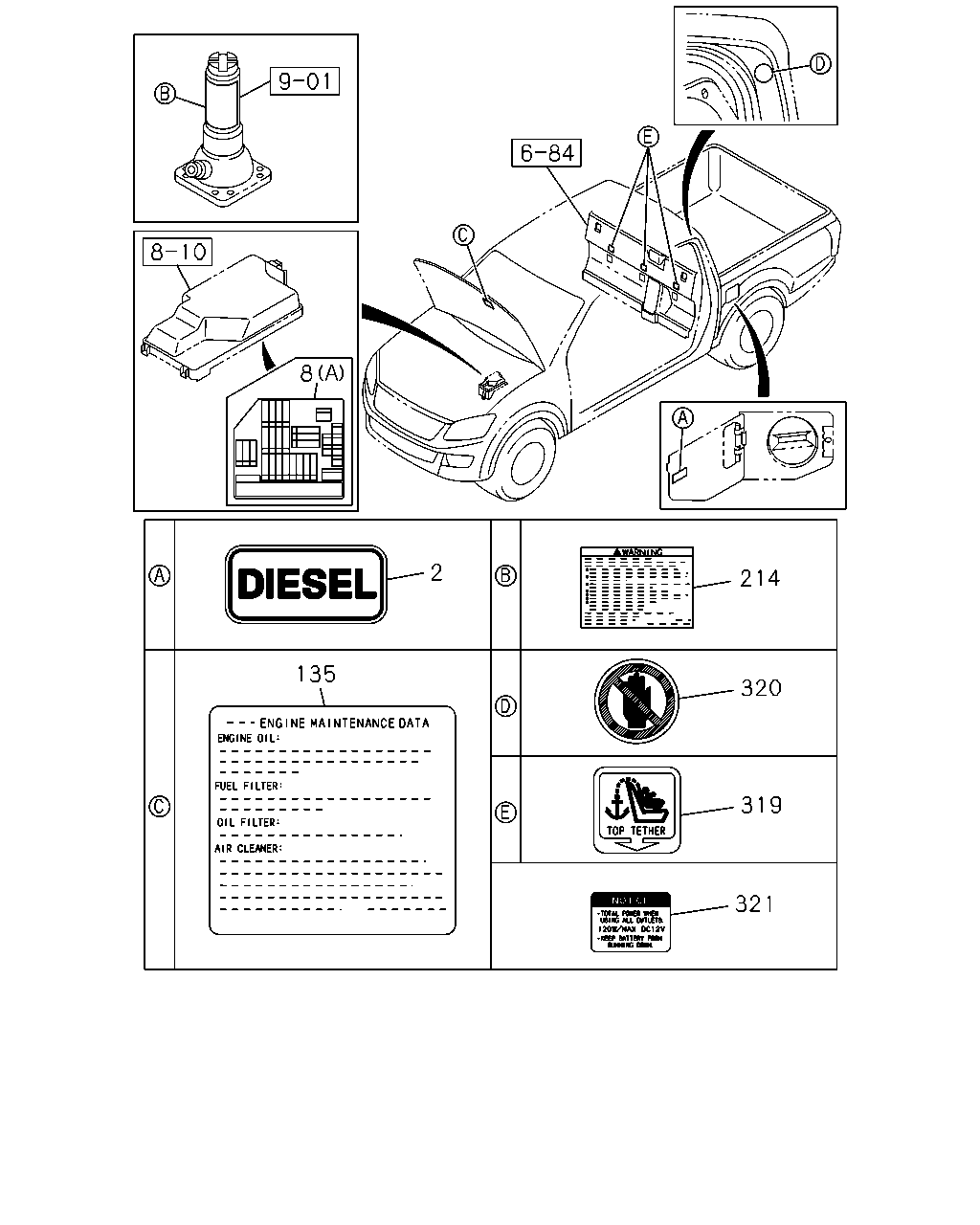

çizim 426371
8 2 214 320 319 321 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1406-1510 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98166-842-3 01 1 1406- ●
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1406- ● ●
8 03.680 LABEL; FUSE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98166-842-3 01 1 1406- ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1406- ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-98200-830-0 01 1 1406-1503 ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-98302-557-0 01 1 1504- ● ● ● ● ● ●
214 08.808 LABEL; JACK 8-98192-980-2 01 1 1406- ● ● ● ● ● ●
319 08.808 LABEL; TOP TETHER 8-98174-417-0 03 1 1406- ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-175-0 01 1 1406-1501 ● ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1502- ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-176-0 01 1 1406-1501 ● ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1406- ● ● ● ● ● ●
