◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#141300) — 12 parça

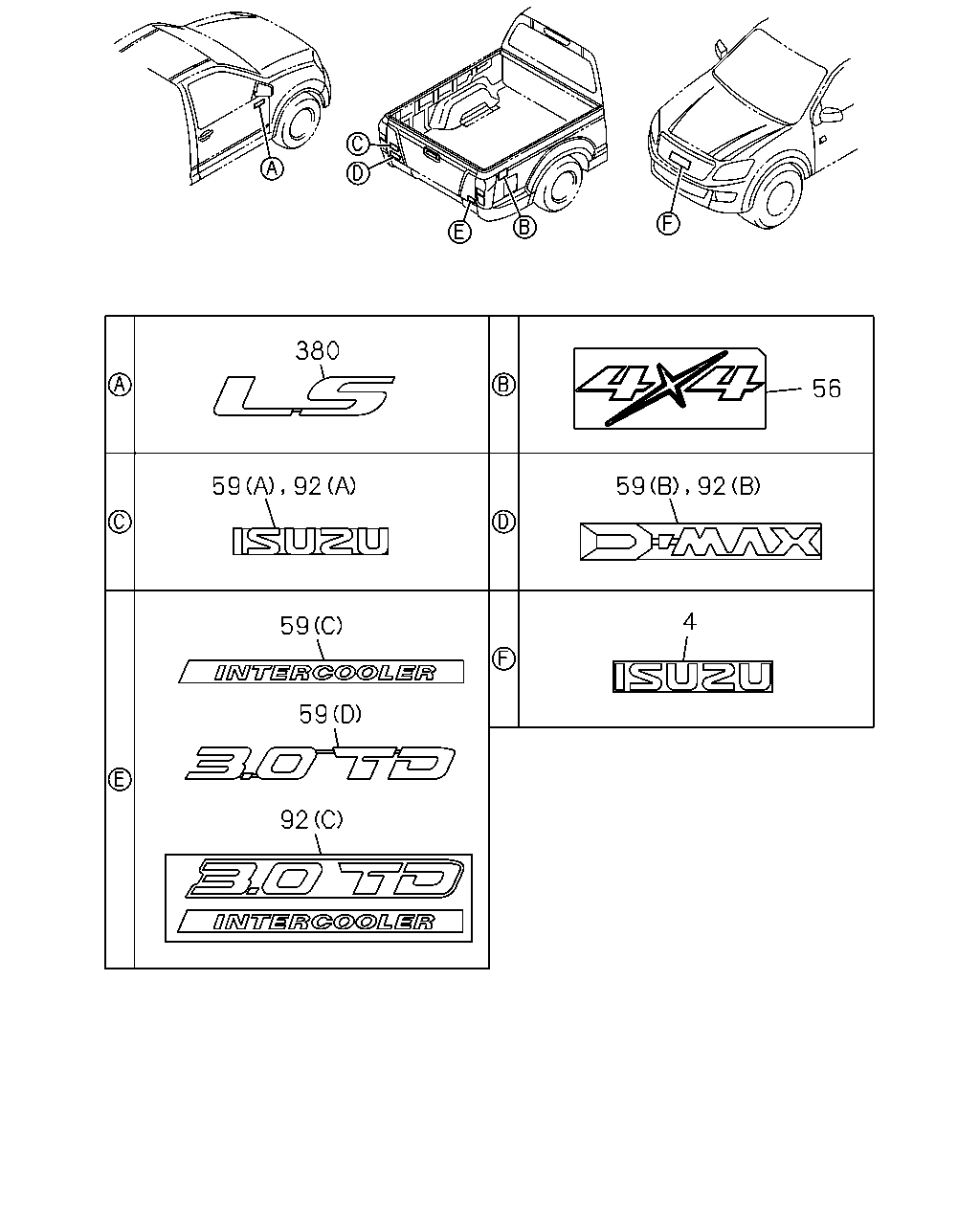

çizim 426428
380 56 92 59 4 92 59 59 59 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 01.303 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1406- ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR V ENETIAN RED MICA(546) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1406- ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR ASH BEIGE MET(541),BODY COLOR FJORD BLUE MET(545) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1406- ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1406- ● ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1406- ● ● ● ●
59 01.303 DECAL; TAIL GATE
INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1406- ● ● ●
59 01.303 DECAL; TAIL GATE
INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-872-0 01 1 1406- ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-871-0 01 1 1406- ● ● ●
92 08.147 DECAL; RR END
INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-871-0 01 1 1406- ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1406- ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1406- ● ●
380 17.215 PLATE; SIDE
INTERIOR CUSTOM(RBD) 		8-98129-894-0 02 1 1406- ● ● ●
