◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#141293) — 10 parça

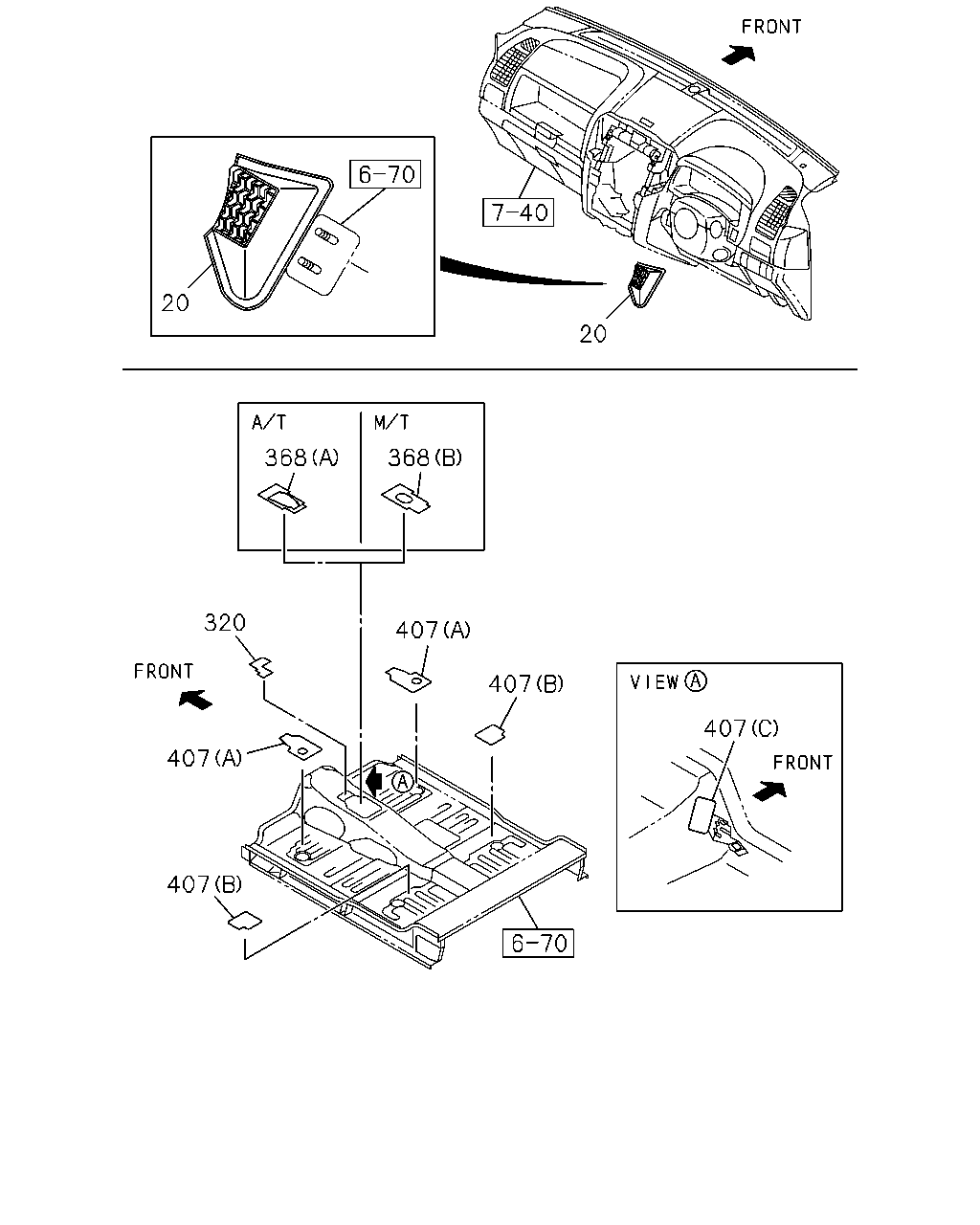

çizim 426347
20 20 368 368 407 407 407 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 16.547 REST; FOOT 8-98064-439-2 01 1 1406- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1406- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1406- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1406- ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1406- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1406- ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1406- ● ●
407 16.850 DEADENER; FLOOR PANEL
(C) 		8-98165-147-0 01 1 1406- ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1406- ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1406- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
