6-75 — MAT AND CARPET (#141292) — 27 parça

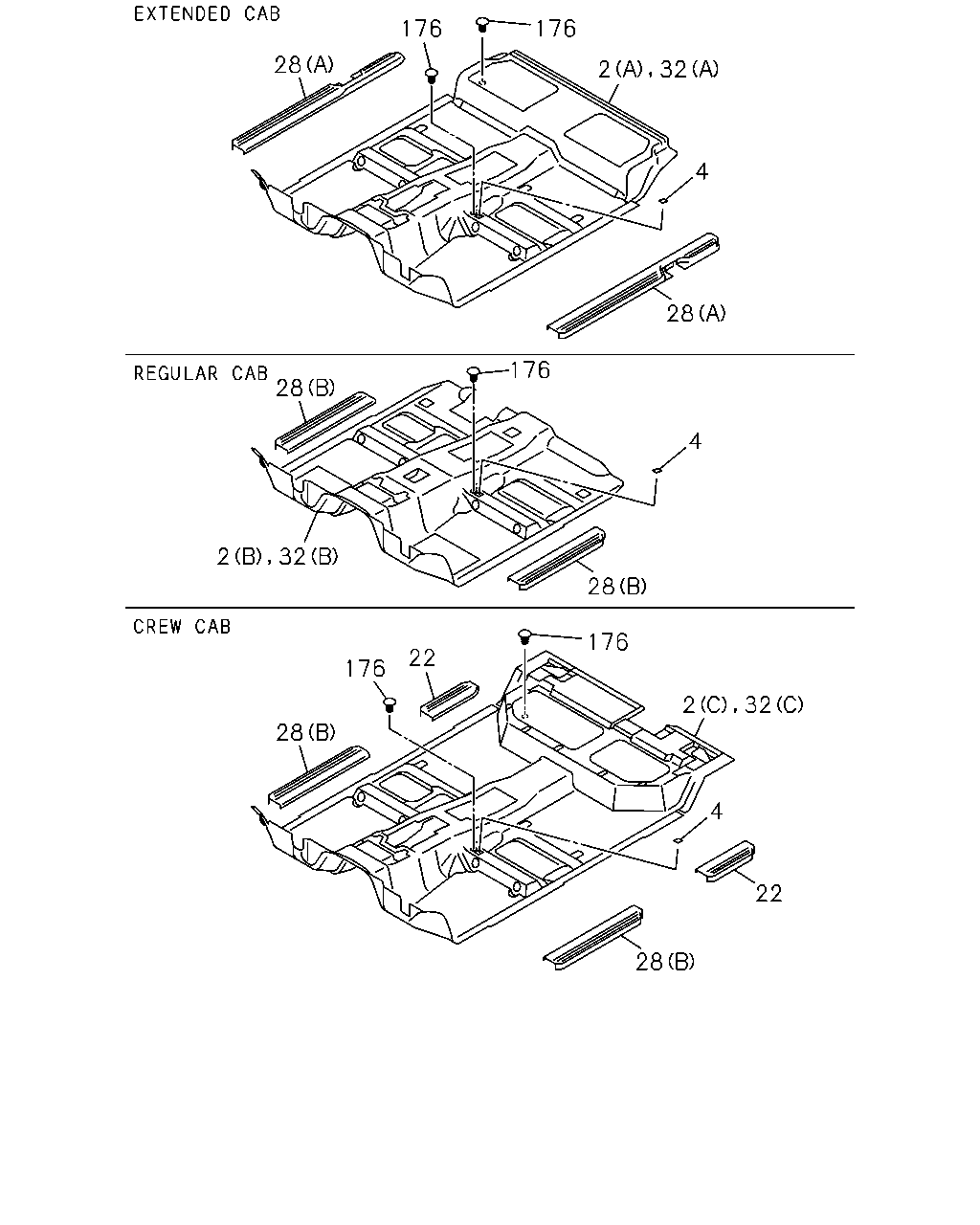

çizim 426732
28 176 176 2 32 4 28 4 176 28 176 22 176 2 32 28 2 32 4 22 28 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97423-422-3 01 1 1406- ● ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97423-421-3 01 1 1406- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97423-489-1 01 1 1406- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97423-488-1 01 1 1406- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-112-6 01 1 1406- ● ●
2 16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-111-5 01 1 1406- ● ●
2 16.800 MAT; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-942-8 01 1 1406- ●
2 16.800 MAT; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-952-8 01 1 1406- ●
2 16.800 MAT; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97427-678-0 01 1 1406- ●
4 16.547 INSULATOR; FRT 8-98185-968-0 04 1 1406- ● ● ● ● ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-948-5 01 1 1406- ● ●
22 16.870 PLATE; SILL,RR
BLACK 		8-97416-950-5 01 1 1406- ● ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-669-2 01 1 1406- ● ●
28 16.870 PLATE; SILL,FRT
(A) BLACK 		8-97416-671-2 01 1 1406- ● ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-944-3 01 1 1406- ● ● ● ●
28 16.870 PLATE; SILL,FRT
(B) BLACK 		8-97416-946-3 01 1 1406- ● ● ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-847-9 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-845-9 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
FRONT CONSOLE WO/LID<D54> EXC. JUMP SEAT<AJ2>,COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-846-8 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
FRONT CONSOLE W/LID<D55> EXC. JUMP SEAT<AJ2>,COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-844-8 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-440-5 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-422-5 01 1 1406- ● ●
32 16.800 CARPET; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97422-851-6 01 1 1406- ●
32 16.800 CARPET; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97422-853-6 01 1 1406- ●
32 16.800 CARPET; FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (C) BLACK 		8-97427-677-0 01 1 1406- ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1406- ● ● ● ●
176 16.870 RETAINER; CARPET
BLACK 		8-97416-667-0 02 1 1406- ● ●
