◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#141281) — 43 parça

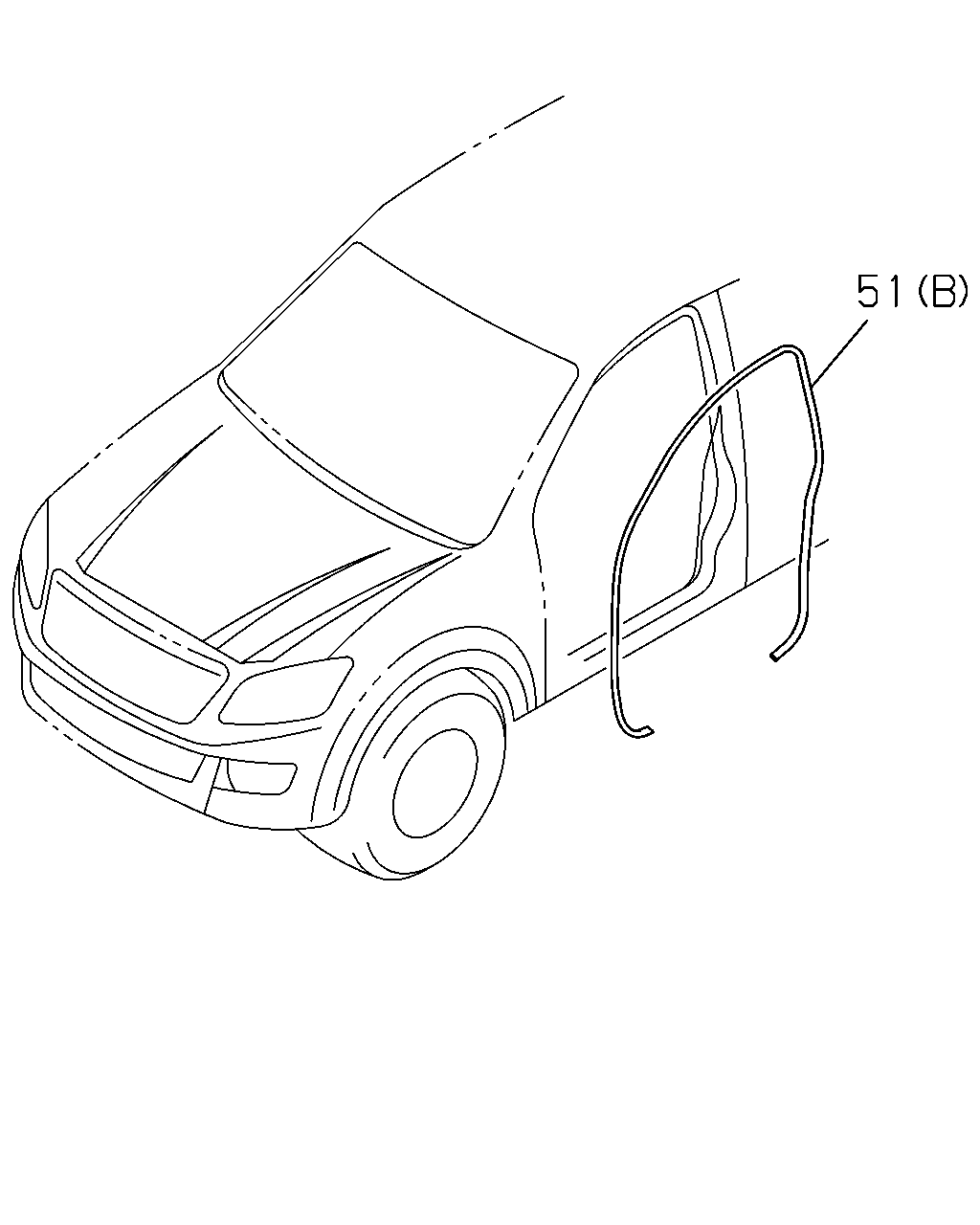

çizim 426332
51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1406- ● ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1406- ● ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1406- ● ● ● ●

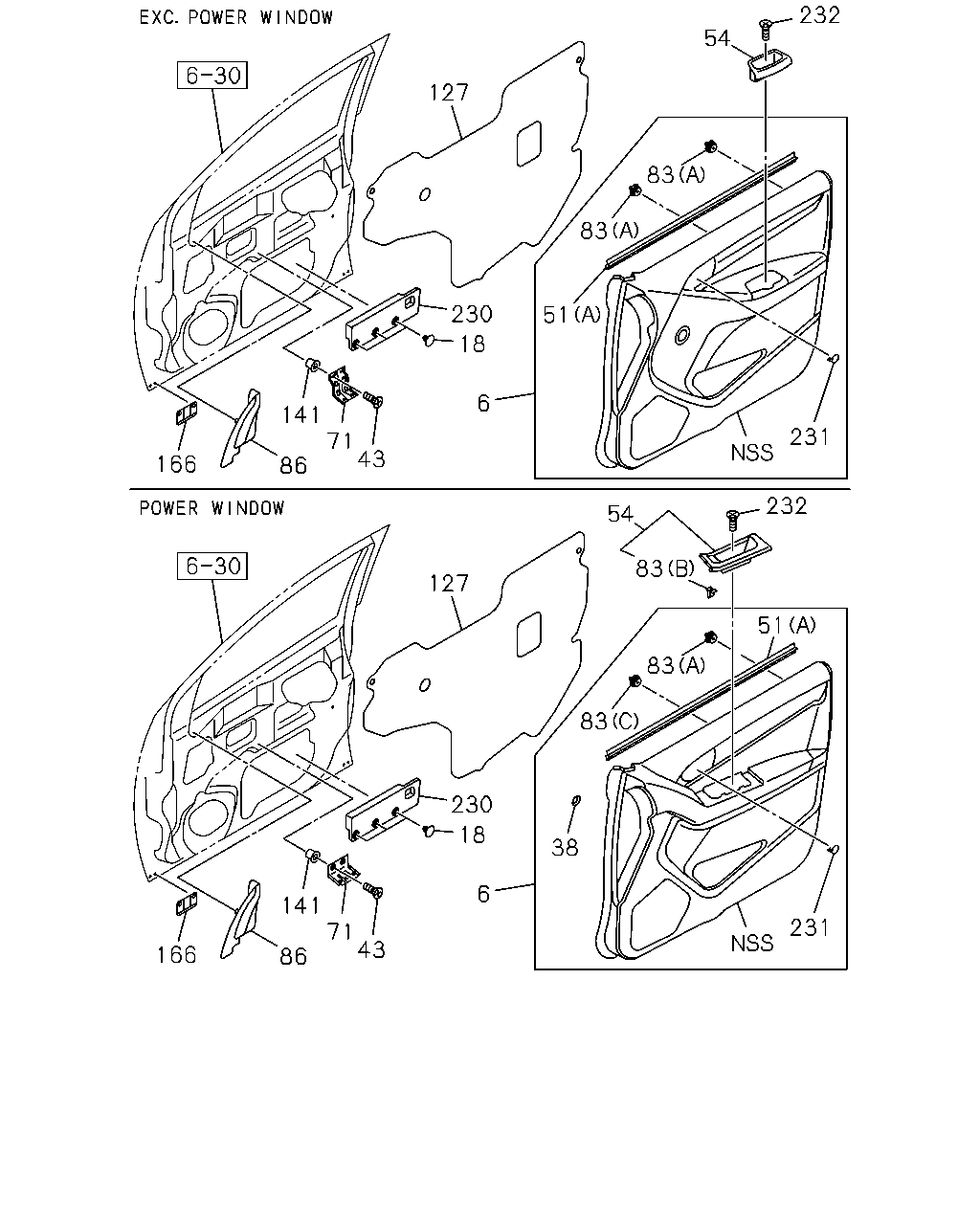

çizim 426602
127 54 232 83 83 51 231 232 83 54 51 83 83 38 231 230 18 127 141 71 43 6 86 166 166 86 141 71 43 6 18 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-715-0 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-715-0 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-717-0 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-717-0 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97419-359-6 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97419-359-6 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97419-386-6 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97419-386-6 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-714-0 01 1 1406- ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97427-716-0 01 1 1406- ● ● ●
18 16.165 CLIP; DOOR PAD
15.100 BLACK 		8-94204-281-0 06 1 1406- ● ● ● ● ● ●
38 16.183 STOPPER; DOOR SEAL,FRT
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 01.269 		8-98211-687-0 02 1 1406- ● ● ● ● ● ●
43 16.165 SCREW; DOOR POCKET
16.345 M5X14 TAPPING 		8-98184-363-0 04 1 1406- ● ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1406- ● ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1406- ● ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1406- ● ● ● ●
54 16.165 BOX; FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-750-1 01 1 1406- ● ● ● ● ● ●
54 16.165 BOX; FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-751-1 01 1 1406- ● ● ● ● ● ●
54 16.165 BOX; FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-752-5 01 1 1406- ● ● ● ● ● ●
54 16.165 BOX; FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-753-5 01 1 1406- ● ● ● ● ● ●
71 14.690 BRACKET; ARM REST
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98102-215-2 02 1 1406- ● ● ● ● ● ●
71 14.690 BRACKET; ARM REST
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98102-216-4 02 1 1406- ● ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98160-729-0 16 1 1406- ● ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98164-677-0 02 1 1406- ● ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98166-326-0 02 1 1406- ● ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98160-729-0 18 1 1406- ● ● ●
83 16.165 CLIP; DOOR TRIM
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98160-729-0 18 1 1406- ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-748-3 01 1 1406- ● ● ● ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-749-3 01 1 1406- ● ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-454-1 01 1 1406- ● ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-455-1 01 1 1406- ● ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98178-181-1 01 1 1406- ● ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98178-182-1 01 1 1406- ● ● ● ● ● ●
141 16.165 GROMMET; SCREW,LWR COVER
10.565 		8-94152-494-0 04 1 1406- ● ● ● ● ● ●
166 16.155 PLUG; HOLE 8-98197-448-0 04 1 1406- ● ● ● ● ● ●
230 16.165 PAD; FRT DOOR 8-98156-031-3 01 1 1406- ● ● ● ● ● ●
230 16.165 PAD; FRT DOOR 8-98156-032-3 01 1 1406- ● ● ● ● ● ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1406- ● ● ● ● ● ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1406- ● ● ● ● ● ●
232 16.165 BOLT; DOOR TRIM
16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1406- ● ● ● ● ● ●
