6-01 — FRONT BUMPER (#141271) — 62 parça

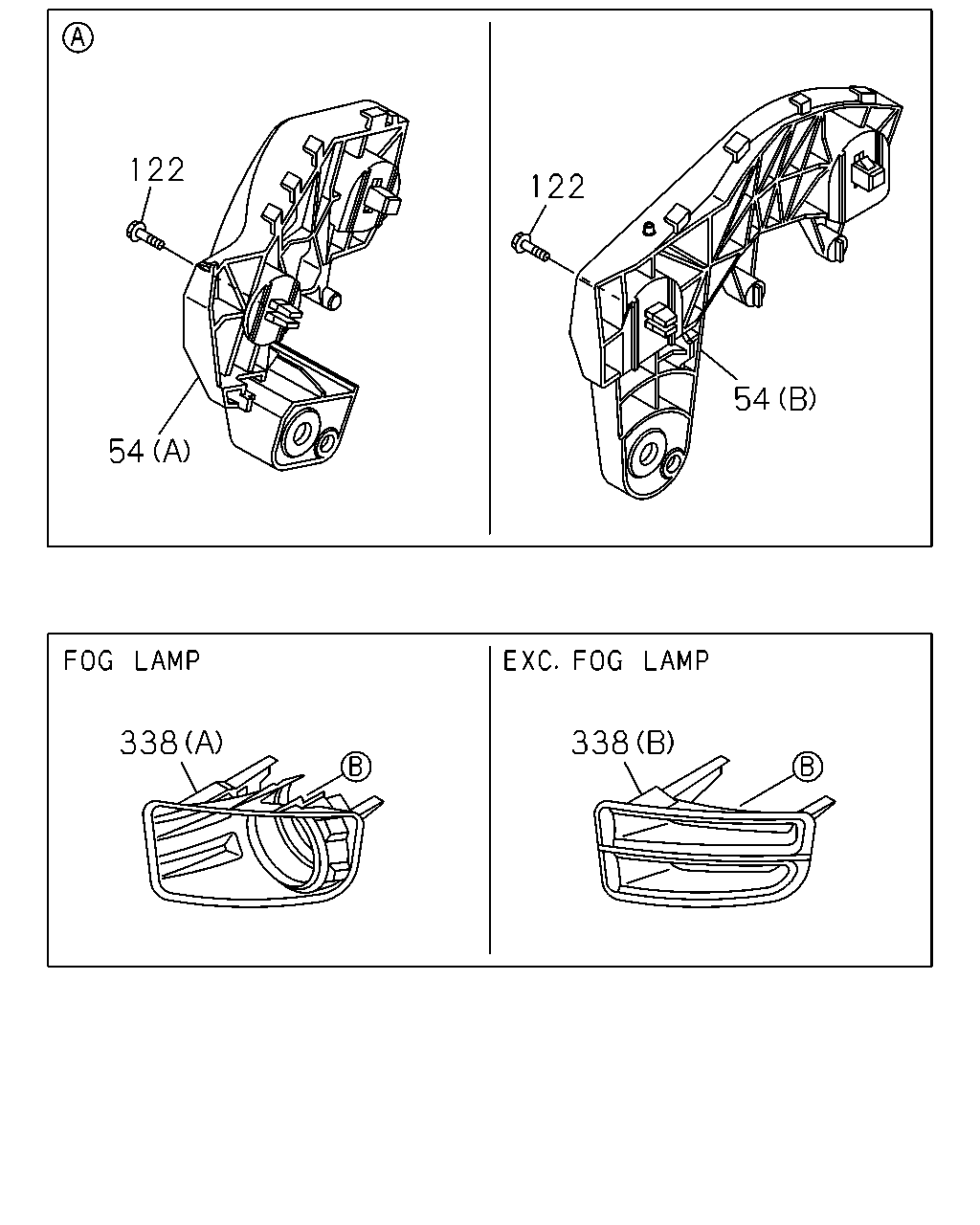

çizim 426035
122 54 122 54 338 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1406- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1406- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1406- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1406- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1406- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1406- ● ● ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1406- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-824-1 01 1 1406- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-825-1 01 1 1406- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-827-1 01 1 1406- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-828-1 01 1 1406- ● ● ● ● ● ●

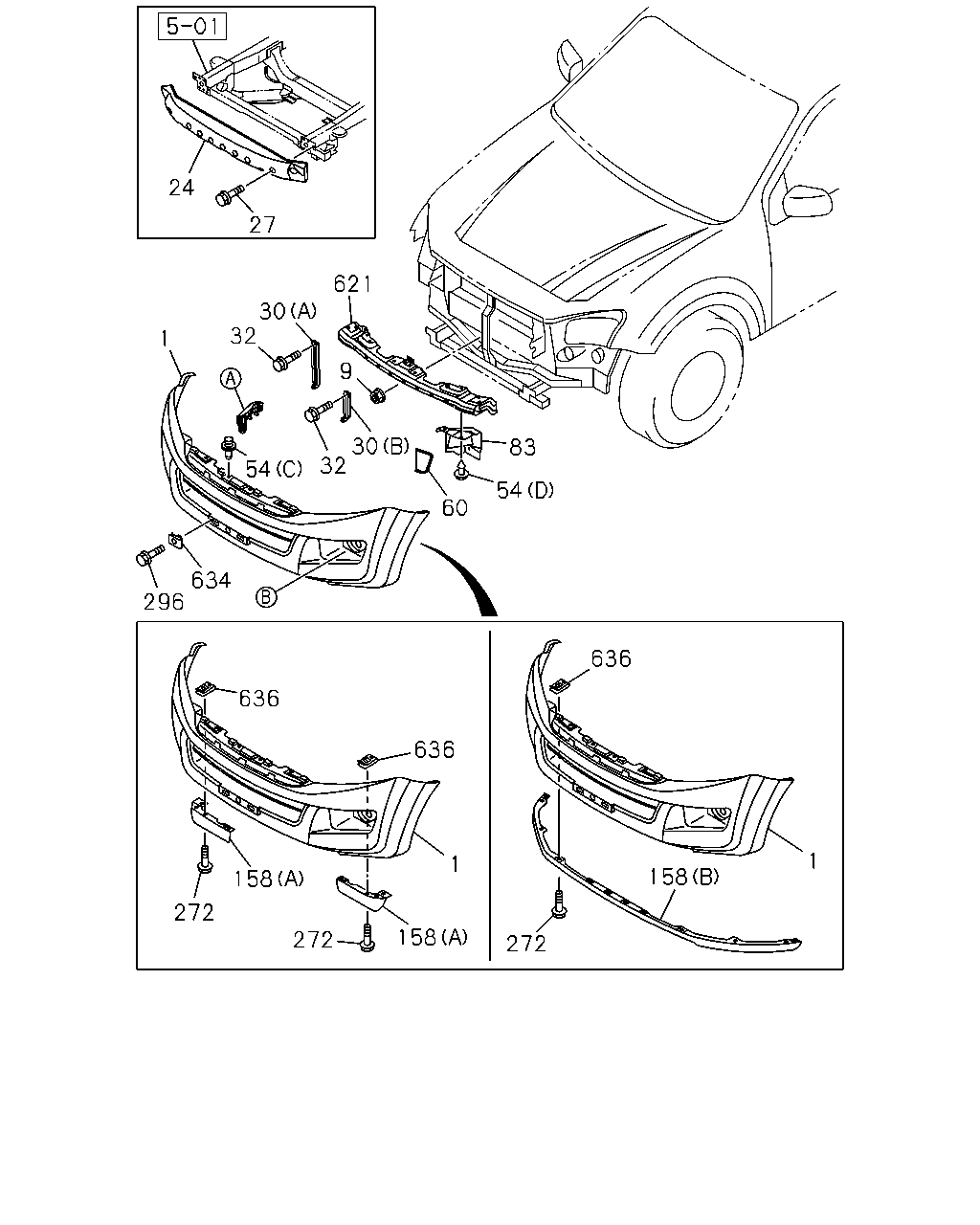

çizim 426076
24 621 27 30 32 1 9 83 54 60 30 32 54 634 296 636 636 1 158 272 158 272 272 158 636 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD PAINTLESS SUPPLY<7TV> 		8-98193-446-2 01 1 1406- ●
1 07.831 BUMPER ASM; FRT
KD PAINT LESS SUPPLY<7TV> 		8-98193-446-2 01 1 1406- ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD PAINTLESS SUPPLY<7TV>,HIGH RIDE SUSPENSIO N(7YC) 		8-98193-446-2 01 1 1406- ● ●
1 07.831 BUMPER ASM; FRT
KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1406- ● ●
1 07.831 BUMPER ASM; FRT
KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1406- ● ●
1 07.831 BUMPER ASM; FRT
HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINTLESS SUPPLY<7TV> 		8-98193-449-2 01 1 1406- ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD PAINTLESS SUPPLY<7TV> 		8-98193-449-2 01 1 1406- ● ● ●
1 07.831 BUMPER ASM; FRT
KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1406- ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-2 01 1 1406- ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-575-2 01 1 1406- ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-575-2 01 1 1406- ● ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1406- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER 8-98165-113-1 01 1 1406- ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1406- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1406- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1406- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1406- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1406- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1406- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1406- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1406- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1406- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1406- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1406- ● ● ●
60 07.831 SPACER; FRT BUMPER 8-98140-340-1 01 1 1406- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1406- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1406- ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
(B) 		8-98099-823-1 01 1 1406- ●
158 07.833 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1406- ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1406- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1406- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1406- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1406- ● ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1406- ●
272 07.874 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1406- ● ●
272 07.874 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1406- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1406- ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1406- ● ● ● ● ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1406- ● ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 1406- ● ● ● ● ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 10 1 1406- ●
636 07.833 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1406- ● ●
636 07.833 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1406- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1406- ● ● ●
