◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#141264) — 34 parça

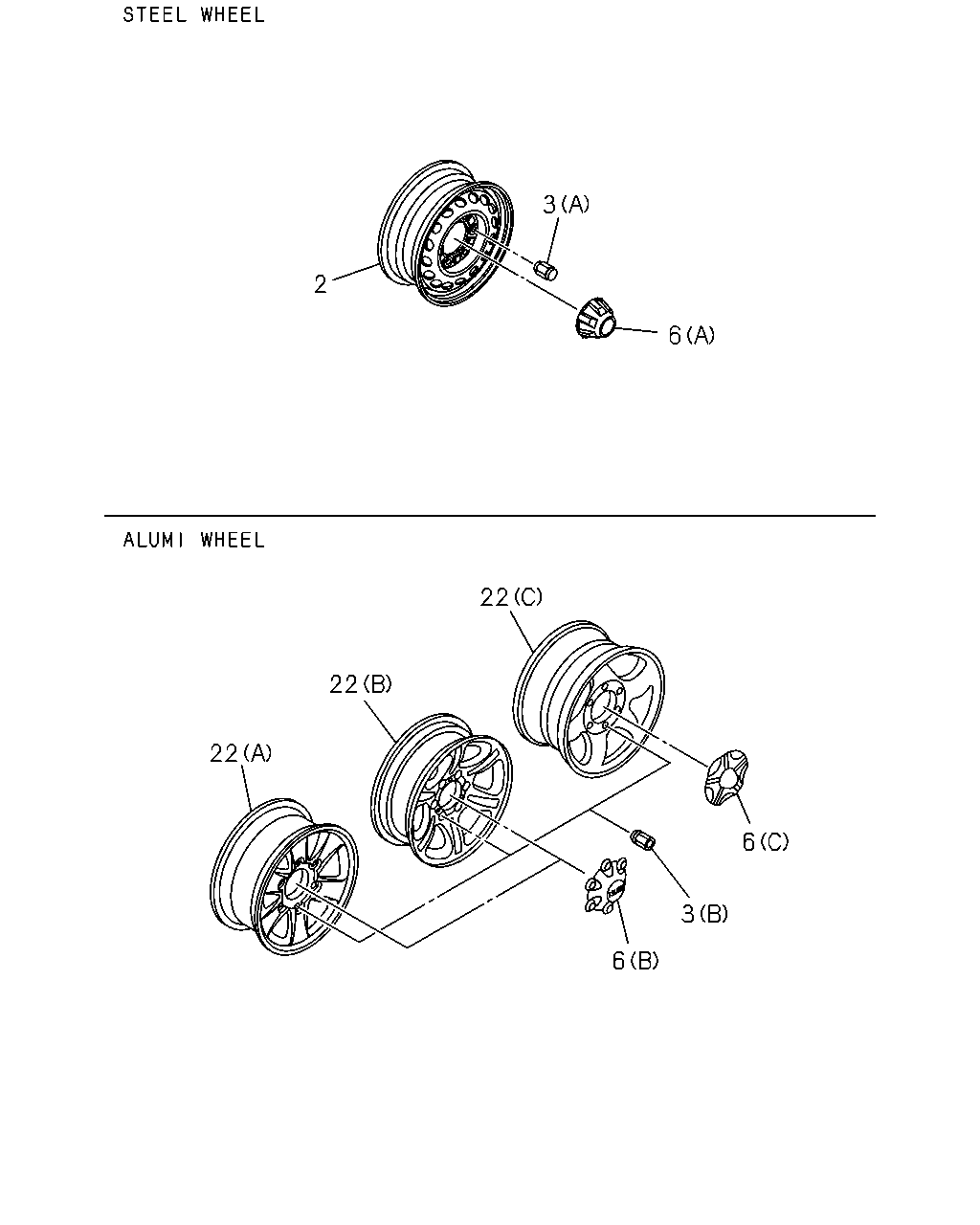

çizim 426436
2 3 6 22 22 22 6 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 04 1 1406- ●
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 04 1 1406- ● ●
2 05.803 WHEEL; DISC
DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 01 1 1406- ●
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 01 1 1406- ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 PA TIRE D693(BZD) DISC WHEEL 16X7 ALUMI BUSH LESS(PF4), DISC WHEEL 16X7 STEEL(QC1) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-148-0 01 1 1406- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 PA TIRE D693(BZD) DISC WHEEL 16X7 STEEL(QC1) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-148-0 04 1 1406- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 17X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-149-0 01 1 1406- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) FRONT,REAR 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-147-0 04 1 1406- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-147-0 01 1 1406- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL(BSY) (A) M12 H=30.5 		8-97333-108-0 24 1 1406- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 16X7 STEEL(QC1) (A) M12 H=30.5 		8-97333-108-0 24 1 1406- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL 16X7 STEEL(QC1) (A) M12 H=30.5 		8-97333-108-0 24 1 1406- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) M12 H=23 		8-98101-983-0 24 1 1406- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI(PFE),DISC WHEEL15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7 ALUMI BUSH LESS(PF4) (B) M12 H=23 		8-98101-983-0 24 1 1406- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI(PFE),DISC WHEEL16X7 ALUMI BUSH LESS(PF4) (B) M12 H=23 		8-98101-983-0 24 1 1406- ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY) (A) ISUZU MARK 		8-97301-998-1 04 1 1406- ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY) EXC. HIGH RIDE SUSPENSION(7YC) (A) ISUZU MARK 		8-97301-998-1 04 1 1406- ●
6 05.858 CAP; WHEEL
INTERIOR BASIC(RBA) DISC WHEEL 15X6.5-41 STEEL(BSY) EXC. HIGH RIDE SUSPENSION(7YC) (A) ISUZU MARK 		8-97301-998-1 04 1 1406- ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) ISUZU MARK 		8-98102-993-0 04 1 1406- ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7 ALUMI BUSH LESS(PF4) (B) ISUZU MARK 		8-98102-993-0 04 1 1406- ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X7 ALUMI BUSH LESS(PF4) (B) ISUZU MARK 		8-98102-993-0 04 1 1406- ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 17X7 ALUMI(PFE) (C) ISUZU MARK 		8-98107-318-3 04 1 1406- ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1406- ●
6 05.858 CAP; WHEEL
INTERIOR BASIC(RBA) DISC WHEEL 16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1406- ●
6 05.858 CAP; WHEEL
INTERIOR CUSTOM(RBD) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1406- ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL 16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1406- ● ● ●
22 05.809 WHEEL; DISC,AL
DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 04 1 1406- ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 04 1 1406- ● ●
22 05.809 WHEEL; DISC,AL
DISC WHEEL 15X6.5-41 ALUMI(PF3) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (B) SPARE 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 01 1 1406- ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (B) SPARE 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 01 1 1406- ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 PA TIRE D693(BZD) DISC WHEEL 16X7 ALUMI BUSH LESS(PF4) (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE 		8-98218-151-0 04 1 1406- ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 PA TIRE D693(BZD) DISC WHEEL 16X7 ALUMI BUSH LESS(PF4) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (A) SPARE 16X7.0J OFFSET=33 6-HOLE 		8-98218-151-0 01 1 1406- ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE 		8-98259-995-0 04 1 1406- ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (C) SPARE 17X7.0J OFFSET=33 6-HOLE 		8-98259-995-0 01 1 1406- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
