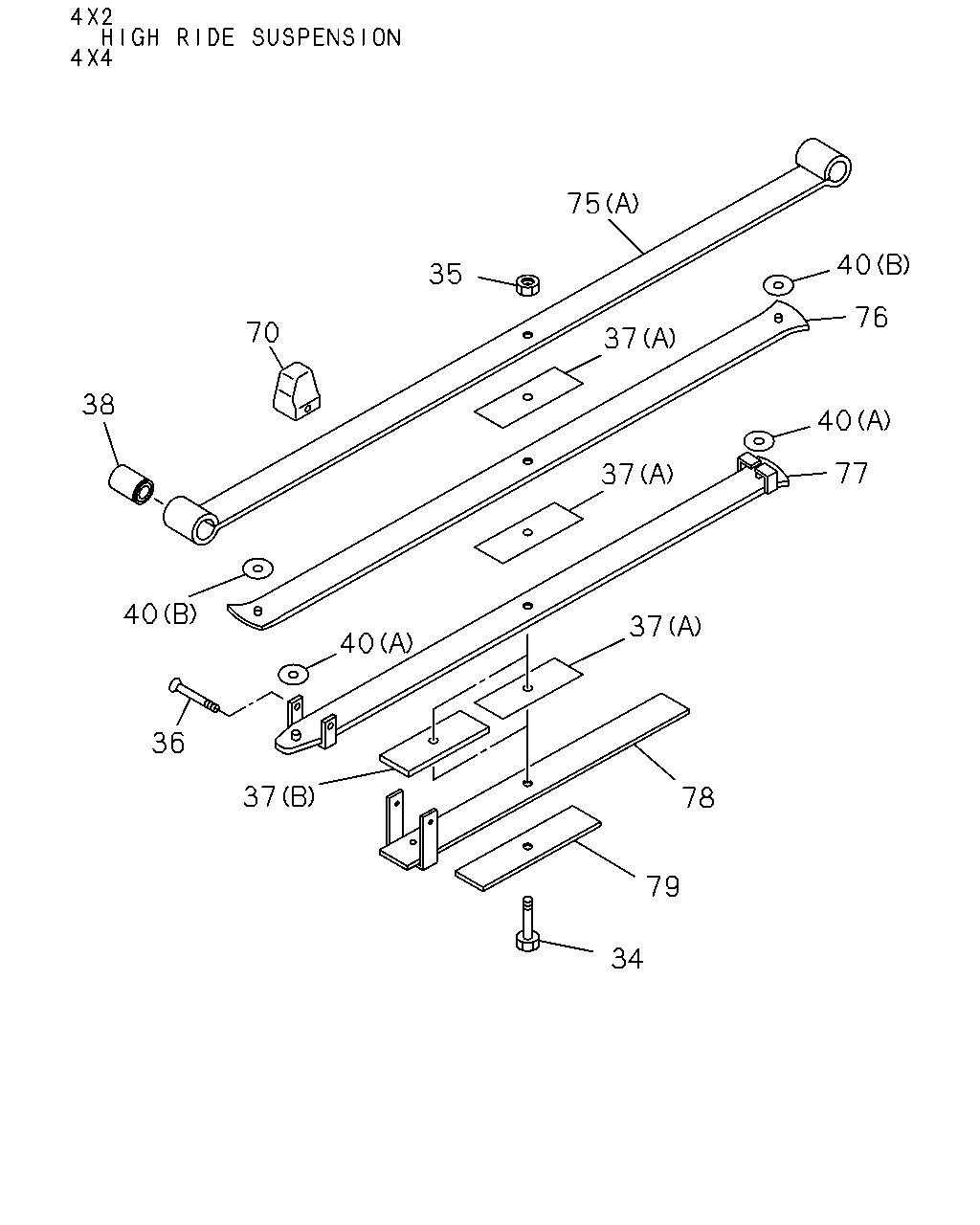

4-65B — REAR LEAF SPRING (#141263) — 51 parça

35 75 37 37 40 76 40 77 37 78 79 34 40 37 36 40 38 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, D = 8-98282-589-1, 98282589	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, D = 8-98282-589-1, 98282589	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684, E = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683, D = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-

34 75 37 37 37 37 79 78 40 77 40 76 38 40 40 35 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-544-2, 98201544	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-544-2, 98201544, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684, E = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683, D = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98282-589-1, 98282589, E = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: A = 8-98201-544-2, 98201544	8-98210-427-1	01	1	-
