4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#141255) — 27 parça

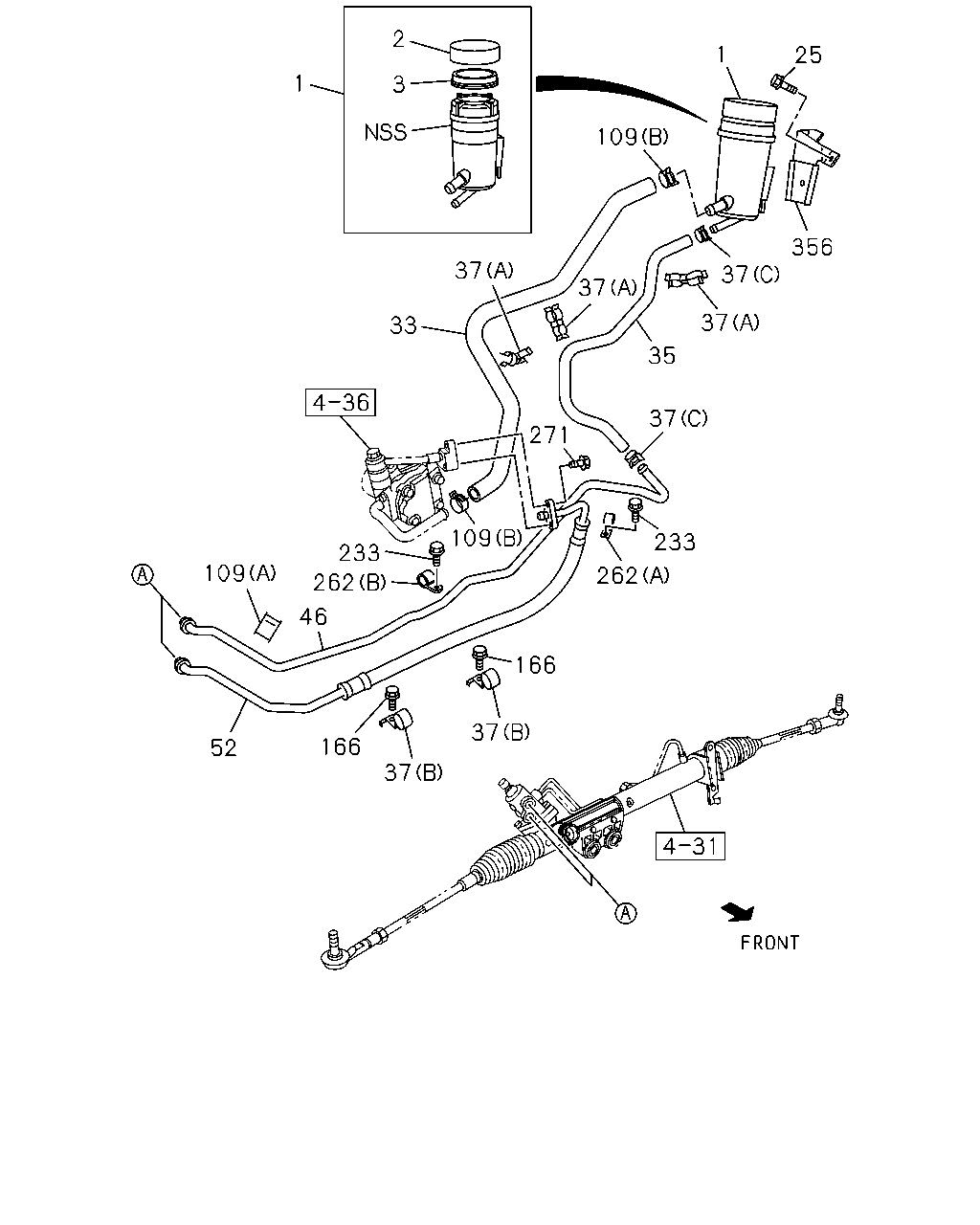

çizim 426237
1 3 2 1 25 109 356 37 37 37 35 37 233 262 166 37 37 166 46 109 271 37 33 233 262 109 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.635 TANK ASM; OIL,P/S 8-97234-350-0 01 1 1406- ● ● ● ● ● ●
2 06.672 CAP; OIL TANK,P/S 8-97349-476-0 01 1 1406- ● ● ● ● ● ●
3 06.673 GASKET; OIL TANK,P/S 8-97349-477-0 01 1 1406- ● ● ● ● ● ●
25 06.635 BOLT; OIL TANK BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ● ● ● ●
33 06.672 HOSE; RUBBER,POWER STRG 8-97946-138-2 01 1 1406- ● ● ● ● ● ●
35 06.671 HOSE; RETURN,P/S TANK 8-97946-140-1 01 1 1406- ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
AIR CONDITIONER MANUAL CONT(C60) 06.672 (A) ID=17.5 & 21 		8-97177-580-0 01 1 1406- ● ● ●
37 01.762 CLIP; HOSE,P/S
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.672 (A) ID=17.5 & 21 		8-97177-580-0 01 1 1406- ● ● ●
37 01.762 CLIP; HOSE,P/S
06.672 (A) ID=17.5 & 21 		8-97177-580-0 02 1 1406- ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
(C) ID=16 		8-98030-682-0 02 1 1406- ● ● ● ● ● ●
37 01.762 CLIP; HOSE,P/S
(B) ID=21.5 L=21 		8-98211-907-0 02 1 1406- ● ● ● ● ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK 8-98228-467-1 01 1 1406- ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98228-467-1 01 1 1406- ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
HIGH RIDE SUSPENSION(7YC) 		8-98228-468-1 01 1 1406- ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK 8-98228-468-1 01 1 1406- ● ● ●
52 06.673 HOSE; FLEX,P/S CONT VLV 8-98228-465-0 01 1 1406- ●
52 06.673 HOSE; FLEX,P/S CONT VLV
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98228-465-0 01 1 1406- ● ●
52 06.673 HOSE; FLEX,P/S CONT VLV
HIGH RIDE SUSPENSION(7YC) 		8-98228-466-0 01 1 1406- ● ●
52 06.673 HOSE; FLEX,P/S CONT VLV 8-98228-466-0 01 1 1406- ● ● ●
109 06.672 CLIP; RUBBER HOSE
(A) ID=10X2 H=22 		8-94252-455-2 01 1 1406- ● ● ● ● ● ●
109 06.672 CLIP; RUBBER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 02 1 1406- ● ● ● ● ● ●
166 06.672 BOLT; CLIP
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ● ● ● ●
233 06.672 BOLT; PIPE CLIP,P/S
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ● ● ● ●
262 06.672 CLIP; P/S PIPE
03.162 (A) ID=11 H=20 L=20 		0-95207-310-0 01 1 1406- ● ● ● ● ● ●
262 06.672 CLIP; P/S PIPE
02.559 (B) ID=11 L=20 		0-95235-032-0 01 1 1406- ● ● ● ● ● ●
271 06.672 BOLT; P/S OIL PIPE FIX
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ● ● ● ●
356 06.672 BRACKET; P/S,RESERVOIR 8-97946-163-0 01 1 1406- ● ● ● ● ● ●
