4-20 — REAR AXLE CASE AND SHAFT (#141250) — 47 parça

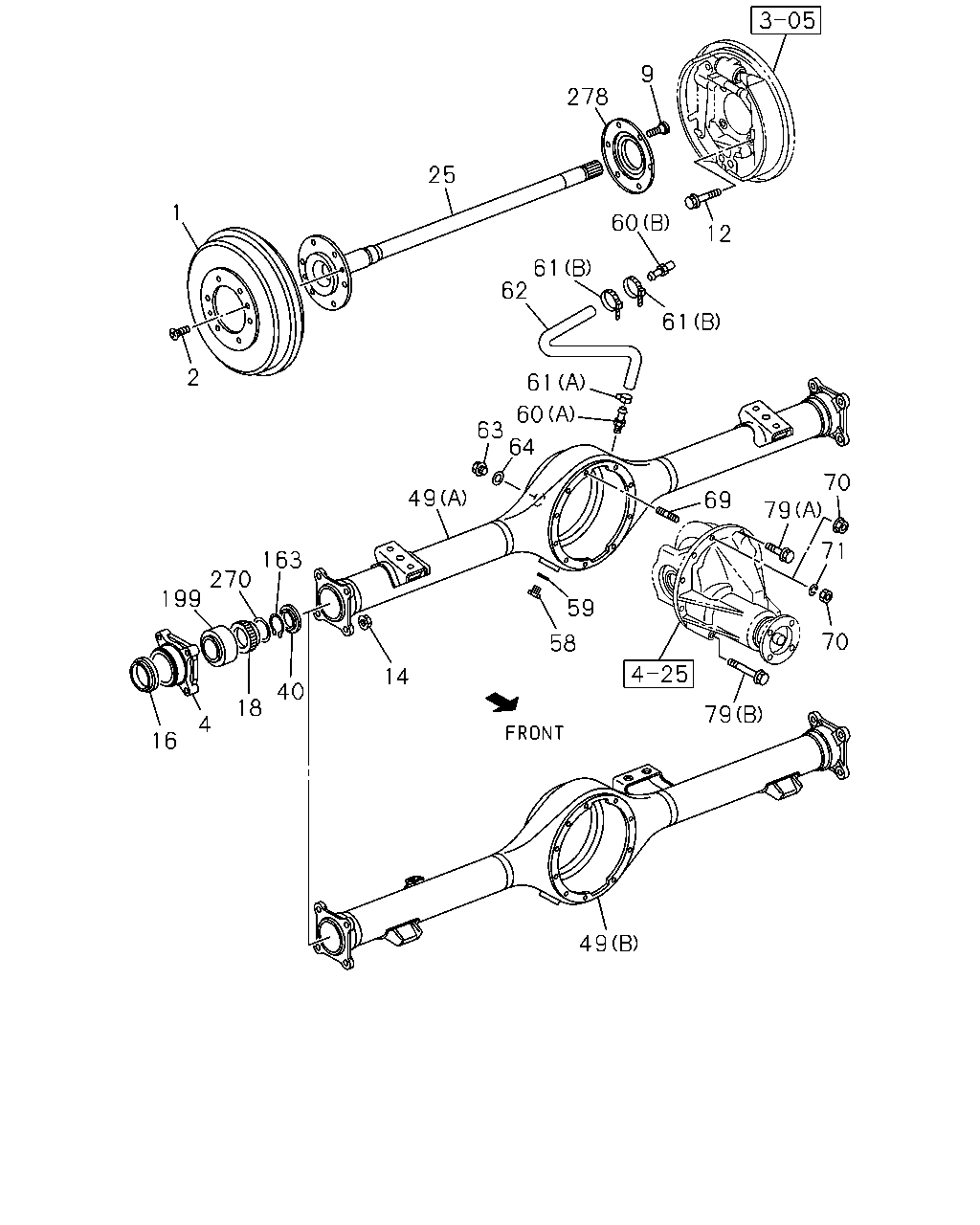

çizim 426021
70 79 49 58 59 69 70 71 79 14 40 18 4 16 199 163 270 49 1 2 25 9 278 12 61 60 61 62 61 63 60 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR
AISIN TAKAOKA 		8-97948-038-1 02 1 1406- ● ● ● ● ● ●
1 05.809 DRUM; BRK,RR
SOMBOON 		8-98061-813-1 02 1 1406- ● ● ● ● ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1406- ● ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1406- ● ● ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1406- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE 		8-98107-914-2 08 1 1406- ● ● ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1406- ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1406- ● ● ● ● ● ●
18 05.822 RETAINER; RR AXLE 8-98009-341-0 02 1 1406- ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-98080-677-2 02 1 1406- ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/12(GU6) 		8-98080-677-2 02 1 1406- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/11(GT4) 		8-98080-678-2 02 1 1406- ● ●
25 05.420 SHAFT; AXLE,RR 8-98080-678-2 02 1 1406- ● ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1406- ● ● ● ● ● ●
49 05.387 CASE; RR AXLE
(A) 		8-98157-092-1 01 1 1406- ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/12(GU6) (A) 		8-98157-092-1 01 1 1406- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4) (B) 		8-98080-423-2 01 1 1406- ● ●
49 05.387 CASE; RR AXLE
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98080-423-2 01 1 1406- ● ● ●
49 05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) (B) 		8-98173-633-0 01 1 1406- ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1406- ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1406- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
(B) 		8-98018-796-0 01 1 1406- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
(A) 		8-98179-881-0 01 1 1406- ●
60 05.387 BREATHER; RR AXLE CASE
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98179-881-0 01 1 1406- ● ●
60 05.387 BREATHER; RR AXLE CASE
HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-279-0 01 1 1406- ● ●
60 05.387 BREATHER; RR AXLE CASE
(A) 		8-98008-279-0 01 1 1406- ● ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
02.587 (B) L=112 		8-94232-618-0 02 1 1406- ● ● ● ● ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
03.163 (A) ID=11 		8-94238-570-0 01 1 1406- ● ● ● ● ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE 8-98179-715-1 01 1 1406- ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98179-715-1 01 1 1406- ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98154-100-1 01 1 1406- ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE 8-98154-100-1 01 1 1406- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1406- ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1406- ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1406- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 1406-1509 ● ● ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
02.277 ID=10.2 		0-91510-810-0 02 1 1406-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1406-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1406-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1406- ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1406- ● ● ● ● ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-2 02 1 1406- ● ● ● ● ● ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 1406- ● ● ● ● ● ●
278 05.822 CATCHER; OIL 8-98103-447-2 02 1 1406- ● ● ● ● ● ●
