1-56 — EXHAUST BRAKE SYSTEM (#14125) — 15 parça

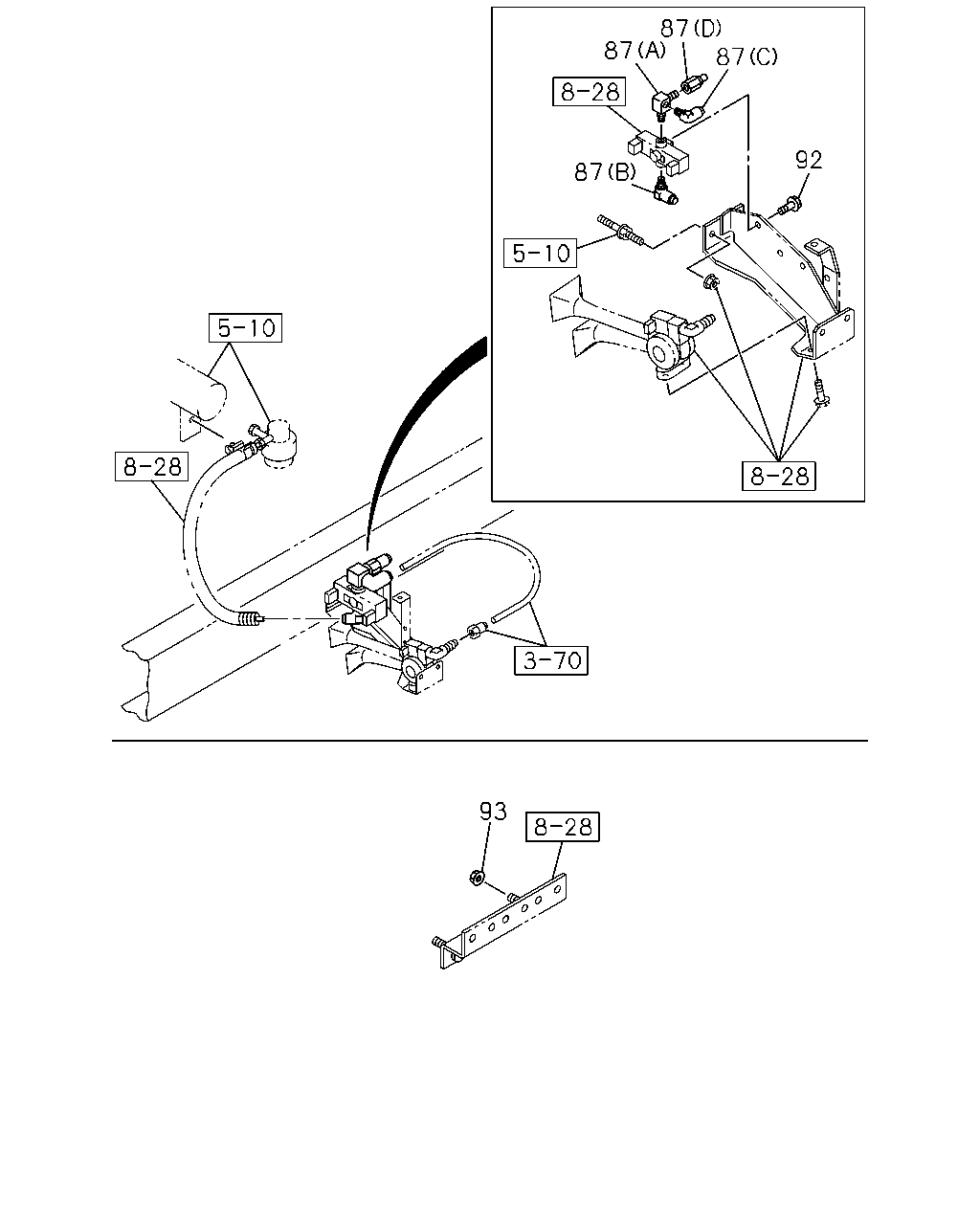

çizim 142027
87 87 87 92 87 93
BalonParca AdiParca NoAdetTipApplied Date A B
87 CONNECTOR
(A) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0710-1107 ●
87 CONNECTOR
(A) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1108- ● ●
87 CONNECTOR
(B) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-1107 ●
87 CONNECTOR
(B) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1108- ● ●
87 CONNECTOR
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-1107 ●
87 CONNECTOR
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1108- ● ●
87 CONNECTOR
(D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-1107 ●
87 CONNECTOR
(D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ● ●
92 BOLT; MAG VLV
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1107 ●
92 BOLT; MAG VLV
M8X16 FLANGE 		0-28050-816-0 01 1 1108- ● ●
93 NUT; MAG VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0812-1107 ●
93 NUT; MAG VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 1108- ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0710-0810 ●
93 NUT; MAG VLV
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0811-1107 ●
93 NUT; MAG VLV
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
