4-12 — FRONT DRIVE SHAFT (#141248) — 79 parça

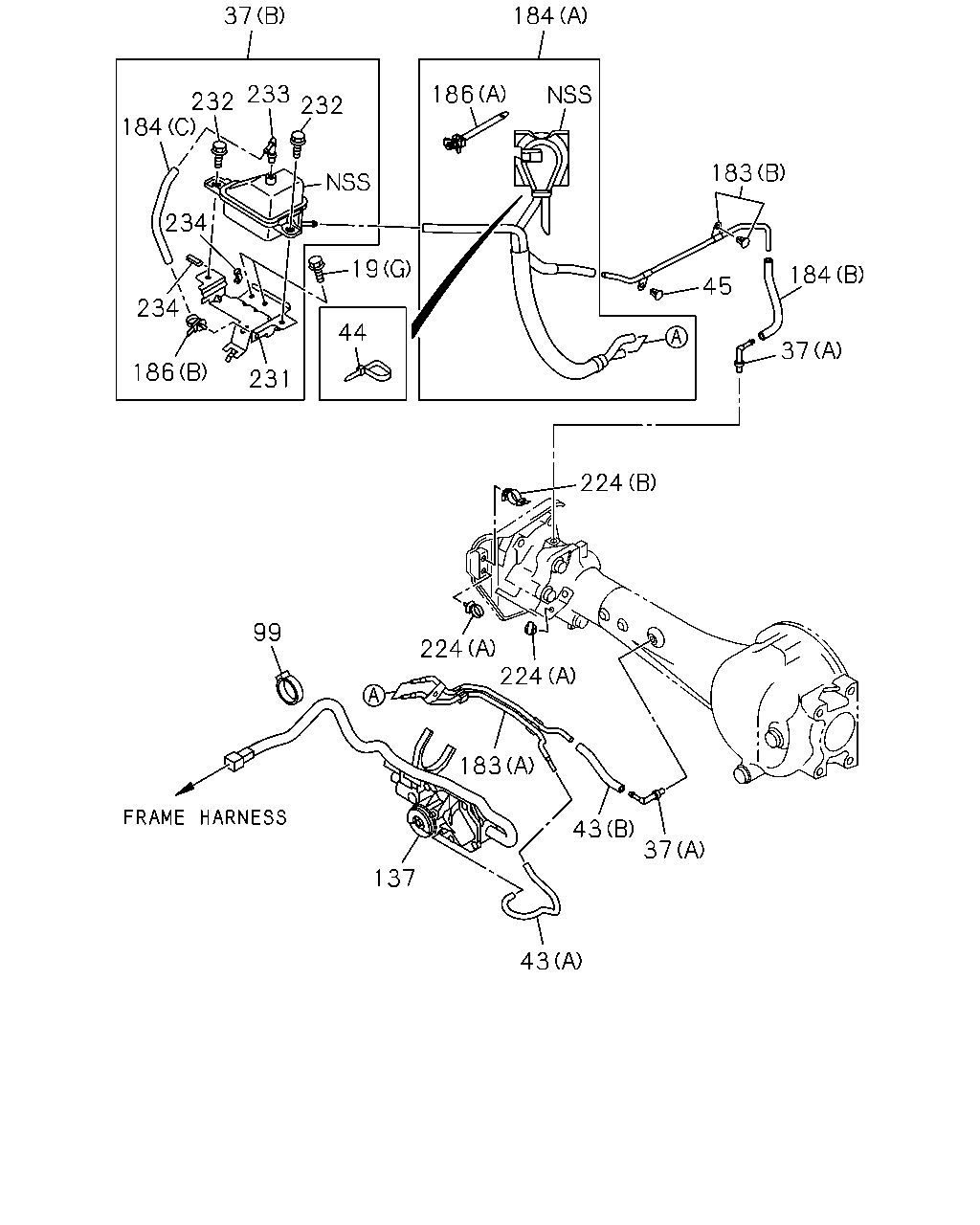

çizim 426015
37 232 233 184 234 234 186 231 44 19 184 186 183 184 37 45 224 224 224 99 137 43 37 43 183 232
BalonParca AdiParca NoAdetTipApplied Date A B C
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 09.003 (C) M12X30 FLANGE 		0-28051-230-0 04 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 03 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (D) M8X28.5 W/SP WASHER 		8-97947-579-0 03 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (E) M8X40 W/SP WASHER 		8-97947-580-0 05 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (F) M8X95 W/SP WASHER 		8-97947-581-0 02 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
02.343 (G) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
(A) 		8-94226-943-0 02 1 1406- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
(B) 		8-98166-418-4 01 1 1406- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
08.962 (A) L=250 SERVICED BY L=3000 		0-04740-300-0 01 1 1406- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
(B) L=120 SERVICED BY L=3000 		0-04950-300-0 01 1 1406- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
16.716 L=129.5 		8-94368-493-0 01 1 1406- ● ● ●
45 06.008 CLIP
02.726 OD=14 HOLE ID=6 		8-97031-632-0 01 1 1406- ● ● ●
99 06.008 CLIP; RUBBER HOSE
02.559 ID=34 		8-98069-482-0 01 1 1406- ● ● ●
137 06.008 ACTUATOR; AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-98140-853-1 01 1 1406- ● ● ●
183 06.008 PIPE; BREATHER
(A) 		8-98125-294-1 01 1 1406- ● ● ●
183 06.008 PIPE; BREATHER
(B) 		8-98177-662-1 01 1 1406- ● ● ●
184 06.008 HOSE; BREATHER
08.962 (C) L=190 SERVICED BY L=3000 		0-04750-300-0 01 1 1406- ● ● ●
184 06.008 HOSE; BREATHER
(B) 		8-98177-663-0 01 1 1406- ● ● ●
184 06.008 HOSE; BREATHER
(A) 		8-98234-652-1 01 1 1406- ● ● ●
186 06.008 CLIP; HOSE,BREATHER
02.559 (B) L=155 		8-97173-307-0 01 1 1406- ● ● ●
186 06.008 CLIP; HOSE,BREATHER
02.587 (A) L=172 		8-94232-620-0 01 1 1406- ● ● ●
224 06.008 CLIP; HARNESS
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 02.587 (B) L=172 		8-94232-620-0 01 1 1406- ● ● ●
224 06.008 CLIP; HARNESS
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 02.559 (A) L=150 		8-97811-150-1 02 1 1406- ● ● ●
231 06.008 BRACKET; CATCH TANK,OIL 8-98165-859-2 01 1 1406- ● ● ●
232 06.008 BOLT; TANK TO BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ●
233 06.008 BREATHER; AIR,OIL TANK 8-94226-943-0 01 1 1406- ● ● ●
234 06.008 FINISHER; BRKT
03.885 L=50 		8-94270-377-1 02 1 1406- ● ● ●

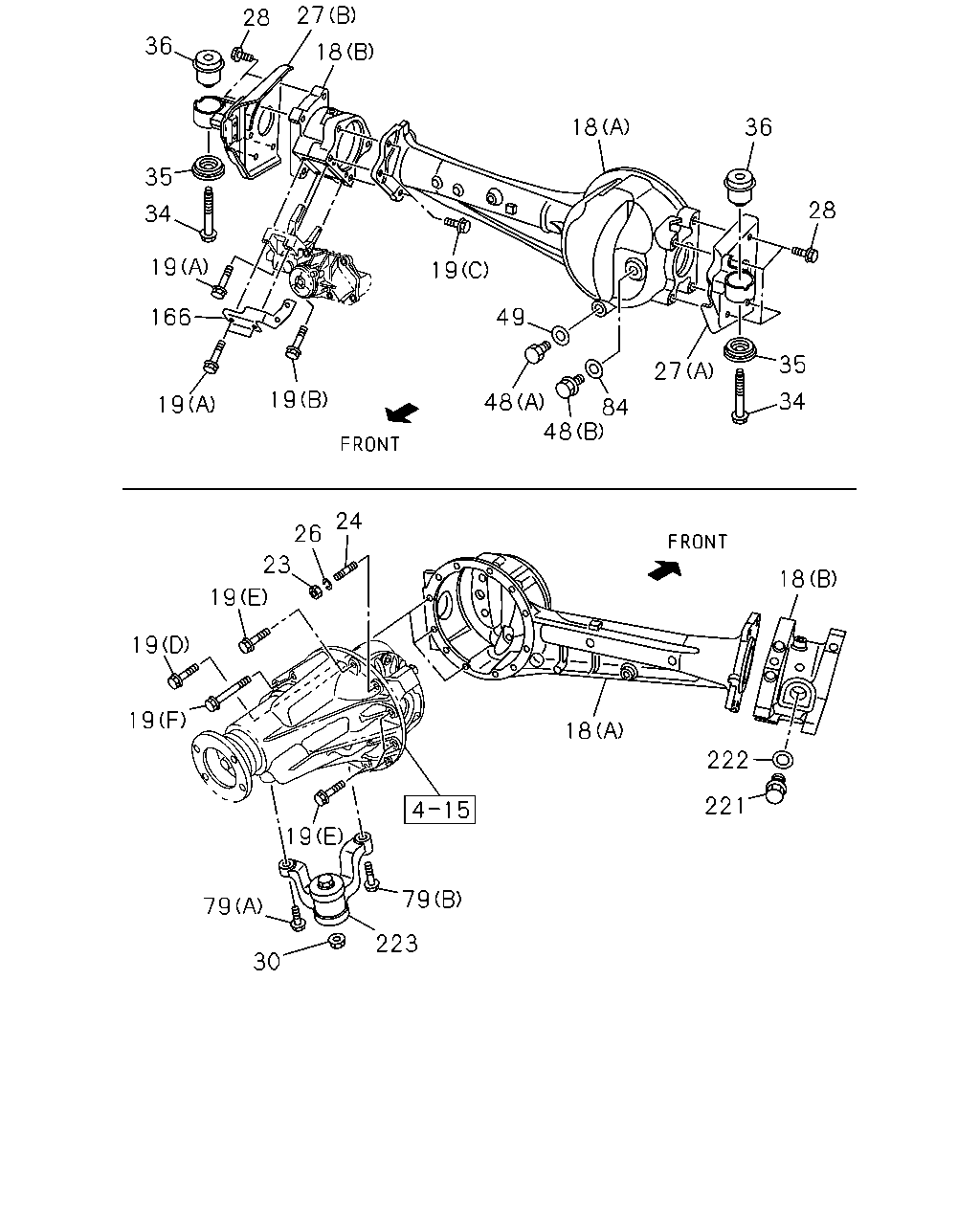

çizim 426528
18 36 28 35 34 27 84 48 48 49 19 19 19 166 19 34 35 36 28 27 18 24 26 23 19 19 19 18 222 221 79 223 19 79 30 18
BalonParca AdiParca NoAdetTipApplied Date A B C
18 06.008 CASE; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (A) 		8-98084-280-8 01 1 1406- ● ● ●
18 06.008 CASE; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (B) 		8-98084-292-3 01 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 09.003 (C) M12X30 FLANGE 		0-28051-230-0 04 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 03 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (D) M8X28.5 W/SP WASHER 		8-97947-579-0 03 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (E) M8X40 W/SP WASHER 		8-97947-580-0 05 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (F) M8X95 W/SP WASHER 		8-97947-581-0 02 1 1406- ● ● ●
19 06.156 BOLT; FRT AXLE
02.343 (G) M6X16 FLANGE 		0-28650-616-0 02 1 1406- ● ● ●
23 06.056 NUT; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 02.334 M8 		0-91110-508-0 02 1 1406- ● ● ●
24 06.056 STUD; CASE,FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 03.275 M8X25 L=41 		0-40210-825-0 02 1 1406- ● ● ●
26 06.056 WASHER; LK,CASE,FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 02.559 ID=8.2 		0-91510-808-0 02 1 1406- ● ● ●
27 06.056 BRACKET; AXLE CASE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (A) 		8-98103-425-0 01 1 1406- ● ● ●
27 06.056 BRACKET; AXLE CASE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (B) 		8-98103-434-0 01 1 1406- ● ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) M12X22 FLANGE 		8-98270-578-0 08 1 1406- ● ● ●
30 06.008 NUT; FRT AXLE MTG
00.429 M14 FLANGE 		0-91180-214-0 01 1 1406- ● ● ●
34 06.008 BOLT; FRT AXLE MTG
M14X85 FLANGE 		8-97259-306-0 02 1 1406- ● ● ●
35 06.008 WASHER; FRT AXLE MTG
ID=14.2 OD=50 		8-98008-020-0 02 1 1406- ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-97364-319-0 01 1 1406- ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-97364-323-0 01 1 1406- ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 05.508 (A) M16X12.5 		8-97307-060-0 01 1 1406- ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (B) M20X10.5 		8-98009-333-0 01 1 1406- ● ● ●
49 05.400 GASKET; DRAIN PLUG
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1406- ● ● ●
79 06.008 BOLT; BRKT
07.425 (A) M12X30 FLANGE 		0-28061-230-0 01 1 1406- ● ● ●
79 06.008 BOLT; BRKT
(B) M12X40 FLANGE 		0-28061-240-0 01 1 1406- ● ● ●
84 06.326 GASKET; PLUG,OIL FILLER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 05.400 ID=20 OD=30 		8-94462-734-0 01 1 1406- ● ● ●
166 06.008 BRACKET; CLIP
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-98125-310-3 01 1 1406- ● ● ●
221 06.008 PLUG; FILLER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 05.400 M20X10.5 		8-98009-333-0 01 1 1406- ● ● ●
222 04.515 GASKET; FILLER PLUG
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 05.400 ID=20 OD=30 		8-94462-734-0 01 1 1406- ● ● ●
223 06.008 BRACKET; HSG 8-98103-437-0 01 1 1406- ● ● ●

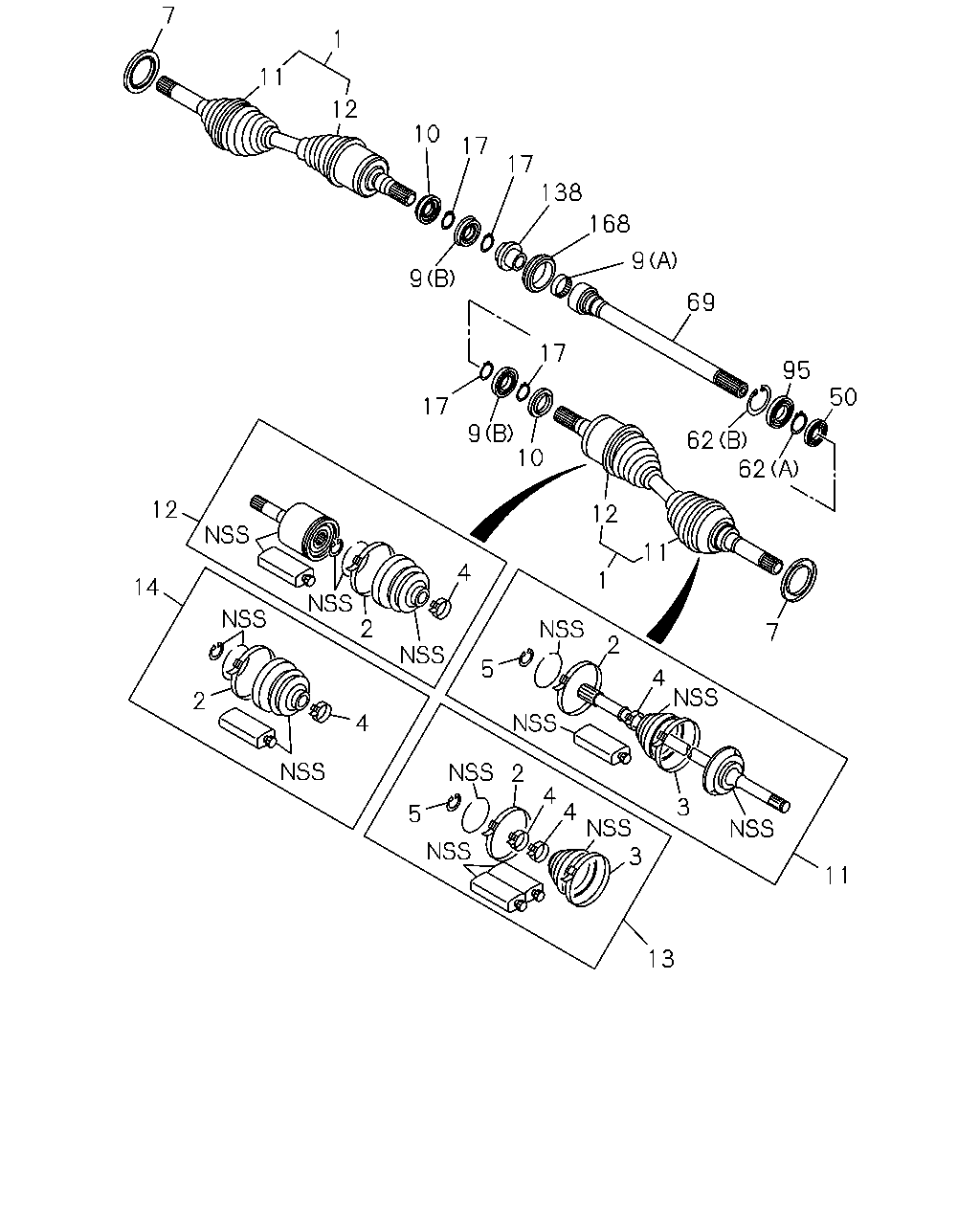

çizim 426555
7 11 12 1 10 17 17 138 168 9 69 95 50 62 62 17 9 17 9 10 12 11 1 7 11 4 3 2 5 4 2 12 14 4 2 2 5 4 4 3 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.055 SHAFT ASM; FRT DRIVE 8-98147-245-2 02 1 1406- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT 8-98147-676-0 02 1 1406- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT 8-97349-959-1 02 1 1406- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT 8-97222-152-1 04 1 1406- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT 8-97131-402-0 02 1 1406- ● ● ●
7 06.061 SEAL; DUST,DRIVE SHAFT 8-98036-560-0 02 1 1406- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) (A) 		8-97101-878-0 01 1 1406- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
(B) 		8-94407-724-0 02 1 1406- ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 1406- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 8-98147-681-1 02 1 1406- ● ● ●
12 06.060 JOINT ASM 8-98147-680-2 02 1 1406- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 8-98147-678-1 02 1 1406- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 8-98147-677-1 02 1 1406- ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
04.416 ID=27.9 		9-09180-030-0 04 1 1406- ● ● ●
50 06.061 SEAL; OIL,SHAFT,FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-97084-507-0 01 1 1406- ● ● ●
62 06.061 RING; SNAP,AXLE SHAFT
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 08.934 (A) ID=37.0 		9-09180-040-0 01 1 1406- ● ● ●
62 06.061 RING; SNAP,AXLE SHAFT
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 01.105 (B) ID=57.9 		9-09180-162-0 01 1 1406- ● ● ●
69 06.055 SHAFT; AXLE,FRT INNER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-97188-174-1 01 1 1406- ● ● ●
95 06.008 BEARING; AXLE SHAFT,FRT
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 		8-97103-392-0 01 1 1406- ● ● ●
138 06.008 GEAR; CLUTCH
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) Z=17 		8-97134-857-1 01 1 1406- ● ● ●
168 06.056 SLEEVE; FRT AXLE
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4) 06.008 		8-97130-567-1 01 1 1406- ● ● ●
