4-01 — PROPELLER SHAFT (#141245) — 130 parça
çizim 426215
301 220 9 8 17 103 106 8 9 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97943-048-0 01 1 1406-1407 ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1408- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97942-850-0 02 1 1406-1407 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1408- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-643-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-645-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT 		0-90301-406-0 03 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) 05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-639-0 01 1 1406- ● ●
103 05.544 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1406- ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
05.601 M6 STRAIGHT 		0-90301-406-0 01 1 1406- ● ● ●
220 05.544 YOKE; SPLINED
A/T 5 SPEED-AISIN(MA1) 		8-97945-105-0 01 1 1406- ● ● ●
220 05.544 YOKE; SPLINED
M/T MUX 5 SPEED 5S(MZJ) 		8-97943-050-0 01 1 1406- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97946-601-0 01 1 1406-1407 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1408- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97947-415-0 01 1 1406-1407 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97948-761-0 01 1 1408- ● ● ●
çizim 426216
300 9 125 103 17 9 8 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97943-048-0 01 1 1406-1407 ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1408- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97942-850-0 02 1 1406-1407 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1408- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-643-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-645-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT 		0-90301-406-0 03 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) 05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-639-0 01 1 1406- ● ●
103 05.544 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-630-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-630-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-664-0 01 1 1406- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-664-0 01 1 1406- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-632-0 01 1 1406- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-666-0 01 1 1406-1407 ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-666-0 01 1 1406-1407 ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-732-0 01 1 1408- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-732-0 01 1 1408- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97948-742-0 01 1 1408- ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97948-742-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97947-254-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97948-749-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97947-250-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97948-741-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97947-258-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1408- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97947-256-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97948-755-0 01 1 1408- ● ● ●

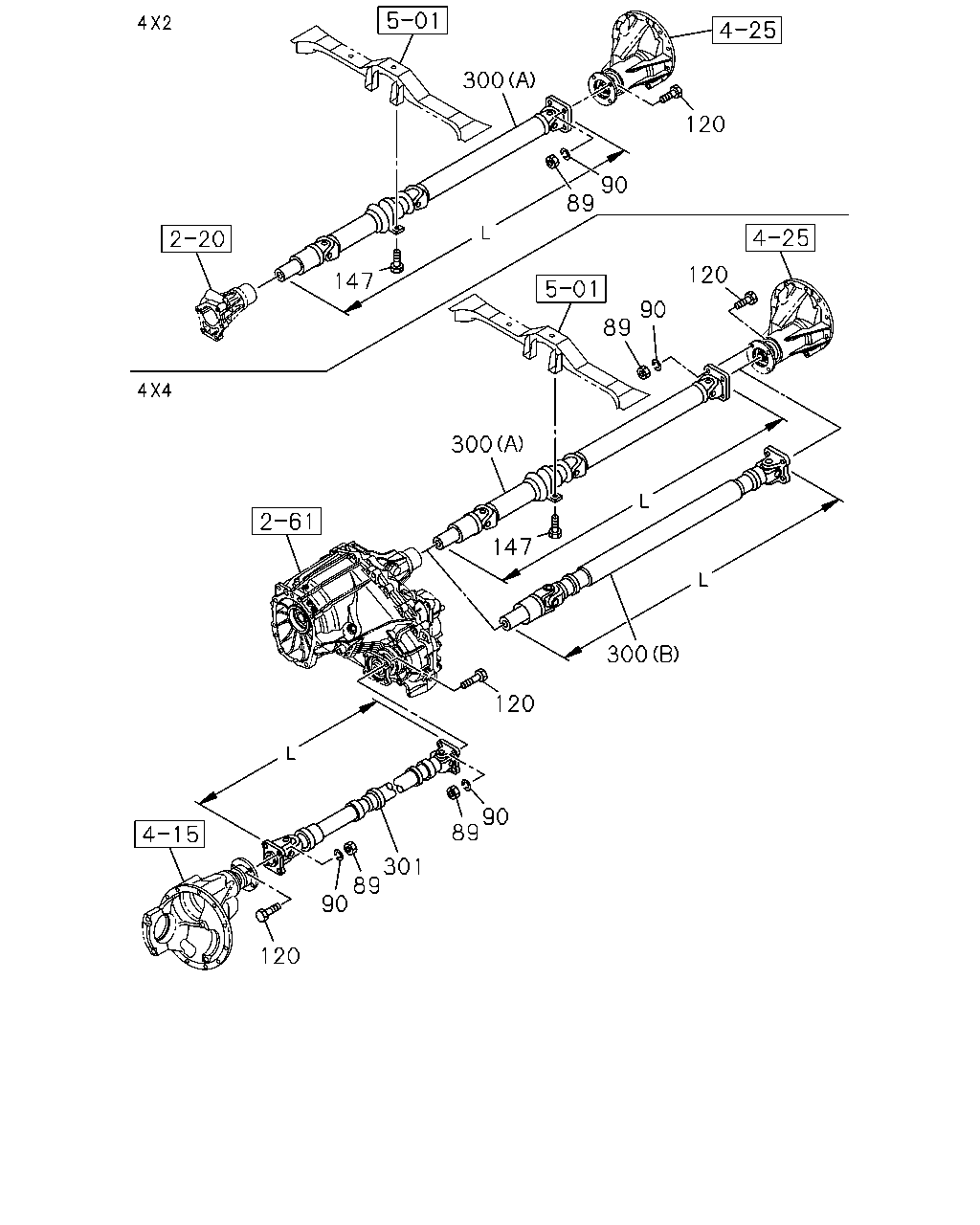

çizim 426293
120 90 89 301 89 90 120 300 147 300 89 90 120 89 90 120 300 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
89 05.586 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 04 1 1406- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 08 1 1406- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 04 1 1406- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 08 1 1406- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 04 1 1406- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 08 1 1406- ● ● ●
147 05.586 BOLT; CENTER BRG MTG
M/T MUX 5 SPEED 5S(MZJ) 17.447 M12X25 FLANGE 		0-28661-225-0 02 1 1406- ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
17.447 M12X25 FLANGE 		0-28661-225-0 02 1 1406- ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97948-742-0 01 1 1408- ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97948-742-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97947-254-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97948-749-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97947-250-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97948-741-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97947-258-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1408- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97947-256-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97948-755-0 01 1 1408- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97946-601-0 01 1 1406-1407 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1408- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97947-415-0 01 1 1406-1407 ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97948-761-0 01 1 1408- ● ● ●

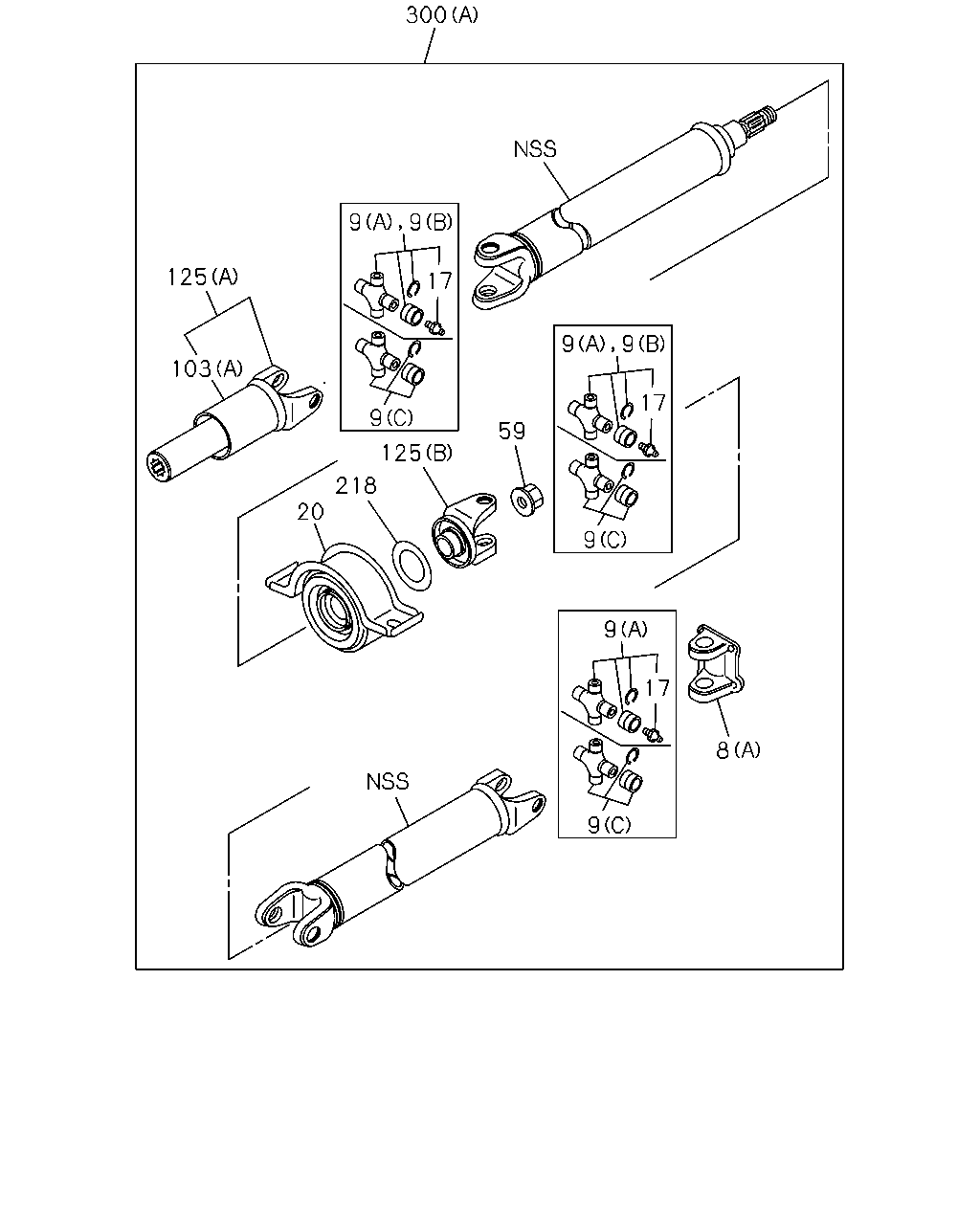

çizim 426295
300 9 9 125 103 218 125 59 20 9 9 17 9 9 17 8 9 17 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97943-048-0 01 1 1406-1407 ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1408- ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97942-850-0 02 1 1406-1407 ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1408- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-643-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-645-0 03 1 1406- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1406- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT 		0-90301-406-0 03 1 1406- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) NSK 		8-97947-655-0 01 1 1406- ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-97947-655-0 01 1 1406- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) NTN 		8-97947-656-0 01 1 1406- ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) NTN 		8-97947-656-0 01 1 1406- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) NSK 		8-97947-659-0 01 1 1406- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) NTN 		8-97947-660-0 01 1 1406- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) NSK 		8-97947-657-0 01 1 1406- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) NTN 		8-97947-658-0 01 1 1406- ● ● ●
59 05.586 NUT; RET TO SUPPORT
M/T MUX 5 SPEED 5S(MZJ) 		8-97947-557-0 01 1 1406- ● ● ● ●
59 05.586 NUT; RET TO SUPPORT 8-97947-557-0 01 1 1406- ● ●
103 05.544 BOOT; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) 05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
05.560 (A) 		8-97940-114-0 01 1 1406- ● ● ●
103 05.544 BOOT; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-639-0 01 1 1406- ● ●
103 05.544 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-630-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-630-0 01 1 1406- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-664-0 01 1 1406- ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-664-0 01 1 1406- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-632-0 01 1 1406- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-666-0 01 1 1406-1407 ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-666-0 01 1 1406-1407 ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-732-0 01 1 1408- ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-732-0 01 1 1408- ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) ID=30 H=40 L=35 		8-97192-641-0 01 1 1406- ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 		8-97192-641-0 01 1 1406- ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97947-212-0 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1815.5 		8-97948-742-0 01 1 1408- ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5 		8-97948-742-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97947-254-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (A) L=1740 		8-97948-749-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97947-250-1 01 1 1406-1407 ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (A) L=1820 		8-97948-741-0 01 1 1408- ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97947-258-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1408- ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97947-256-1 01 1 1406-1407 ● ● ●
300 05.544 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) (A) L=1472 		8-97948-755-0 01 1 1408- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
