◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#141229) — 8 parça

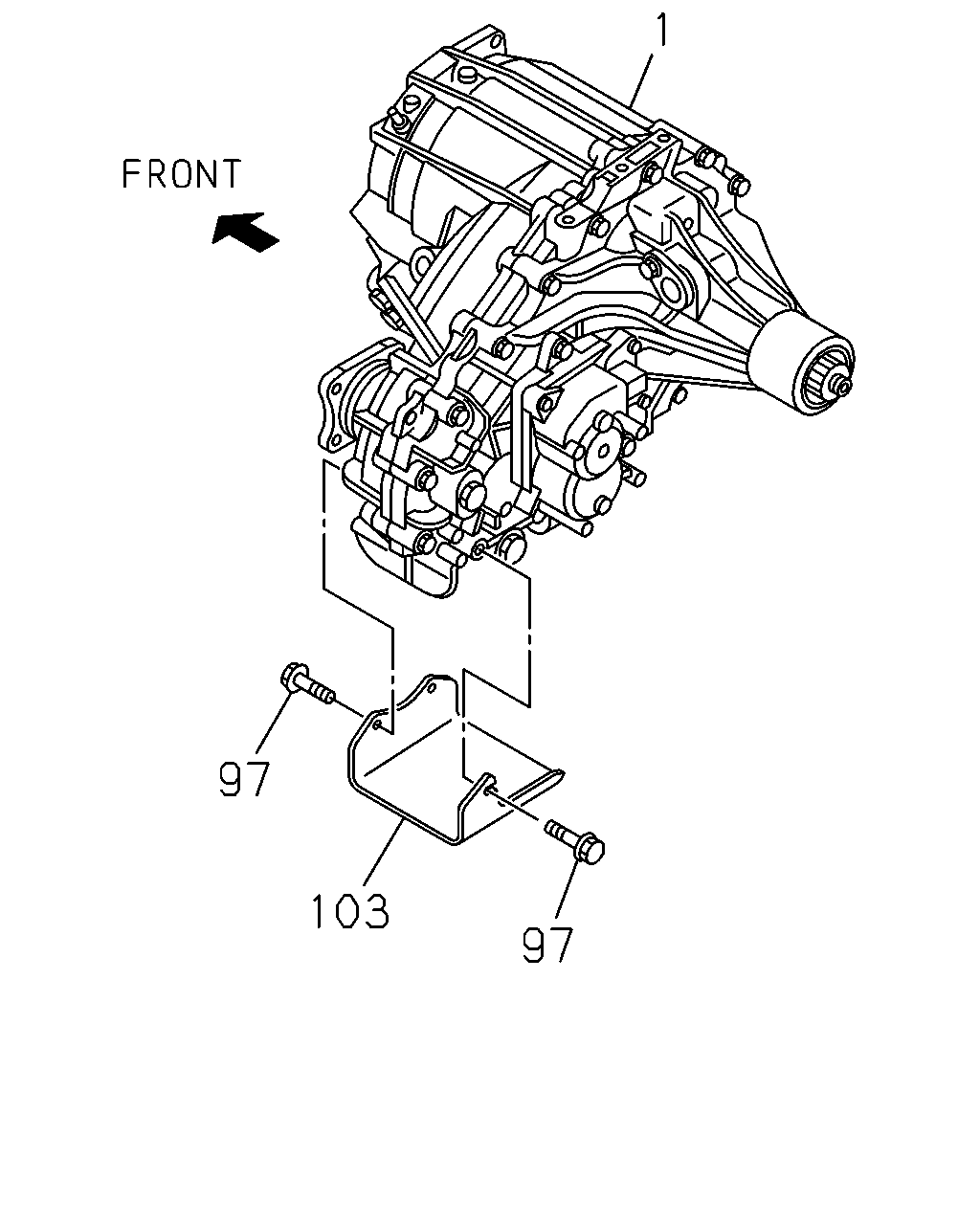

çizim 426554
1 97 103 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-872-0 01 1 1406-1508 ● ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-292-0 01 1 1509- ● ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-935-0 01 1 1406-1508 ● ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-291-0 01 1 1509- ● ● ●
1 04.505 TRANSFER ASM
M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-871-0 01 1 1406- ● ● ●
1 04.505 TRANSFER ASM
M/T MUX 5 SPEED 5S(MZJ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-934-0 01 1 1406- ● ● ●
97 04.512 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1406- ● ● ●
103 04.510 GUARD; TRANSFER 8-98125-254-0 01 1 1406- ● ● ●
