Isuzu WW
▶
PICKUP
▶
TFR
▶
51513 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

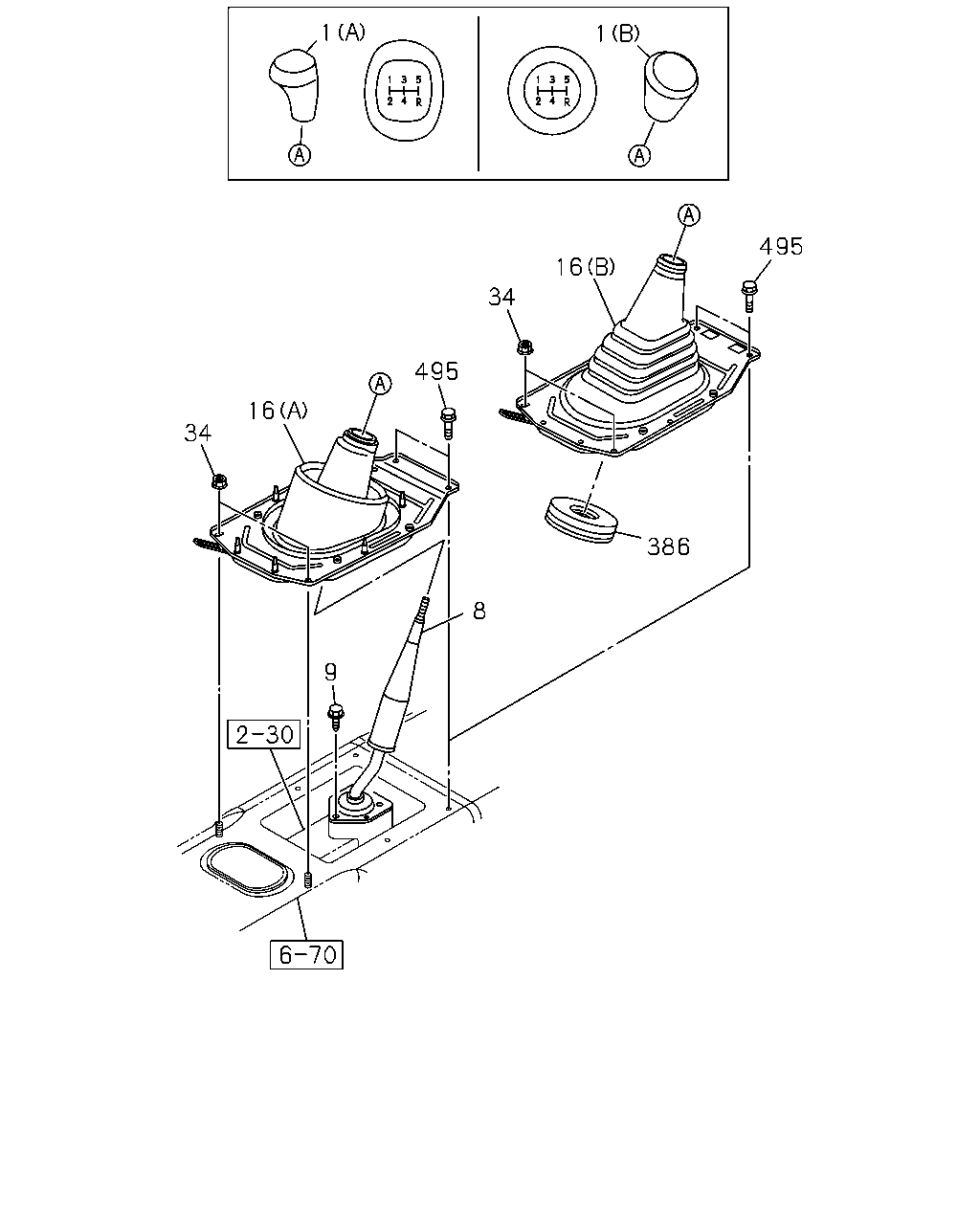

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#141217) — 12 parça
◀
[235A] NO.1 (10 parça)
[235A] NO.2 (2 parça)
▶
1
1
495
16
34
386
8
495
16
34
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK
8-97416-791-3
01
1
1406-
1
04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B)
8-97371-734-0
01
1
1406-
1
04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER
8-97423-313-0
01
1
1406-
8
04.006 LEVER; CHANGE
8-98201-972-1
01
1
1406-
9
04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1406-
16
04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A)
8-98186-367-0
01
1
1406-
16
04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)
8-98186-369-0
01
1
1406-
34
08.915 NUT
M6 FLANGE
8-98055-704-0
02
1
1406-
386
04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>
8-98191-338-0
01
1
1406-
495
04.012 SCREW; GROMMET
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1406-
8
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
04.006 LEVER; CHANGE
8-98201-972-1
01
1
1406-
24
04.008 BUSHING; CHANGE LEVER
8-97943-618-0
01
1
1406-
