Isuzu WW
▶
PICKUP
▶
TFR
▶
51513 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#141216) — 37 parça
◀

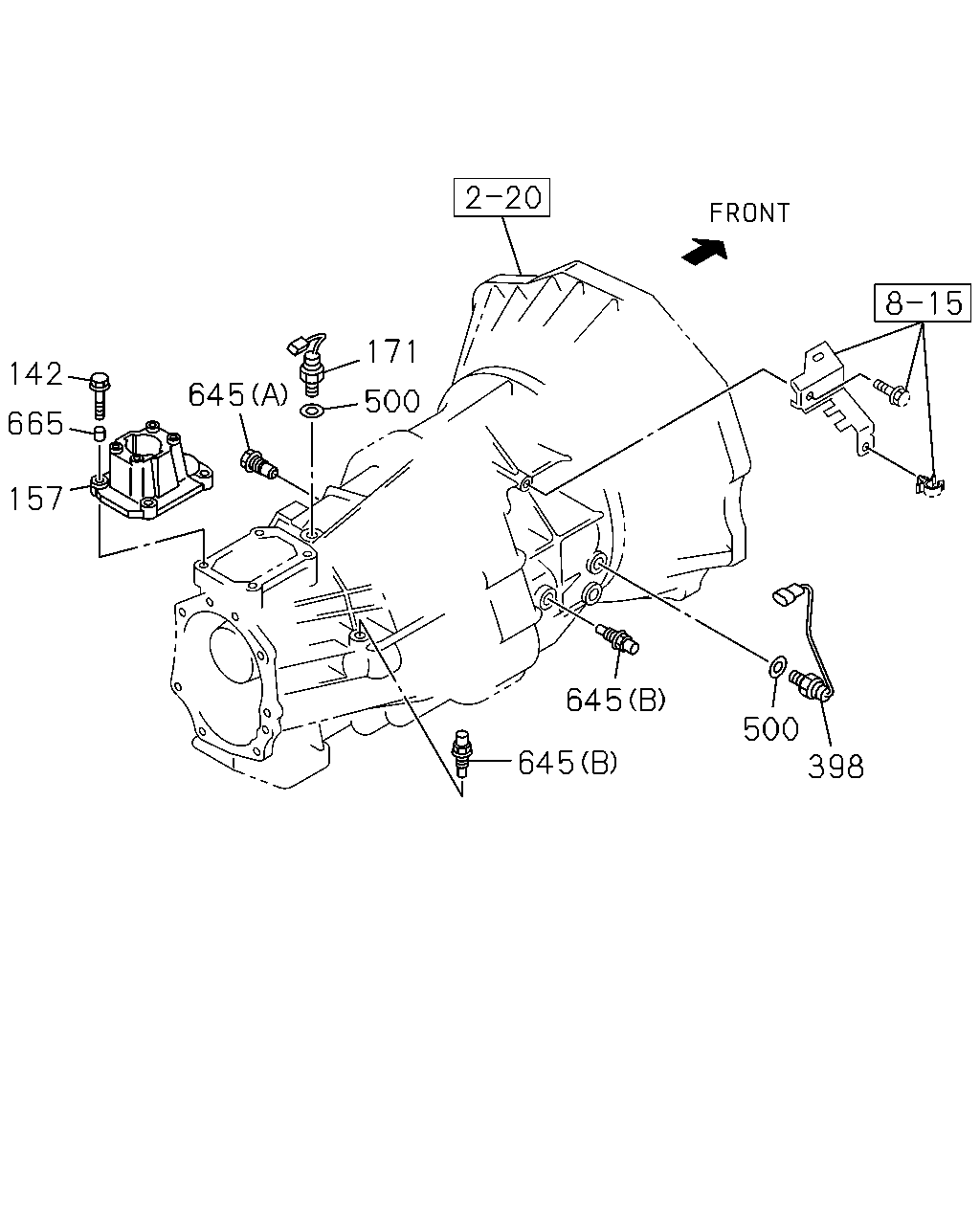

[230A] QUAD BOX DETENT ASM AND SWITCH (8 parça)

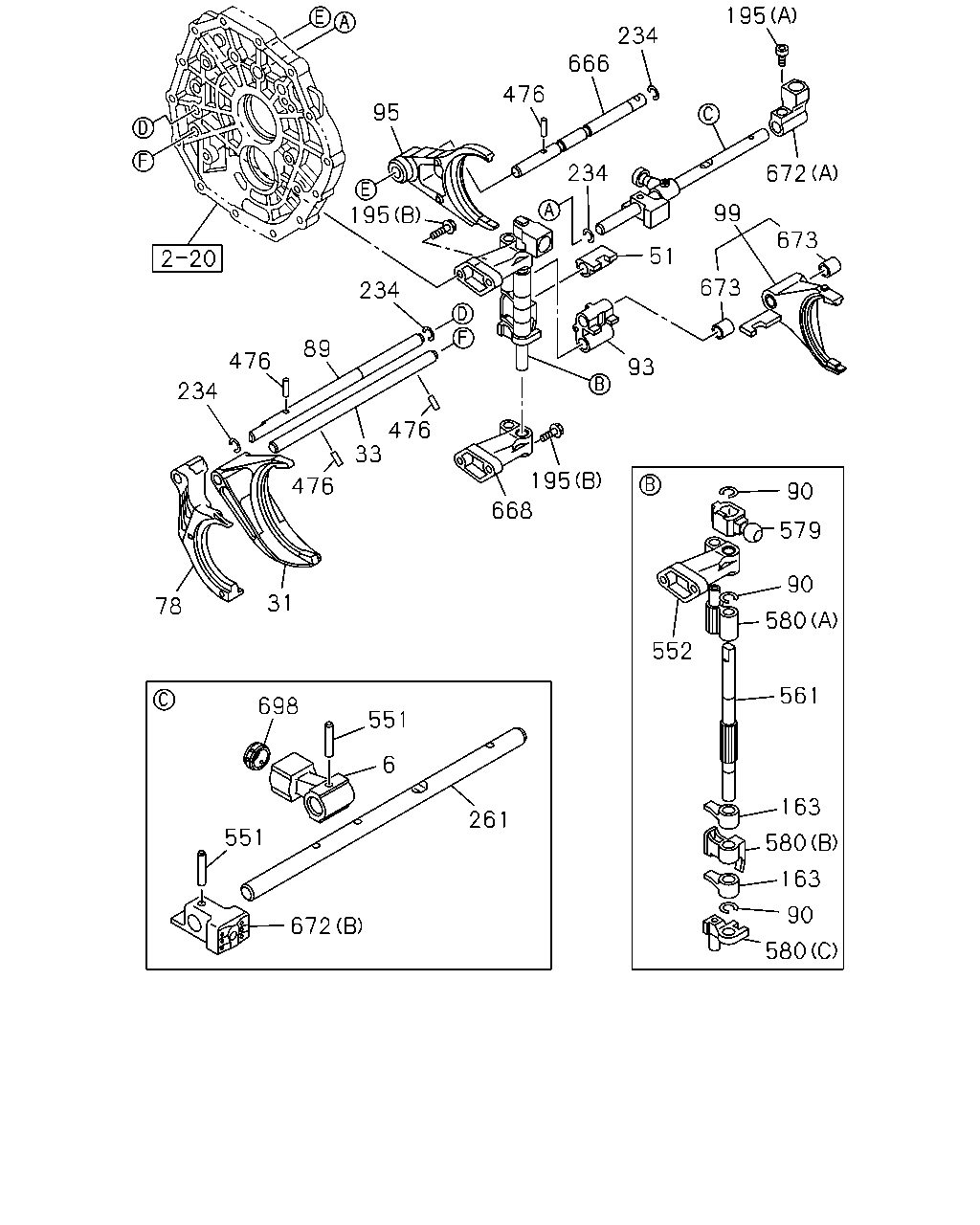

[230A] GEAR SHIFTER (29 parça)
▶
142
665
157
645
171
500
645
645
500
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
142
04.012 BOLT; QUAD BOX
01.060 M8X35 FLANGE
0-28650-835-0
04
1
1406-
157
04.105 BOX; QUAD,TRANS
8-98094-798-1
01
1
1406-
171
04.054 SWITCH; NEUTRAL
8-98180-974-0
01
1
1406-
398
02.698 SWITCH; REV LAMP
8-98180-973-0
01
1
1406-
500
04.075 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0
9-09571-414-0
02
1
1406-
645
04.311 DETENT ASM
(A)
8-97362-469-2
01
1
1406-
645
04.311 DETENT ASM
04.307 (B)
8-98019-536-0
02
1
1406-
665
00.206 DOWEL
OD=11 L=8
9-11229-058-1
02
1
1406-
95
476
666
234
195
234
234
476
89
234
195
476
33
78
31
476
668
195
93
51
99
673
673
672
698
551
6
261
551
672
90
579
90
552
580
561
163
580
163
90
580
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
04.302 LEVER; RELAY
8-98095-658-1
01
1
1406-
31
04.302 ARM; SHIFT,LOW & 2ND
8-97362-435-0
01
1
1406-
33
04.309 ROD; SHIFT,LOW & 2ND
8-97362-441-0
01
1
1406-
51
04.303 BLOCK; SHIFT,1ST & 2ND
04.302
8-98186-703-0
01
1
1406-
78
04.302 ARM; SHIFT,REV
8-97362-434-1
01
1
1406-
89
04.309 ROD; SHIFT,REV
8-98106-032-0
01
1
1406-
90
04.307 RING; SNAP,SHIFT ROD
ID=12
8-94460-357-0
03
1
1406-
93
04.303 BLOCK; SHIFT,REV & 5TH
8-98106-035-0
01
1
1406-
95
04.302 ARM; SHIFT,5TH
8-97362-436-1
01
1
1406-
99
04.302 ARM; SHIFT,4TH & 3RD
04.303
8-97362-439-2
01
1
1406-
163
04.302 LEVER; SELECT,INTERNAL
8-98052-461-0
02
1
1406-
195
04.105 BOLT
(A) M8X8.5 TAPER
8-97250-975-0
01
1
1406-
195
04.105 BOLT
(B) M8X30 FLANGE
8-98034-764-0
04
1
1406-
234
04.311 RING; SNAP
04.307 ID=12
8-94460-357-0
04
1
1406-
261
04.309 ROD; GEAR CONT
8-97362-444-0
01
1
1406-
476
04.311 PIN; SHIFT ROD
04.303 D=4.2 L=25
8-94171-541-0
04
1
1406-
551
04.303 PIN; SPRING
D=4.2 L=25
8-94171-541-0
02
1
1406-
552
04.105 BRACKET
8-97362-465-1
01
1
1406-
561
04.309 ROD; SHIFT
8-98095-659-1
01
1
1406-
579
04.303 BLOCK; SHIFT,ROD GUIDE
8-98095-657-0
01
1
1406-
580
04.303 BLOCK; INTERLOCK
(A)
8-97362-461-1
01
1
1406-
580
04.303 BLOCK; INTERLOCK
(B)
8-98052-462-0
01
1
1406-
580
04.303 BLOCK; INTERLOCK
(C)
8-98186-700-0
01
1
1406-
666
04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH
8-97362-442-2
01
1
1406-
668
04.309 BRACKET; SHIFT ROD
04.105
8-97362-465-1
01
1
1406-
672
04.303 BLOCK; SHIFT,T/M CONTROL
(A)
8-97362-467-0
01
1
1406-
672
04.303 BLOCK; SHIFT,T/M CONTROL
(B)
8-98095-689-1
01
1
1406-
673
04.309 BEARING; SHIFT ARM
00.683
8-97362-853-0
02
1
1406-
698
04.303 SEAT; SHIFT CONT
04.307
8-98073-812-0
01
1
1406-
