2-25 — SPEEDOMETER DRIVEN GEAR (#141214) — 12 parça

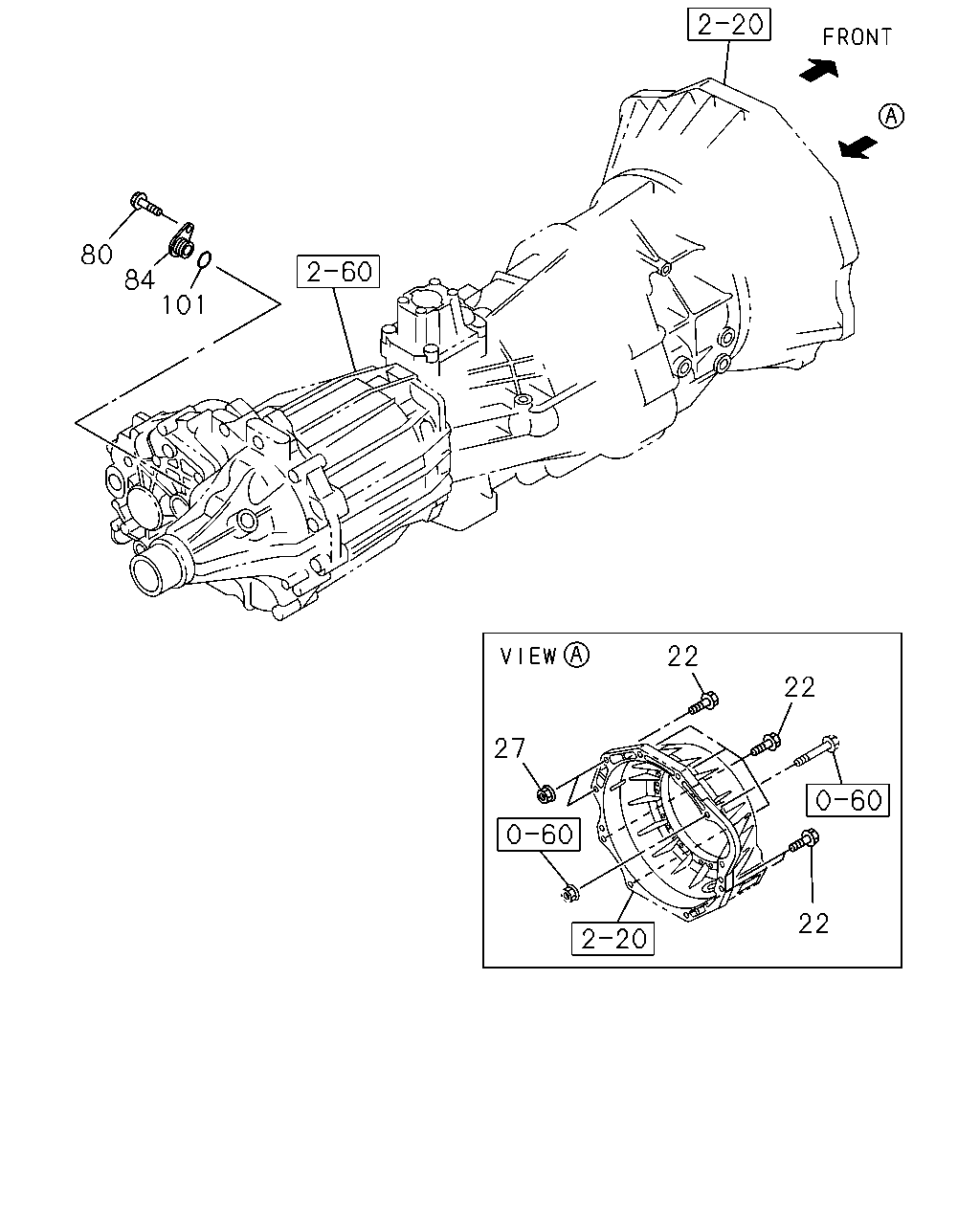

çizim 426012

80 84 101 22 27 22 22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	00.685 BOLT; TRANS CASE TO ENG 00.724 M12X50 FLANGE	0-28051-250-0	08	1	1406-	●	●
	27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1406-	●	●
	80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1406-	●	●
	84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***)	8-98103-318-0	01	1	1406-	●	●
	101	04.338 GASKET; CAP 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1406-	●	●

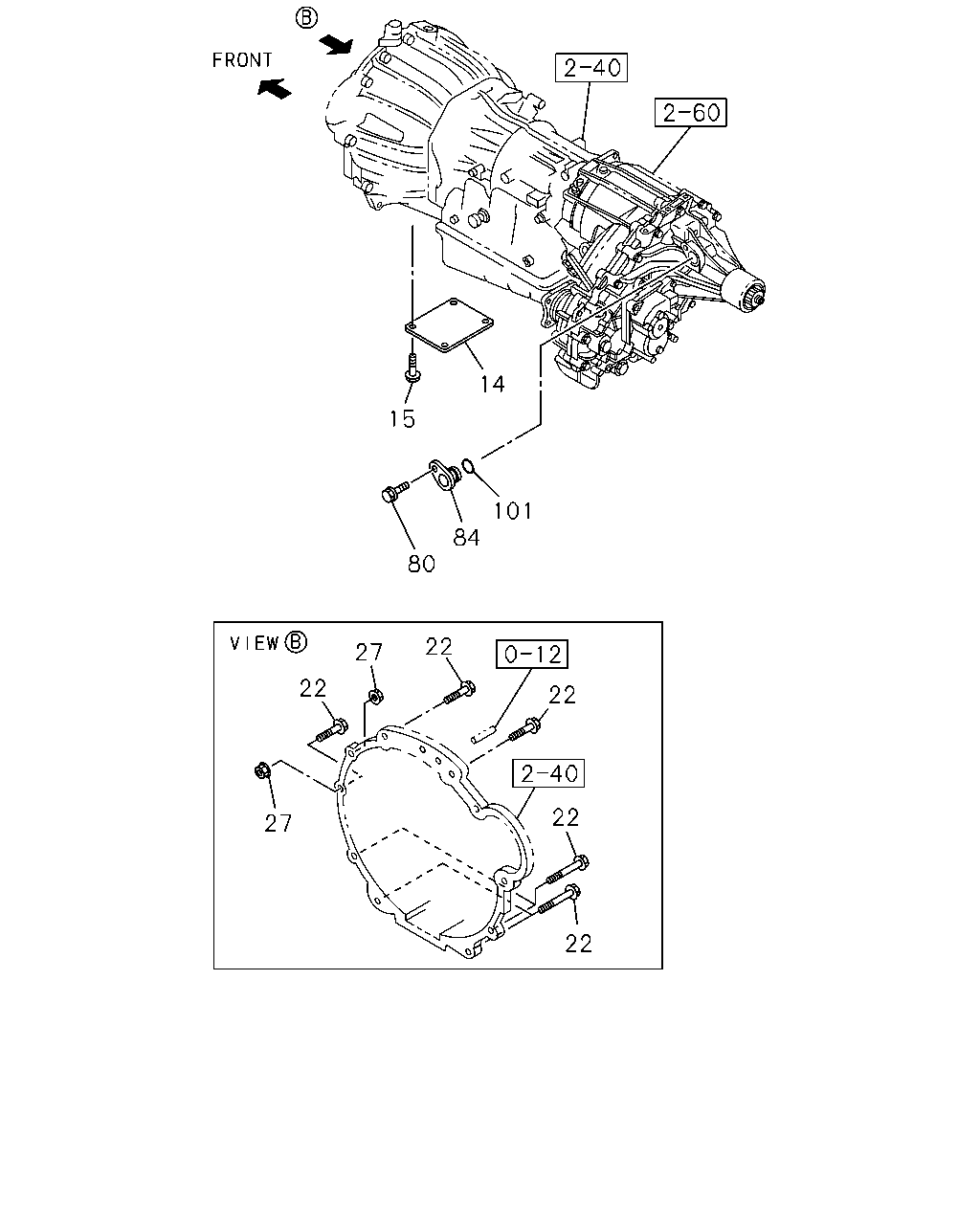

çizim 426235

15 14 101 84 80 22 27 22 27 22 22 22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	14	00.679 COVER; UNDER,TRANS	8-98049-857-0	01	1	1406-	●
	15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1406-	●
	22	00.685 BOLT; TRANS CASE TO ENG 00.724 M12X50 FLANGE	0-28051-250-0	08	1	1406-	●	●
	27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1406-	●	●
	80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1406-	●	●
	84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***)	8-98103-318-0	01	1	1406-	●	●
	101	04.338 GASKET; CAP 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1406-	●	●
