2-20 — MANUAL TRANSMISSION ASM AND CASE (#141213) — 118 parça

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

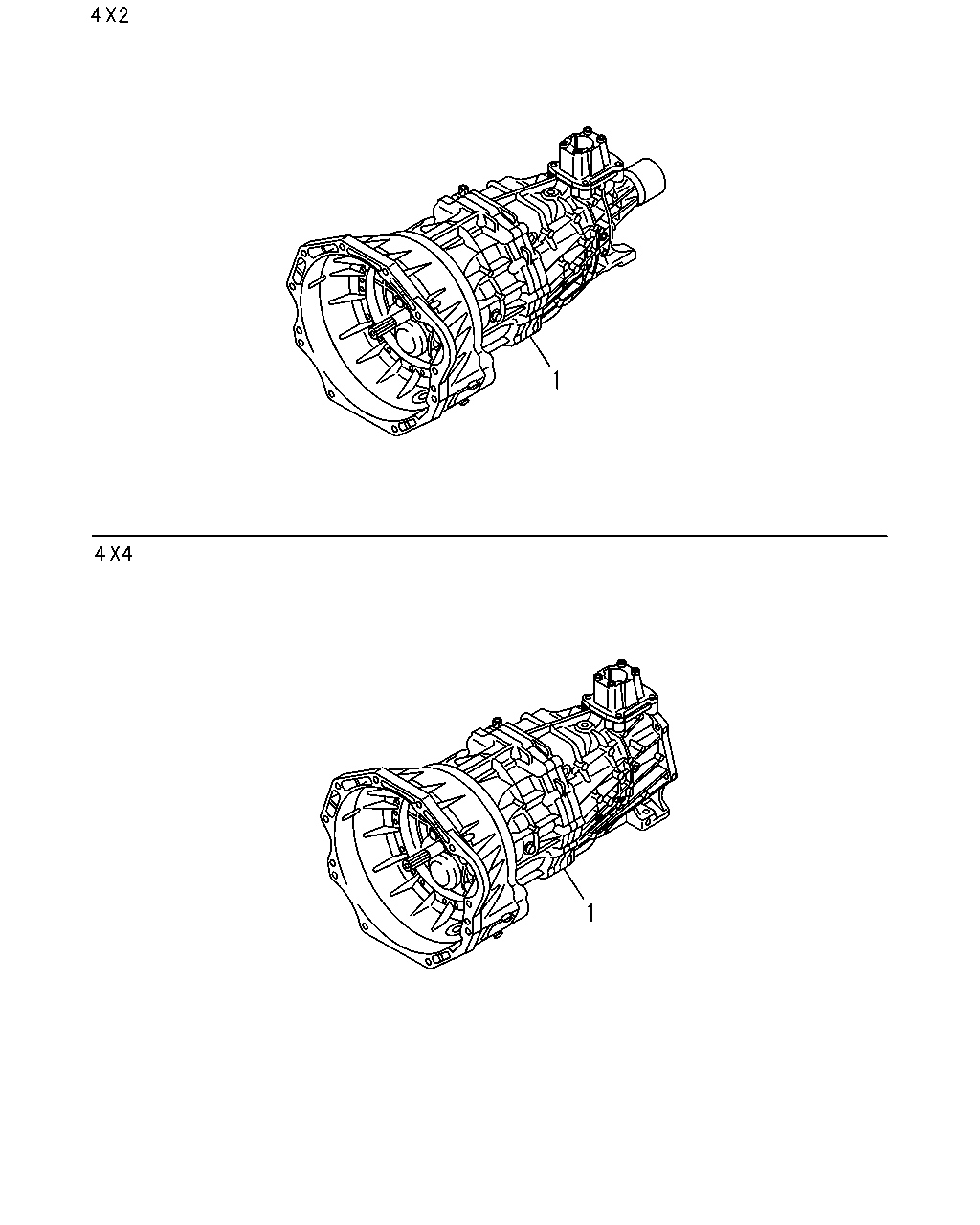

	1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98087-608-0	01	1	1406-	●
	1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98102-382-0	01	1	1406-	●

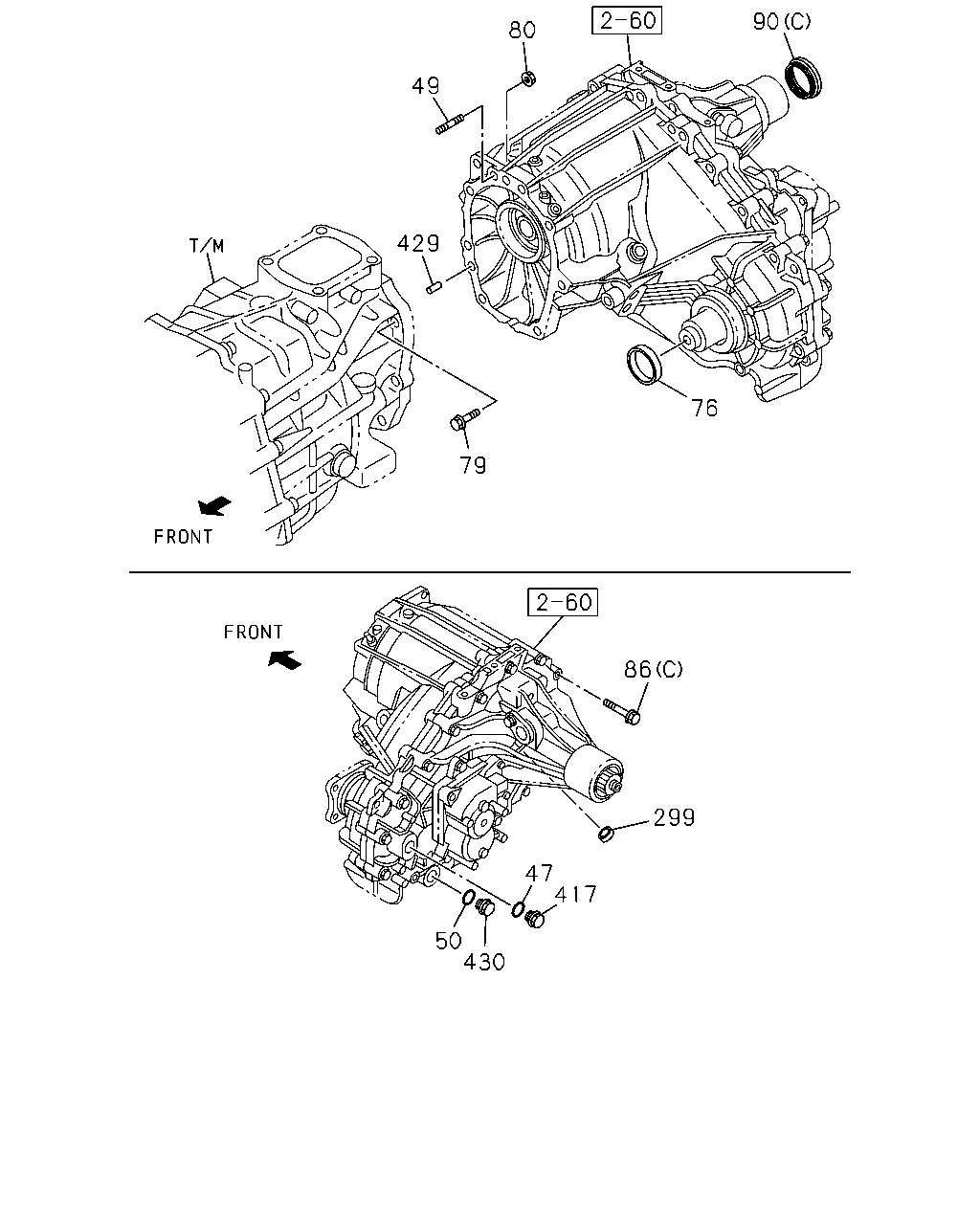

80 49 90 76 79 429 86 299 417 47 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1406-	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1406-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1406-	●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1406-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1406-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1406-	●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1406-	●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1406-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1406-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1406-	●	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 OD=15.6	8-94173-641-0	02	1	1406-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1406-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1406-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 OD=10 L=20	8-97135-423-0	02	1	1406-	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1406-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1406-		●

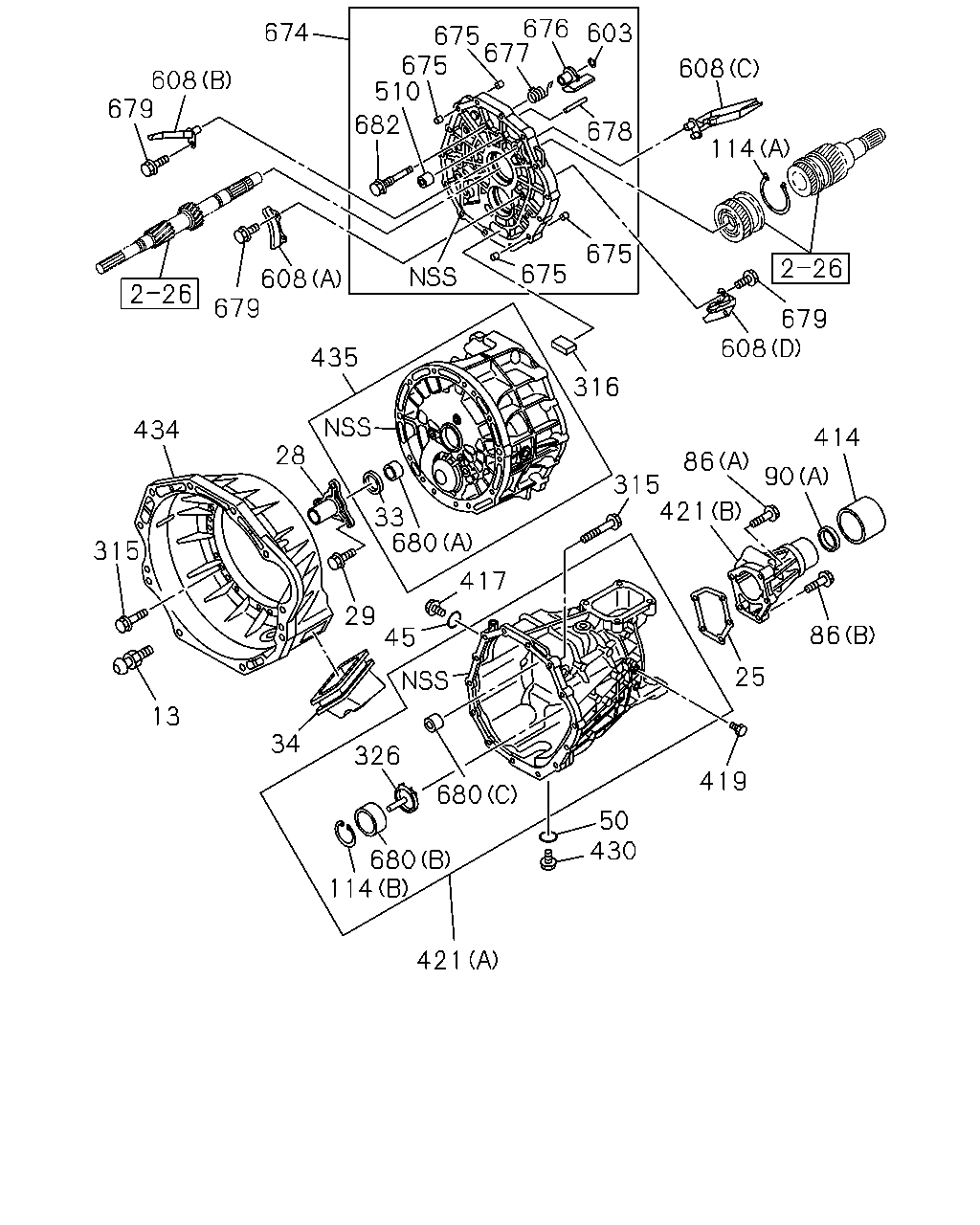

608 679 679 608 435 28 434 315 13 34 29 33 680 45 417 315 316 50 430 421 114 680 680 326 419 421 86 86 90 608 679 114 608 678 675 675 676 603 677 675 675 510 682 674

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1406-	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1406-	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1406-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1406-	●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1406-	●
45	04.105 GASKET; FILLER PLUG ID=17	8-97115-712-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1406-		●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1406-	●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1406-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1406-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1406-	●	●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1406-	●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1406-	●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1406-	●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1406-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1406-	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1406-	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1406-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1406-		●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98108-411-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1406-	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1406-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1406-		●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1406-	●
435	04.103 CASE; TRANS	8-98108-317-1	01	1	1406-	●
510	00.683 BEARING	8-97362-853-0	01	1	1406-	●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1406-	●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1406-	●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1406-	●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1406-	●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1406-	●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1406-	●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1406-	●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1406-	●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1406-	●
678	04.317 PIN	9-08160-436-0	01	1	1406-	●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1406-	●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1406-	●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1406-	●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1406-	●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1406-	●

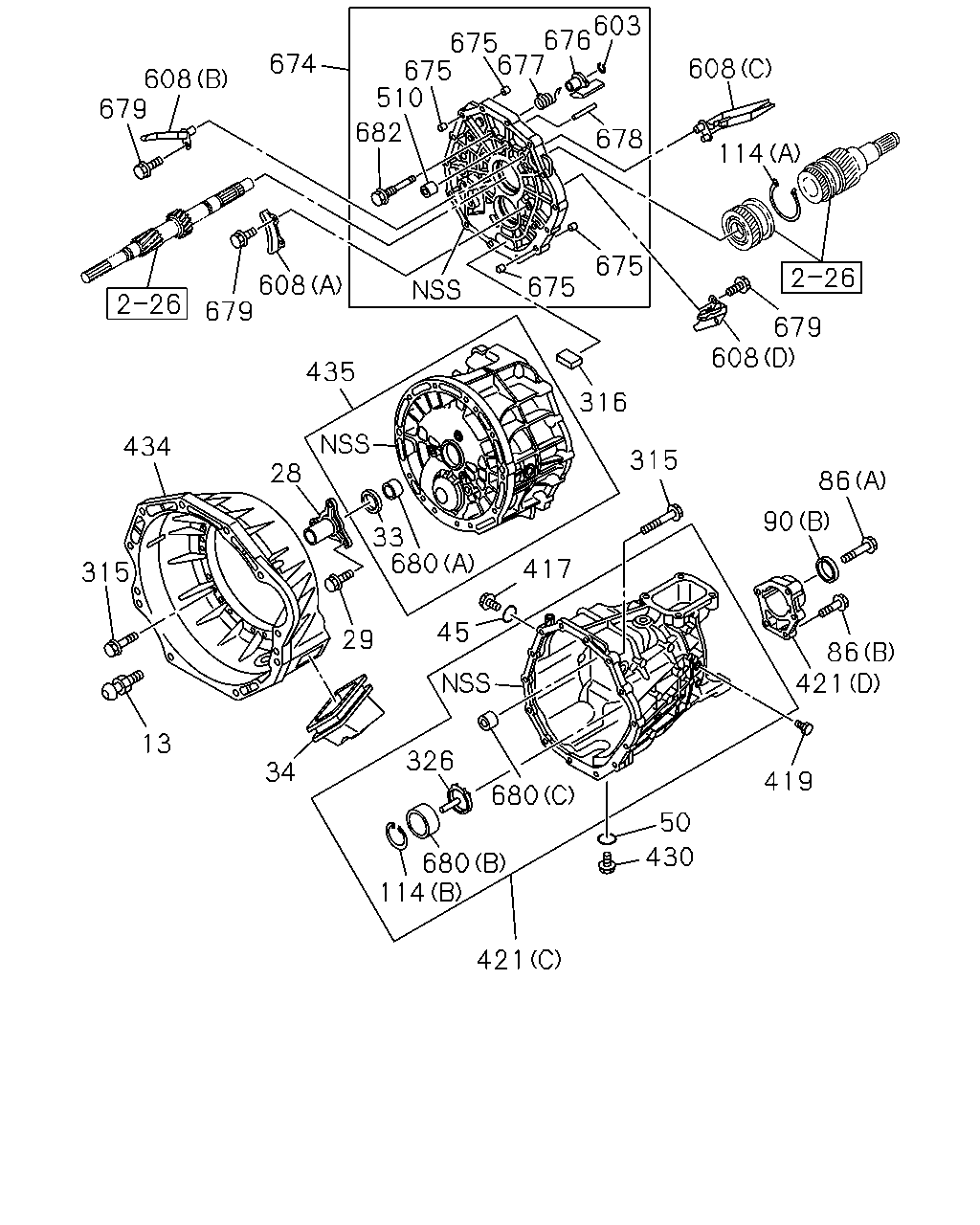

674 608 679 679 608 435 28 434 315 13 34 29 33 417 680 45 326 680 680 114 421 50 430 419 25 414 90 86 421 315 86 316 675 603 678 675 676 677 675 675 510 682 608 114 679 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1406-	●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-98004-774-0	01	1	1406-	●
28	04.356 COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1406-	●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1406-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1406-	●
34	00.686 COVER; DUST,SHIFT FORK 00.859	8-98097-470-0	01	1	1406-	●
45	04.105 GASKET; FILLER PLUG ID=17	8-97115-712-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1406-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1406-		●
86	04.317 BOLT; RR COVER 00.386 (A) M8X50 FLANGE	0-28050-850-0	02	1	1406-	●
86	04.317 BOLT; RR COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1406-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1406-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) JTEKT	8-98004-531-0	01	1	1406-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1406-	●	●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1406-	●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1406-	●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	14	1	1406-	●
315	04.104 BOLT; CASE 16.069 M8X35 FLANGE	8-98046-876-0	11	1	1406-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1406-	●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1406-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1406-	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1406-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1406-		●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (A)	8-98108-318-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98108-411-0	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97362-423-1	01	1	1406-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98108-319-0	01	1	1406-	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1406-	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1406-		●
434	00.683 HOUSING; CLU	8-98108-316-0	01	1	1406-	●
435	04.103 CASE; TRANS	8-98108-317-1	01	1	1406-	●
510	00.683 BEARING	8-97362-853-0	01	1	1406-	●
603	04.317 RING; SNAP	8-98039-270-0	01	1	1406-	●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	1406-	●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	1406-	●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	1406-	●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	1406-	●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	1406-	●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	1406-	●
676	04.439 INHIBITOR	8-98037-604-1	01	1	1406-	●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	1406-	●
678	04.317 PIN	9-08160-436-0	01	1	1406-	●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1406-	●
680	00.683 BEARING (A)	8-97362-720-1	01	1	1406-	●
680	00.683 BEARING (C)	8-97362-853-0	01	1	1406-	●
680	00.683 BEARING (B)	8-98024-431-0	01	1	1406-	●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1406-	●
