Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#14121) — 259 parça

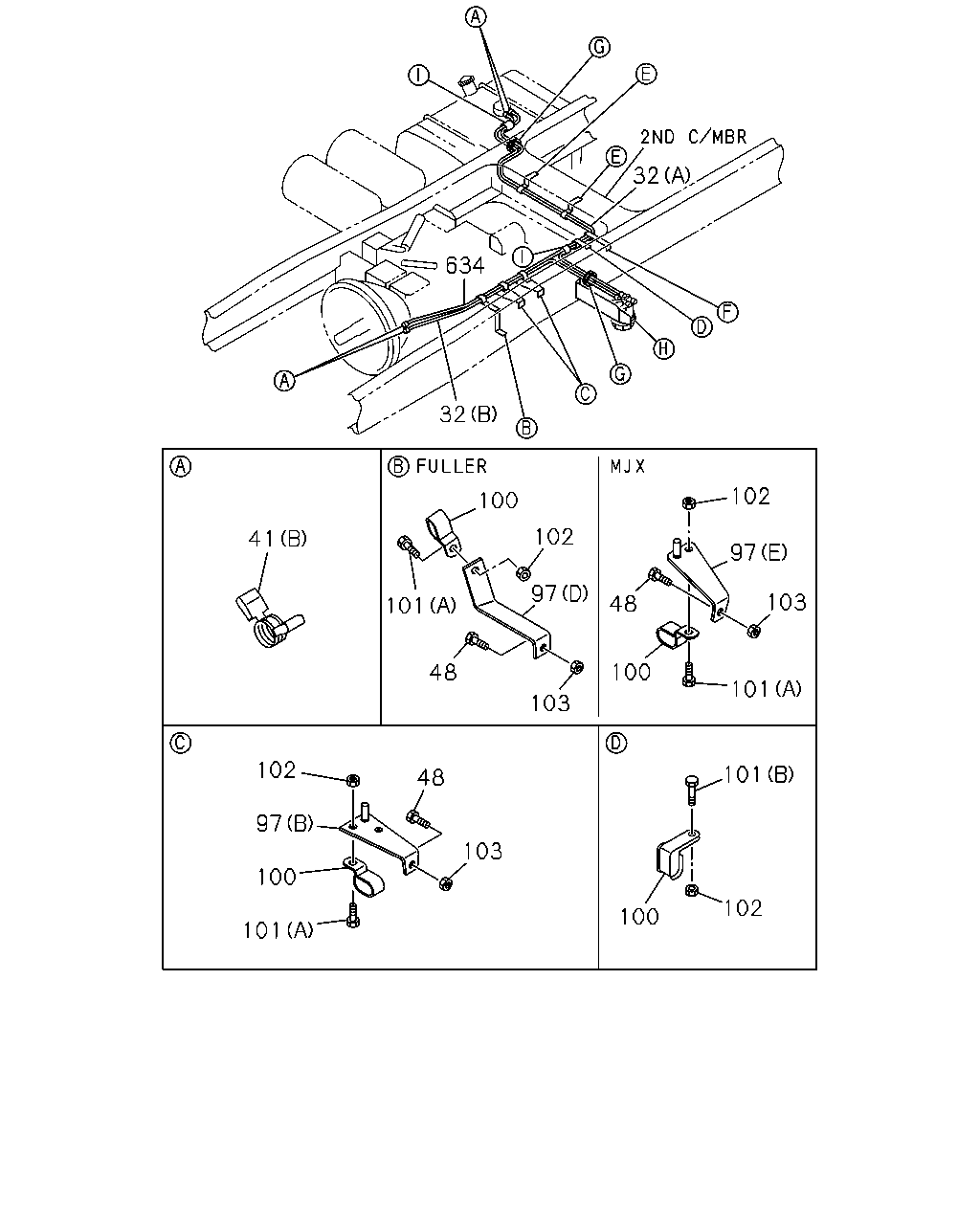

32 634 32 102 100 102 41 97 97 103 48 101 100 48 101 103 102 101 48 97 103 100 102 100 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1108-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0812-1107	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1108-	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5100MM(51W) (A) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2450 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
32	PIPE; DELIVERY,FUEL TANK MJX12P M/T SMOOTHER-G(Y4S) (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0710-0711	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0712-0810	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0811-1109	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0712-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-1107	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-1107		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109	●
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0710-	●	●
48	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	02	1	0812-	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0803-		●
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0810	●
48	BOLT; BRKT WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	02	1	0811-	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0710-0802	●	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0803-0810	●
48	BOLT; BRKT WHEEL BASE 5100MM(51W) M8X30 FLANGE	0-28650-830-0	06	1	0811-	●
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H) L=68	1-47475-525-0	01	1	1108-	●
97	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47479-723-0	01	1	0812-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	01	1	0710-0711	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0712-0802	●	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0803-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A) L=65	1-47479-064-1	02	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	03	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	03	1	0811-	●
97	BRACKET; CLIP (G)	8-98091-934-0	01	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (G)	8-98091-934-0	01	1	0811-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0710-0711		●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-0810	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	0811-1107	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	1-47479-723-0	02	1	0811-1107		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	1108-	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1108-		●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	01	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0712-	●	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	0710-0711	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	08	1	0712-0810	●
100	CLIP; FUEL PIPE WHEEL BASE 5100MM(51W) ID=14X29 H=15 L=20	1-09700-744-0	08	1	0811-	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0710-0711		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	06	1	0712-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	07	1	0710-0711	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	08	1	0712-0810	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) (A) M8X20 FLANGE	0-28650-820-0	08	1	0811-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-		●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0810	●	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-	●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	0710-0711	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	10	1	0712-0810	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	10	1	0811-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	08	1	0710-		●
103	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0710-0711	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-0810	●
103	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	08	1	0811-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0710-0802		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0710-	●
634	HOSE; RUBBER RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●

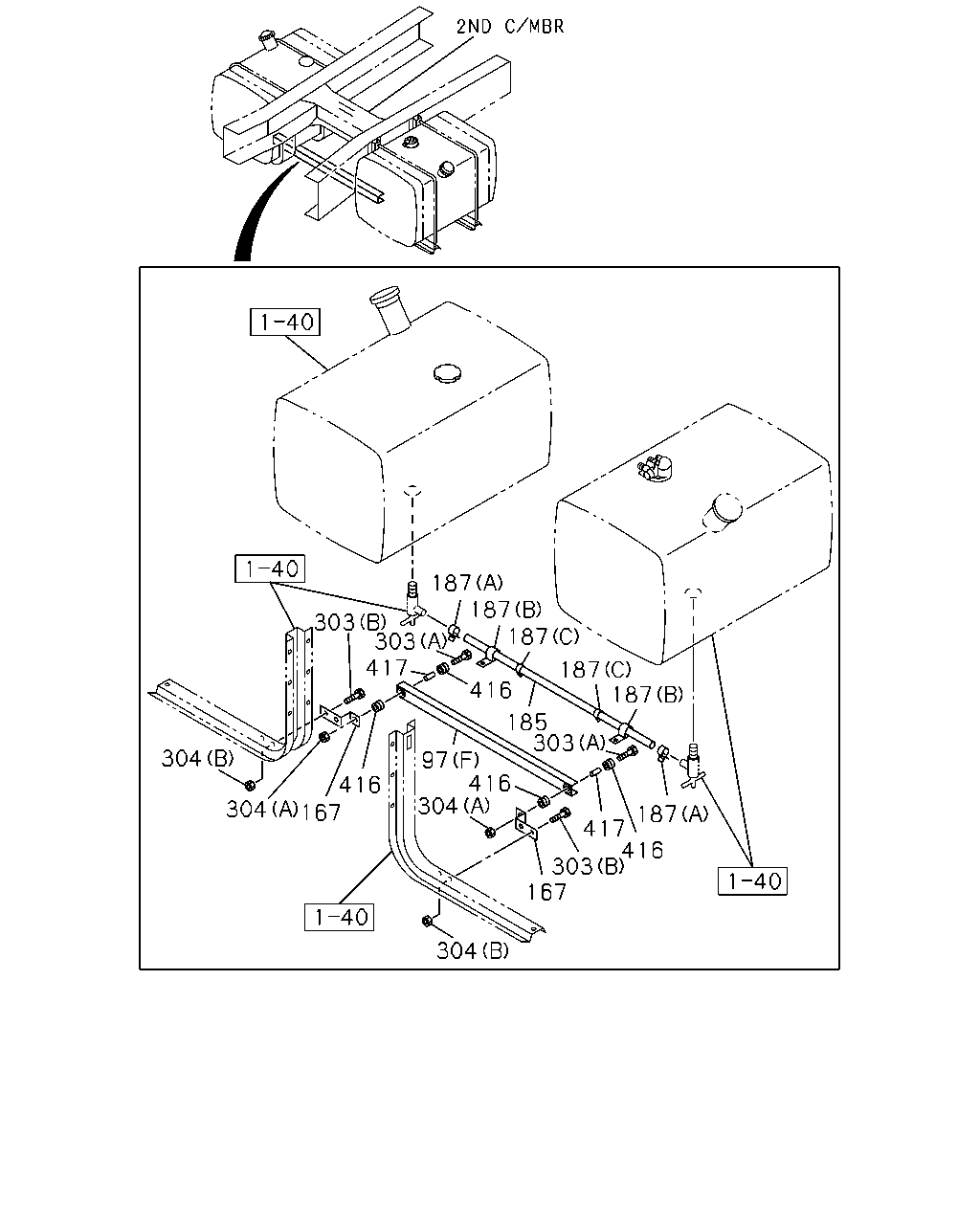

187 187 187 303 303 417 187 187 416 185 303 304 97 416 304 416 167 304 187 417 416 303 167 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H) L=68	1-47475-525-0	01	1	1108-	●
97	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47479-723-0	01	1	0812-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	01	1	0710-0711	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0712-0802	●	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0803-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A) L=65	1-47479-064-1	02	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	03	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	03	1	0811-	●
97	BRACKET; CLIP (G)	8-98091-934-0	01	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (G)	8-98091-934-0	01	1	0811-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0710-0711		●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-0810	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	0811-1107	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	1-47479-723-0	02	1	0811-1107		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	1108-	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1108-		●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	01	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●	●
167	BRACKET FUEL TANK 400L+400L<NAR>	1-47478-031-0	02	1	0710-	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 400L+400L<NAR> L=1650 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 L=50	0-95235-886-0	02	1	0710-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	0710-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	0710-	●	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-	●	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (B) M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
416	RUBBER; SUPPORT FUEL TANK 400L+400L<NAR> OD=40	1-22159-094-0	04	1	0710-	●	●
417	TUBE; DISTANCE,BRKT FUEL TANK 400L+400L<NAR> L=22	9-22159-024-0	02	1	0710-	●	●

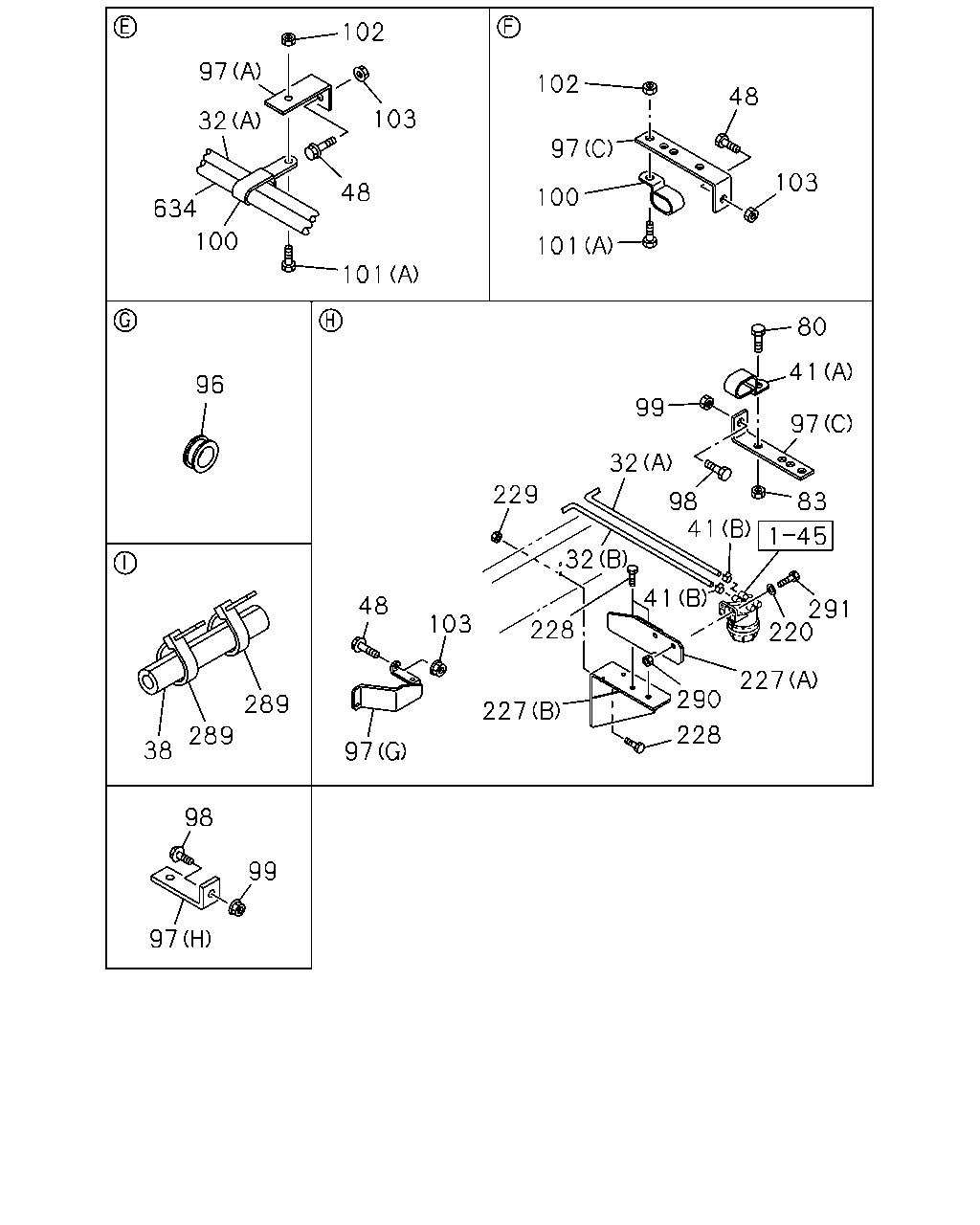

102 97 102 48 103 32 97 103 48 100 634 100 101 101 80 41 96 99 97 32 229 83 98 41 32 41 48 291 220 228 103 227 290 289 227 228 289 38 97 98 99 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1108-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0812-1107	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1108-	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5100MM(51W) (A) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2450 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
32	PIPE; DELIVERY,FUEL TANK MJX12P M/T SMOOTHER-G(Y4S) (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1108-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0810	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5100MM(51W) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0811-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0811		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0812-1107	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0812-1107		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1108-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1108-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0710-0711	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0712-0810	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0811-1109	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0710-0711		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0712-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-1107	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-1107		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109	●
41	CLIP; FUEL PIPE,FUEL TANK EURO5 SPECIFICATION<NT5> (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0710-	●	●
48	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	02	1	0812-	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0803-		●
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0810	●
48	BOLT; BRKT WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	02	1	0811-	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0710-0802	●	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0803-0810	●
48	BOLT; BRKT WHEEL BASE 5100MM(51W) M8X30 FLANGE	0-28650-830-0	06	1	0811-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0810	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8X20 FLANGE	0-28650-820-0	02	1	0811-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-1107		●
80	BOLT; CLIP,FUEL TANK EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28650-820-0	01	1	1108-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1108-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-0810	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	02	1	0811-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1107		●
83	NUT; CLIP,FUEL TANK EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	01	1	1108-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1108-		●
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 4500MM(45W) ID=32 OD=40 T=18	1-09891-003-0	01	1	0812-	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	02	1	0710-0810	●	●
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 5100MM(51W) ID=32 OD=40 T=18	1-09891-003-0	02	1	0811-	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	02	1	0811-		●
97	BRACKET; CLIP EURO5 SPECIFICATION<NT5> (H) L=68	1-47475-525-0	01	1	1108-	●
97	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47479-723-0	01	1	0812-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	01	1	0710-0711	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0712-0802	●	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0803-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A) L=65	1-47479-064-1	02	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	03	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	03	1	0811-	●
97	BRACKET; CLIP (G)	8-98091-934-0	01	1	0710-0810	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (G)	8-98091-934-0	01	1	0811-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-	●
97	BRACKET; CLIP (A) L=65	1-47479-064-0	02	1	0710-0711		●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-0810	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	0811-1107	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	1-47479-723-0	02	1	0811-1107		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	1-47479-723-0	02	1	1108-	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1108-		●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-0810		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (C)	1-82698-358-0	01	1	0811-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C)	1-82698-358-0	01	1	0811-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●	●
98	BOLT; BRKT,FUEL PIPE EURO5 SPECIFICATION<NT5> M8X35 FLANGE	0-28650-835-0	01	1	1108-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0710-0810	●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5100MM(51W) M8X30 FLANGE	0-28650-830-0	03	1	0811-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0810	●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	03	1	0811-	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0712-	●	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	0710-0711	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	08	1	0712-0810	●
100	CLIP; FUEL PIPE WHEEL BASE 5100MM(51W) ID=14X29 H=15 L=20	1-09700-744-0	08	1	0811-	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0710-0711		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	06	1	0712-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	07	1	0710-0711	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	08	1	0712-0810	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) (A) M8X20 FLANGE	0-28650-820-0	08	1	0811-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-		●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0810	●	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-	●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	0710-0711	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	10	1	0712-0810	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	10	1	0811-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	08	1	0710-		●
103	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0710-0711	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0712-0810	●
103	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	08	1	0811-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0710-0802		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-		●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0710-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	8-98079-082-0	01	1	0710-1107	●	●
227	BRACKET; FUEL SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98079-082-0	01	1	1108-	●
227	BRACKET; FUEL SEDIMENTER (A)	8-98079-082-0	01	1	1108-		●
227	BRACKET; FUEL SEDIMENTER (B)	8-98079-083-0	01	1	0710-1107	●	●
227	BRACKET; FUEL SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	8-98079-083-0	01	1	1108-	●
227	BRACKET; FUEL SEDIMENTER (B)	8-98079-083-0	01	1	1108-		●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28051-035-0	04	1	0710-1107	●	●
228	BOLT; BRKT,SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE	0-28051-035-0	04	1	1108-	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28051-035-0	04	1	1108-		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0710-1107	●	●
229	NUT; BRKT,FUEL FILTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE	0-91180-210-0	02	1	1108-	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	1108-		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> L=250	5-09707-030-1	02	1	1108-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	05	1	0710-0810	●
289	CLIP; BAND,HOSE WHEEL BASE 5100MM(51W) L=250	5-09707-030-1	05	1	0811-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0710-0811		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W) L=250	5-09707-030-1	04	1	0812-1107	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0812-1107		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=250	5-09707-030-1	04	1	1108-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1108-		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
291	BOLT; FILER TO BRKT EURO5 SPECIFICATION<NT5> M10X60 FLANGE	0-28051-060-0	02	1	1108-	●
291	BOLT; FILER TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0710-1107	●	●
291	BOLT; FILER TO BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE	0-28051-035-0	02	1	1108-	●
291	BOLT; FILER TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1108-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0710-	●
634	HOSE; RUBBER RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
