Sayfa 1-40 - Isuzu EPC

304 314 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98217-428-0	01	1	1406-
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98222-044-1	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-273-0	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98206-450-0	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98222-041-0	01	1	1406-
422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1406-

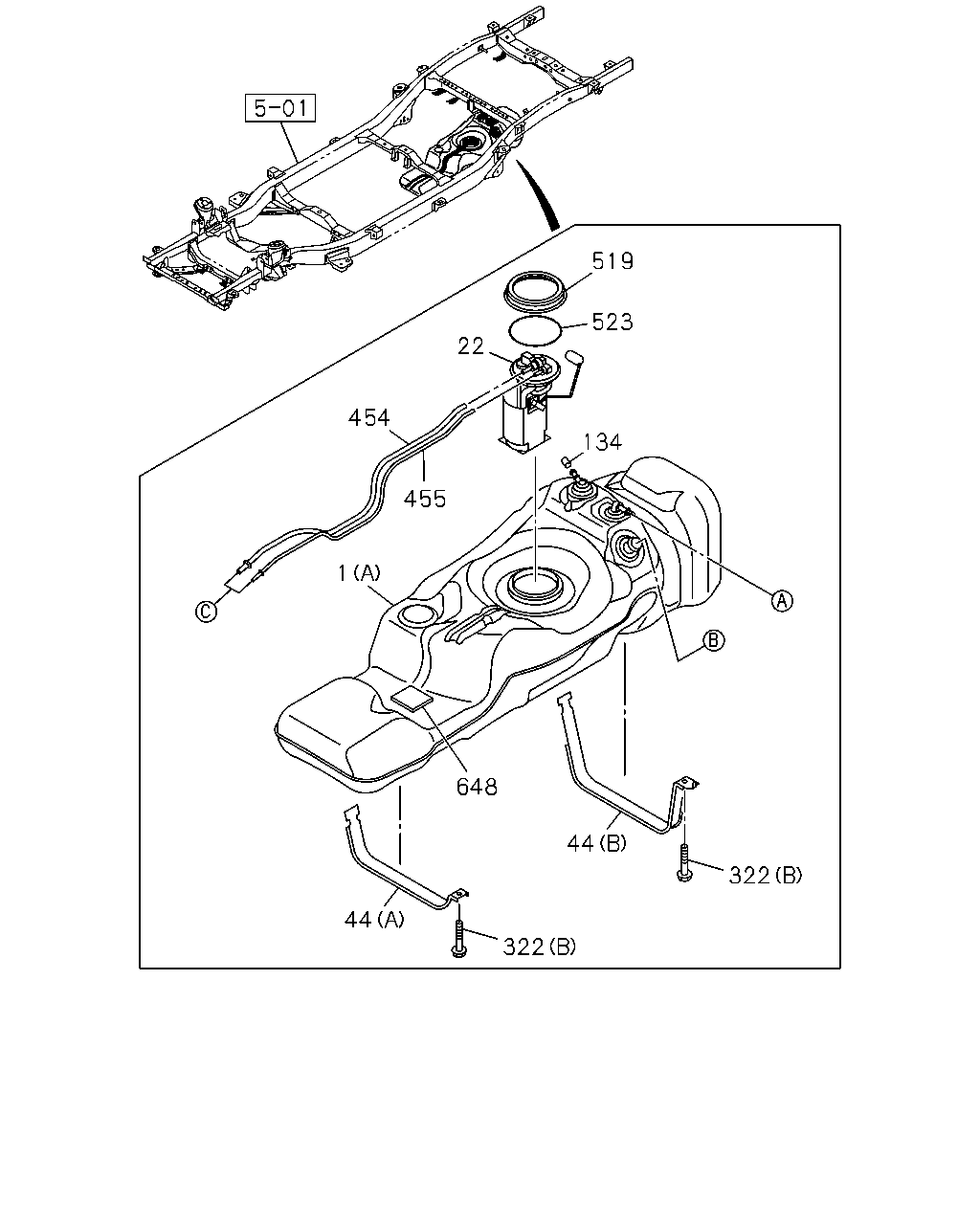

519 523 22 134 455 454 1 648 44 322 322 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 4X2(TFB***) (A) 76L	8-97947-077-3	01	1	1406-
1	03.001 TANK; FUEL 4X4(TFS***) (B) 76L	8-97947-758-0	01	1	1406-
22	03.107 UNIT; FUEL TANK	8-97947-151-3	01	1	1406-
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1406-
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1406-
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1406-
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1406-
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1406-
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1406-
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1406-
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1406-
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1406-
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1406-
648	03.001 RUBBER	8-98191-468-0	01	1	1406-

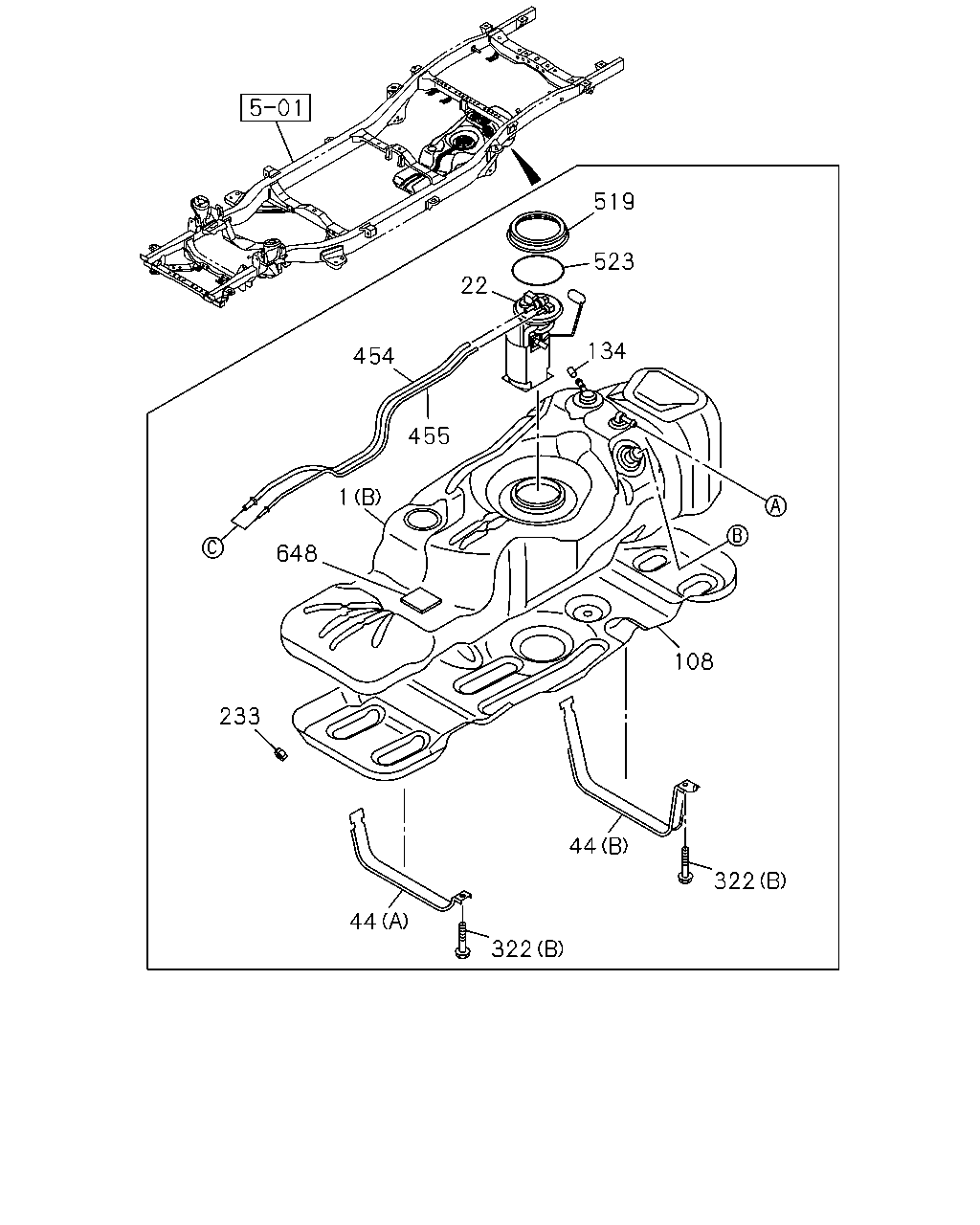

519 523 134 22 454 455 1 648 233 44 322 44 322 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 4X2(TFB***) (A) 76L	8-97947-077-3	01	1	1406-
1	03.001 TANK; FUEL 4X4(TFS***) (B) 76L	8-97947-758-0	01	1	1406-
22	03.107 UNIT; FUEL TANK	8-97947-151-3	01	1	1406-
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1406-
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1406-
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***)	8-97947-155-2	01	1	1406-
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1406-
233	03.023 NUT; UNDER COVER 4X4(TFS***)	8-97947-757-0	02	1	1406-
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1406-
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1406-
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1406-
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1406-
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1406-
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1406-
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1406-
648	03.001 RUBBER	8-98191-468-0	01	1	1406-

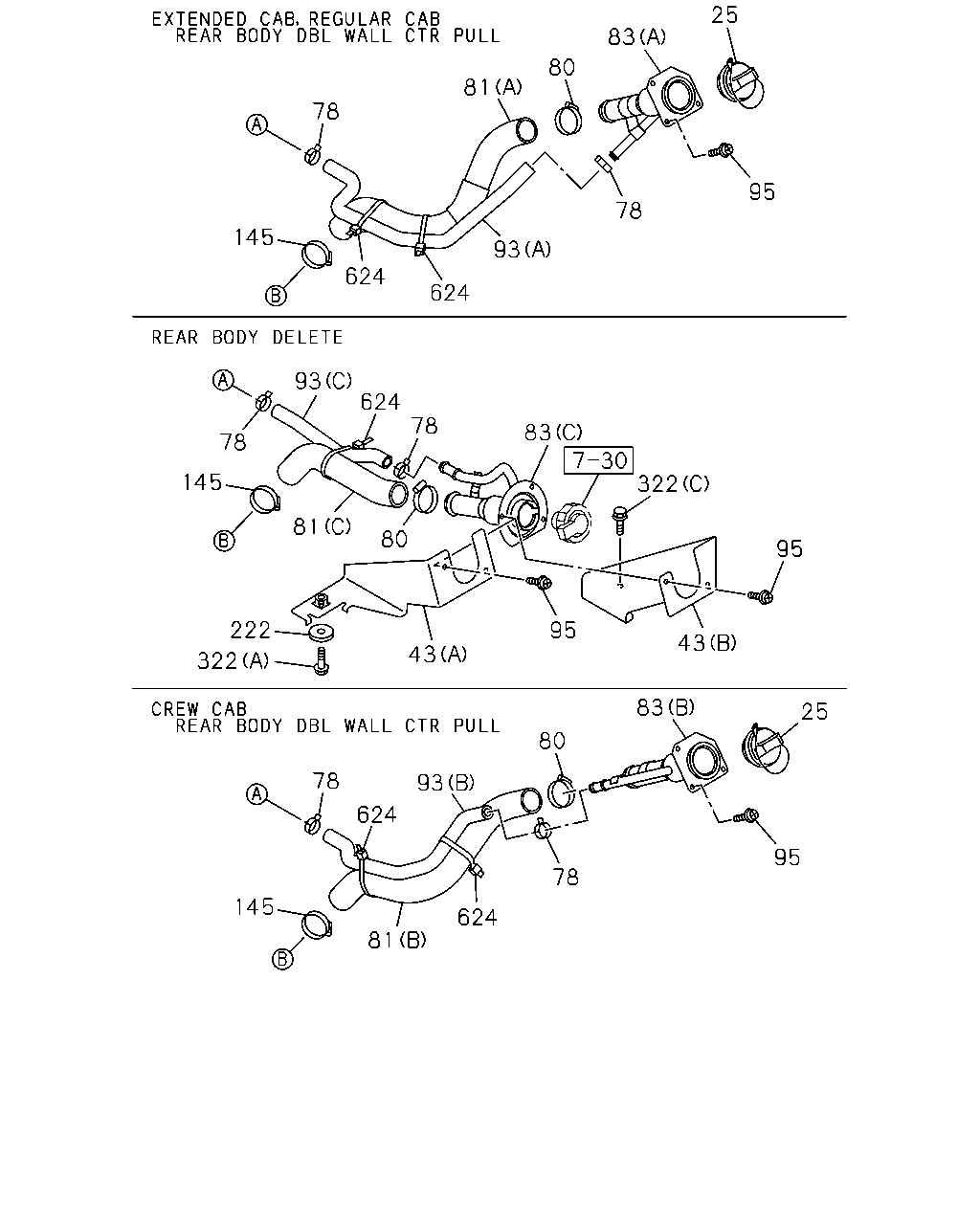

78 145 624 624 93 78 95 25 83 80 81 93 78 145 81 80 78 624 83 322 95 43 95 43 222 322 83 25 95 78 80 93 78 624 145 81 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1406-1510
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-
43	03.015 BRACKET; FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1406-
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1406-
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1406-
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1406-
80	03.008 CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1406-
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1406-
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1406-
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1406-
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1406-
83	03.003 NECK; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1406-
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1406-
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1406-
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1406-
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1406-
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1406-
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1406-
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1406-
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1406-
222	03.023 WASHER; BRKT,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1406-
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1406-
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1406-
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1406-
624	03.162 CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330	5-09709-118-0	02	1	1406-
624	03.162 CLIP; BAND REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	01	1	1406-

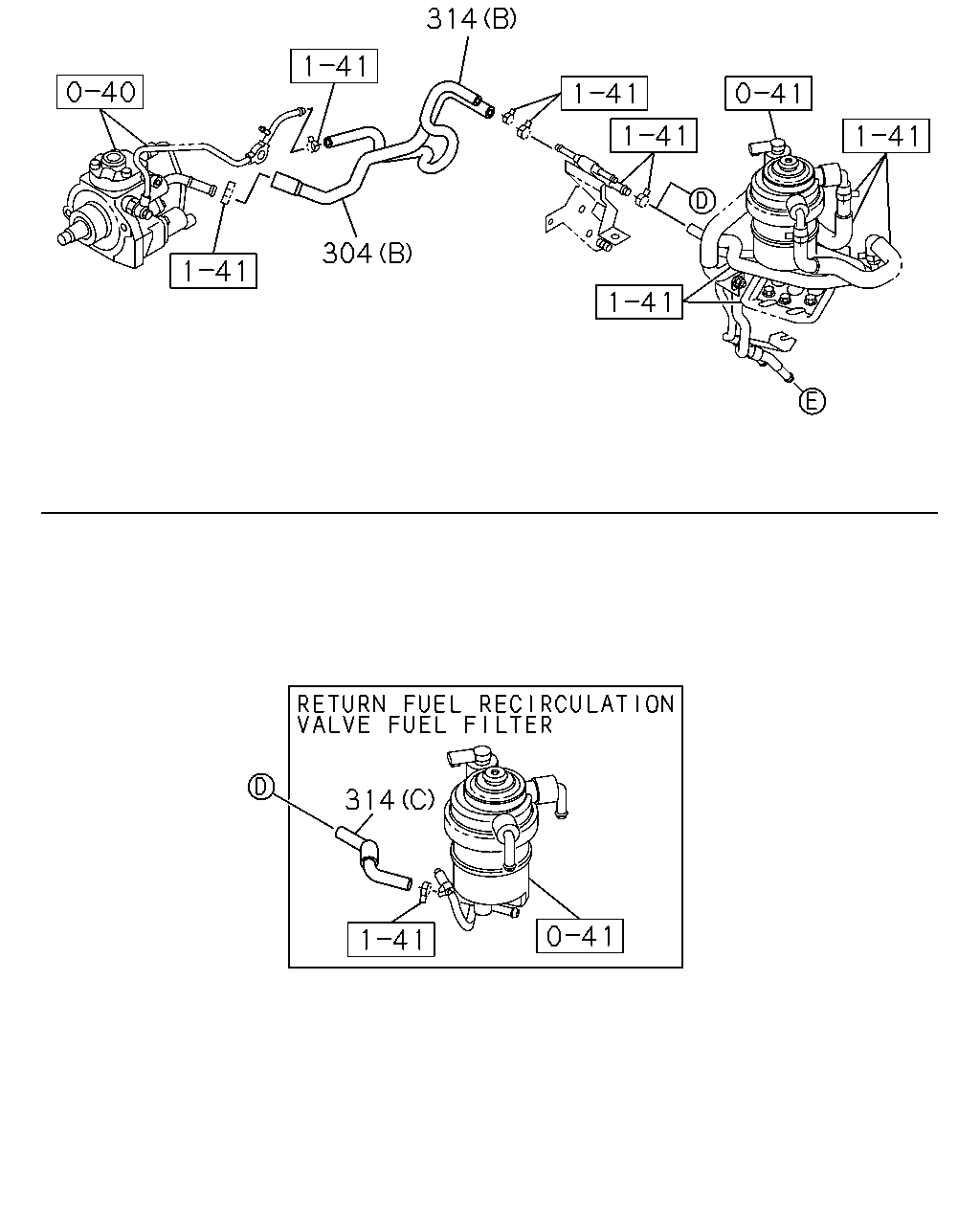

314 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98217-428-0	01	1	1406-
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98222-044-1	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-273-0	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98206-450-0	01	1	1406-
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98222-041-0	01	1	1406-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
