◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#141201) — 26 parça

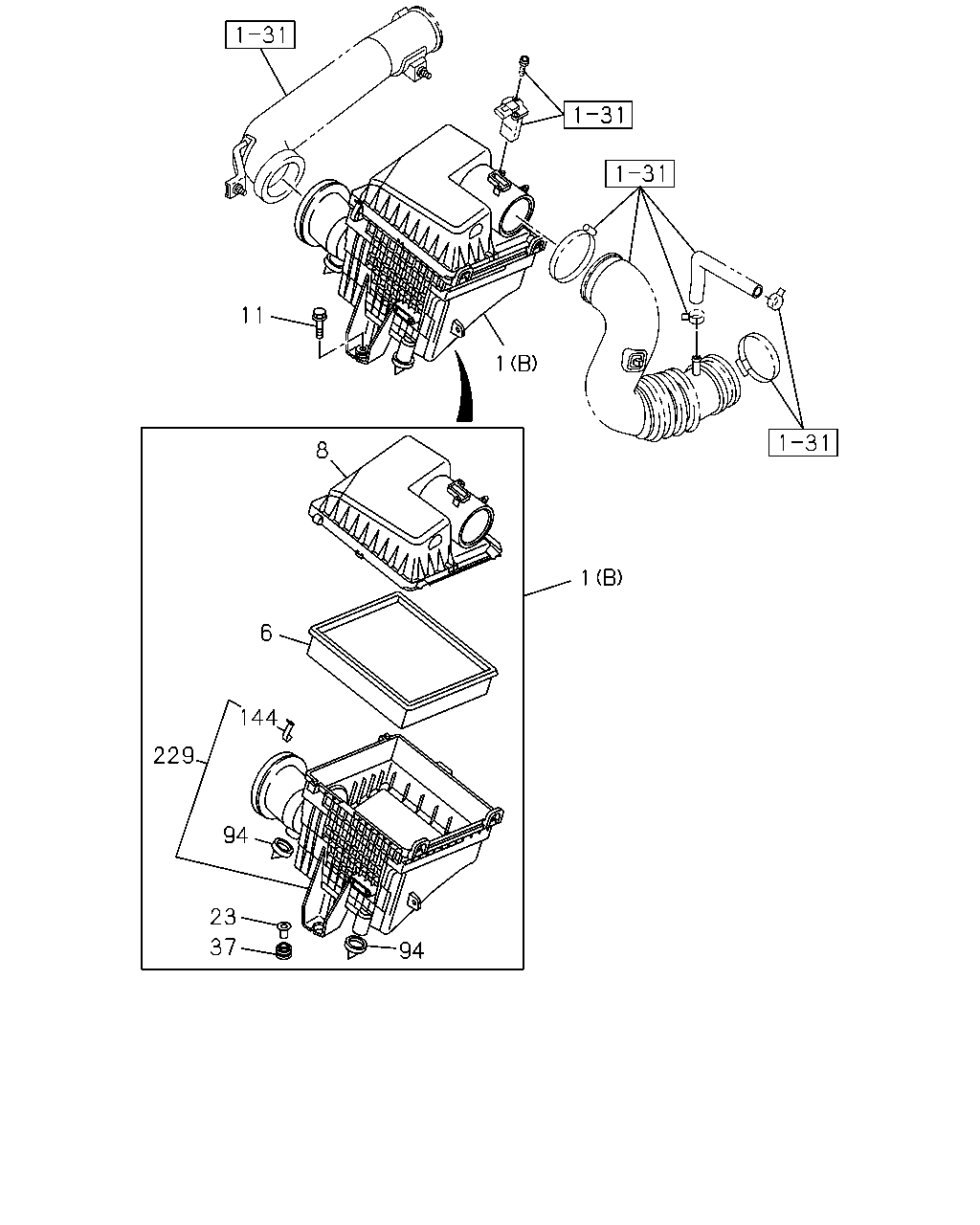

çizim 426133
94 37 23 94 144 229 6 8 1 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1406-
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1406-
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1406-
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1406-
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1406-
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1406-
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1406-
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1406-
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1406-
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1406-
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1406-
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1406-
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1406-
çizim 426134
94 37 23 144 229 6 8 1 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1406-
1 03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1406-
6 03.410 FILTER; ACL 8-98140-265-0 01 1 1406-
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1406-
8 03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1406-
11 03.403 BOLT; ACL
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1406-
23 03.405 COLLAR; ACL STAY 8-98140-270-0 03 1 1406-
37 03.406 RUBBER; MTG,ACL 8-98140-269-0 03 1 1406-
94 03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1406-
94 03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1406-
144 03.403 CLIP; ACL 8-97324-624-0 02 1 1406-
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1406-
229 03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
