Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

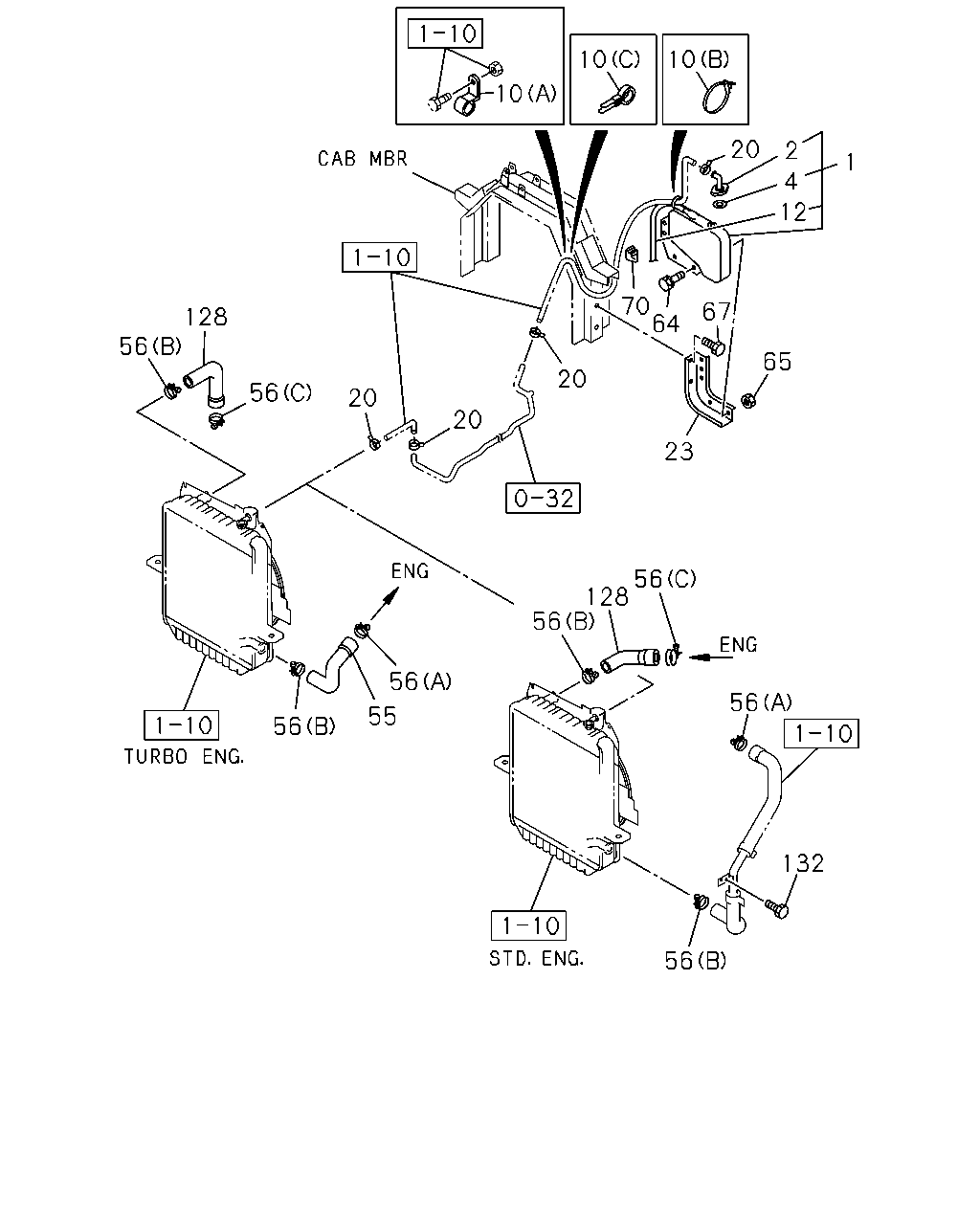

1-11 — RADIATOR HOSE AND SUB TANK
(#1412) — 22 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
10
10
10
20
2
1
4
12
70
64
67
128
56
65
20
56
20
20
23
56
128
56
56
56
55
56
132
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9203-
●
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9203-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9203-
●
●
10
CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20
1-09700-606-0
01
1
9203-
●
●
10
CLIP; RUBBER HOSE
(B) L=140
5-09707-031-0
01
1
9203-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14 L=44
9-09917-427-0
01
1
9203-
●
●
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9203-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9203-
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9203-
●
●
55
HOSE; WATER,RAD OUTLET
1-21437-280-1
01
1
9203-
●
56
CLIP; WATER HOSE,RAD
(A) ID=68
1-09704-074-0
01
1
9203-
●
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
02
1
9203-
●
●
56
CLIP; WATER HOSE,RAD
(C) ID=76
1-09704-069-0
01
1
9203-
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=70
1-09704-078-0
01
1
9203-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9203-
●
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9203-
●
●
67
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9203-
●
●
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9203-9405
●
●
128
HOSE; WATER,RAD INL
1-21437-201-2
01
1
9203-
●
128
HOSE; WATER,RAD INL
1-21437-260-2
01
1
9203-
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X16 W/LK WASHER
9-01900-816-0
02
1
9203-9204
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X16 W/LK WASHER
0-50040-816-0
02
1
9205-
●
