◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51513 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#141183) — 11 parça

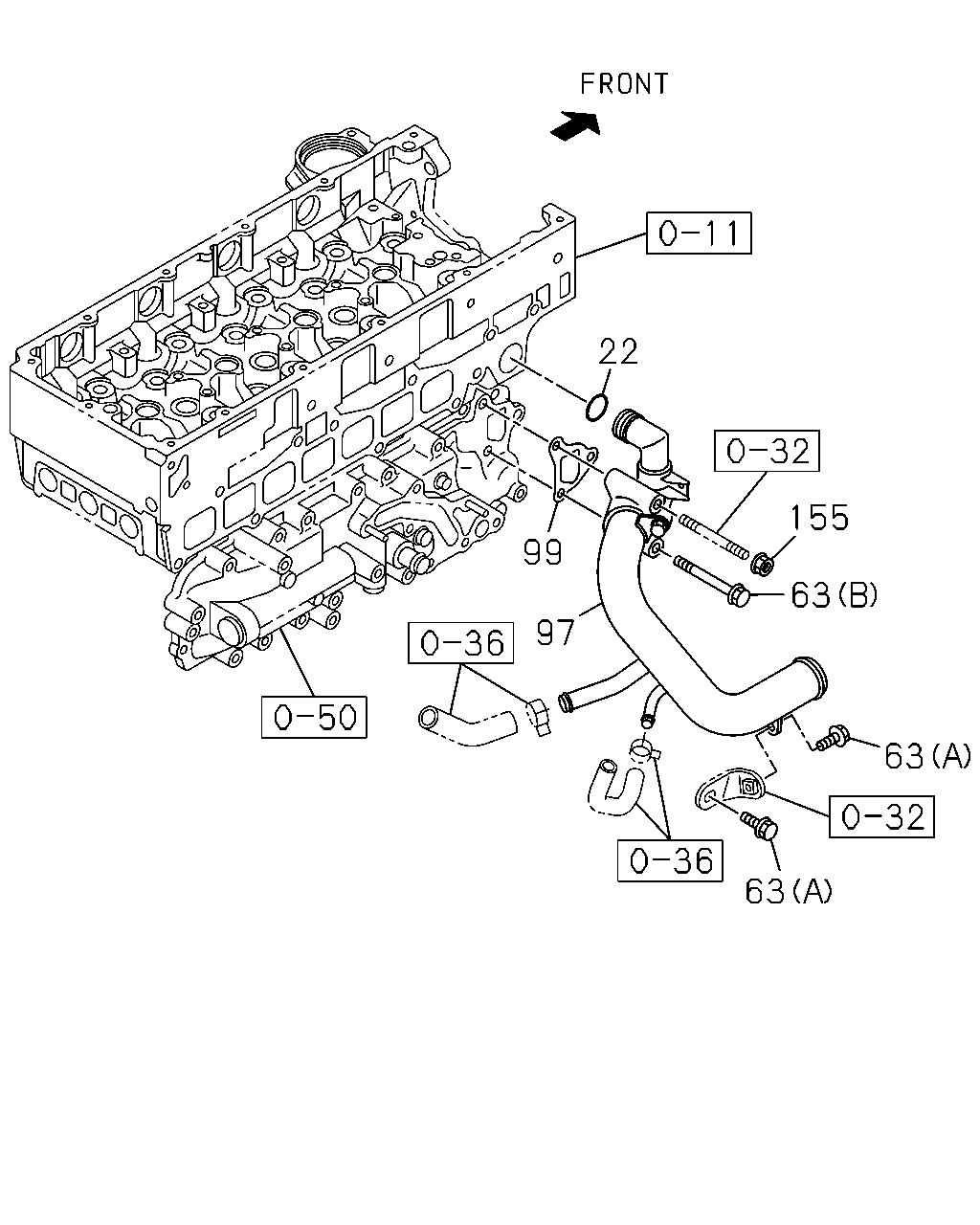

çizim 426090
22 99 155 63 63 63 97
BalonParca AdiParca NoAdetTipApplied Date
22 01.079 GASKET
01.159 		0-95690-226-0 01 1 1406-
63 01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1406-
63 01.073 BOLT; INL PIPE
01.252 (B) M8X80 FLANGE 		0-28050-880-0 01 1 1406-
97 01.097 PIPE; WATER 8-98228-420-1 01 1 1406-
99 01.097 GASKET; WATER PIPE 8-98233-994-0 01 1 1406-
155 01.097 NUT; PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1406-

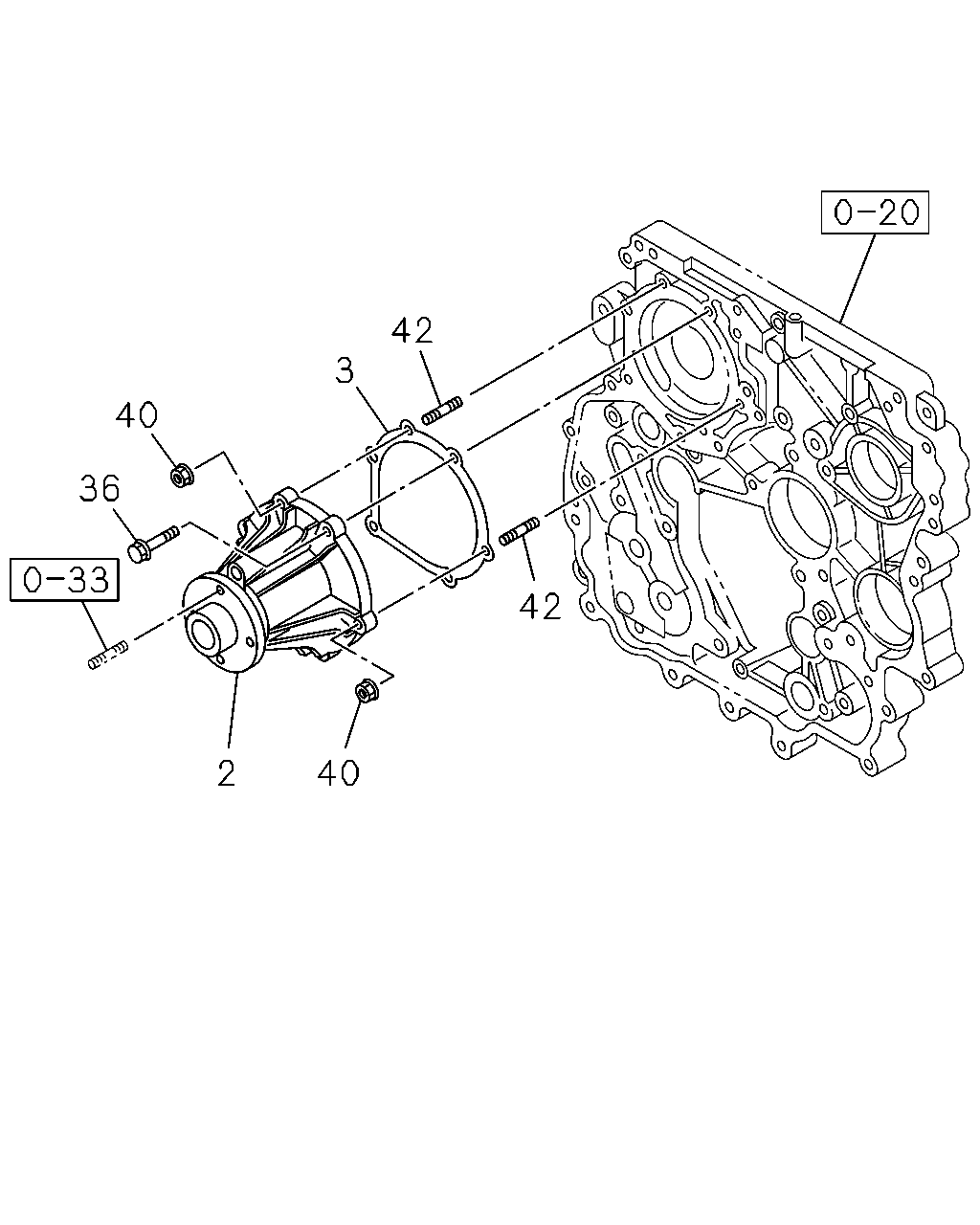

çizim 426095
42 3 40 36 2 40 42
BalonParca AdiParca NoAdetTipApplied Date
2 01.069 PUMP ASM; WATER 8-97312-147-4 01 1 1406-
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1406-
36 00.386 BOLT; WATER PUMP TO C/BL
M8X50 FLANGE 		0-28050-850-0 04 1 1406-
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1406-
42 01.073 STUD; WATER PUMP
M8X22 L=40 		0-49140-822-0 02 1 1406-
