Isuzu WW
▶
PICKUP
▶
TFR
▶
51513 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

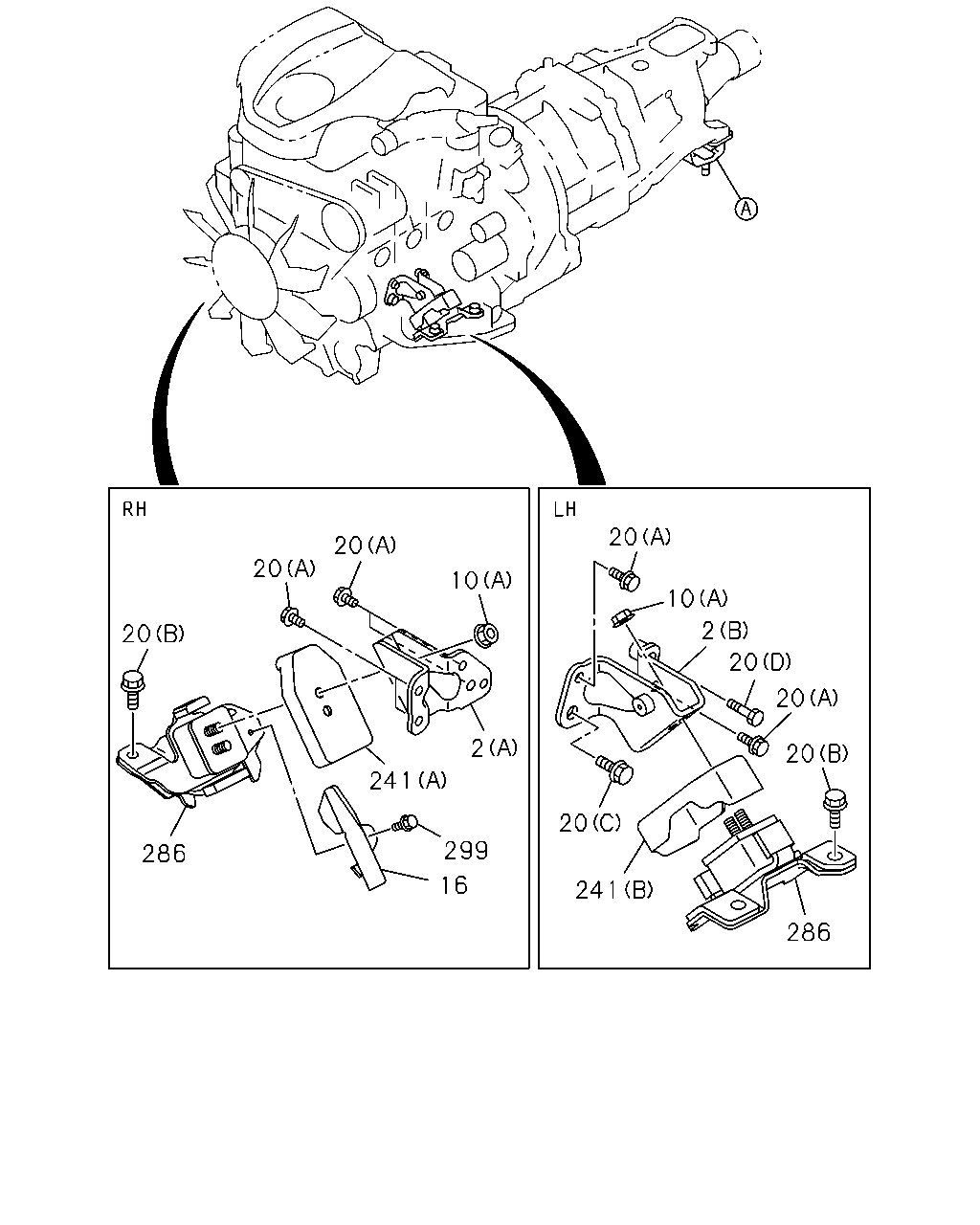

0-22 — ENGINE MOUNTING
(#141180) — 39 parça
◀
[022A] FRONT (21 parça)
[022A] REAR (18 parça)
▶
20
20
10
20
286
241
2
299
16
241
20
286
20
20
20
2
10
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
00.029 FOOT; ENG
(A)
8-98132-100-0
01
1
1406-
2
00.029 FOOT; ENG
(B)
8-98132-101-0
01
1
1406-
10
04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE
0-91180-212-0
02
1
1406-
10
04.085 NUT; MTG RUBBER
(A) M10 FLANGE
0-91180-210-0
04
1
1406-
16
07.039 PROTECTOR; HEAT,ENG MTG,FRT
8-98182-916-1
01
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE
0-28751-035-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE
0-28751-035-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE
0-28051-020-0
06
1
1406-
20
00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE
0-28851-420-0
01
1
1406-
20
00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER
0-50741-035-0
01
1
1406-
20
00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE
8-98013-800-0
04
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE
0-28651-025-0
04
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE
8-98035-672-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE
0-28650-835-0
04
1
1406-
241
00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (A)
8-98101-956-2
01
1
1406-
241
00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (B)
8-98101-957-1
01
1
1406-
241
00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A)
8-98194-507-1
01
1
1406-
241
00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B)
8-98194-508-1
01
1
1406-
286
00.027 MOUNTING ASM; ENGINE
8-98075-376-2
01
1
1406-
286
00.027 MOUNTING ASM; ENGINE
8-98250-592-0
01
1
1406-
299
00.029 BOLT
03.671 M6X10 FLANGE
0-28050-610-0
01
1
1406-
20
78
52
10
52
20
10
20
52
20
20
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE
0-91180-212-0
02
1
1406-
10
04.085 NUT; MTG RUBBER
(A) M10 FLANGE
0-91180-210-0
04
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE
0-28751-035-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE
0-28751-035-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE
0-28051-020-0
06
1
1406-
20
00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE
0-28851-420-0
01
1
1406-
20
00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER
0-50741-035-0
01
1
1406-
20
00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE
8-98013-800-0
04
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE
0-28651-025-0
04
1
1406-
20
00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE
8-98035-672-0
02
1
1406-
20
00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE
0-28650-835-0
04
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (C)
8-98193-343-0
01
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (A)
8-98193-342-0
01
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) A/T 5 SPEED-AISIN(MA1) (B)
8-98193-346-0
01
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) M/T MUX 5 SPEED 5S(MZJ) (C)
8-98193-345-0
01
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) (B)
8-98238-913-0
01
1
1406-
52
00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUX 5 SPEED 5S(MZJ) (C)
8-98238-912-0
01
1
1406-
78
00.029 BRACKET; ENG MTG,RR
4X2(TFB***) A/T 5 SPEED-AISIN(MA1)
8-98164-580-2
01
1
1406-
