◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#14118) — 77 parça

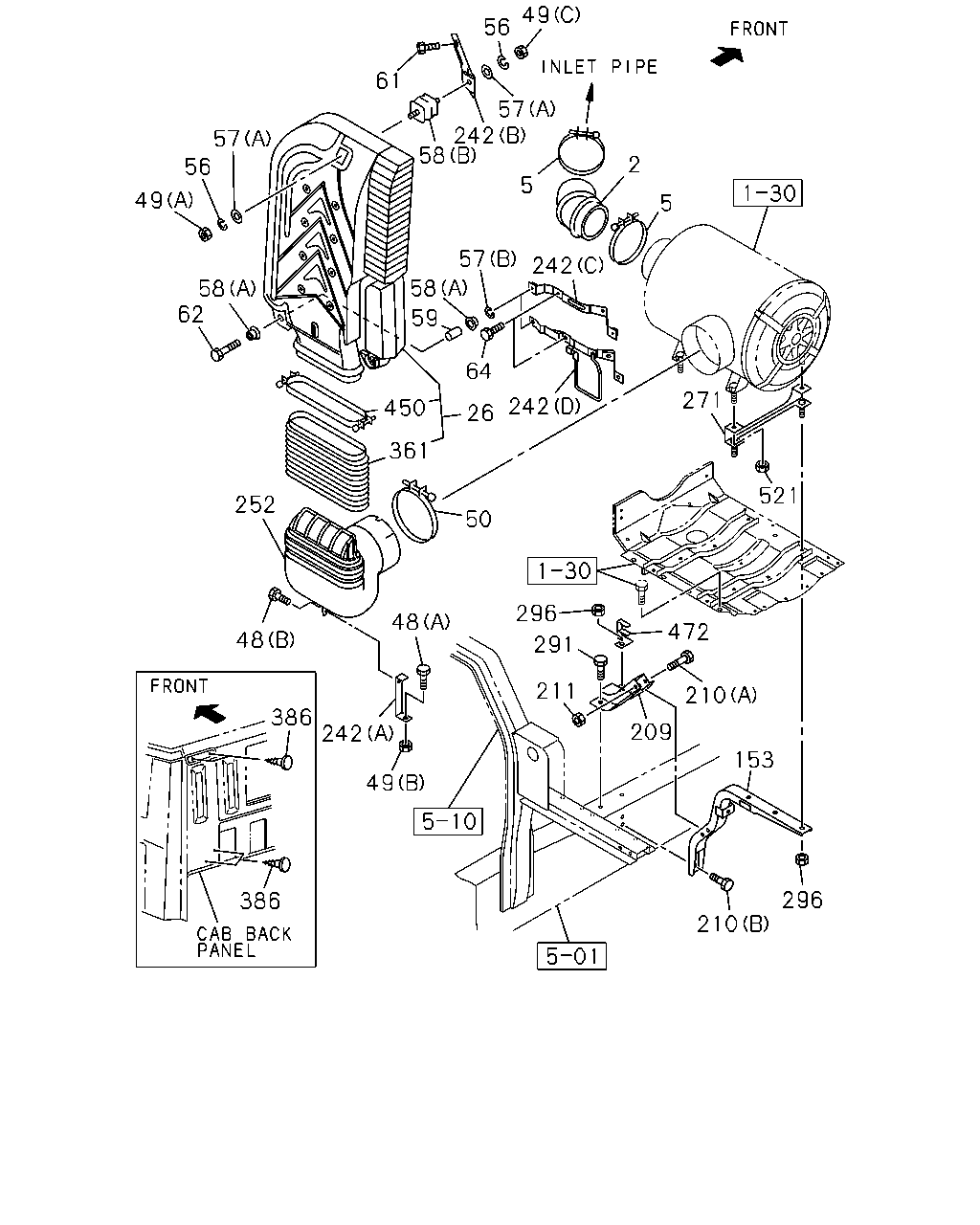

çizim 142030
49 56 61 57 242 58 57 56 2 5 49 5 57 242 58 58 62 59 64 271 242 450 26 361 521 252 50 296 48 472 48 291 211 210 386 242 209 153 49 296 386 210
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 8-98168-974-0 01 1 1108- ●
2 HOSE; ACL 1-14231-955-1 01 1 0710- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0710-1107 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1108- ● ●
26 DUCT; AIR INT 1-14230-202-2 01 1 0710-1003 ●
26 DUCT; AIR INT 8-98122-904-2 01 1 1004-1107 ●
26 DUCT; AIR INT 8-98122-904-2 01 1 1108- ● ●
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1107 ●
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1108- ● ●
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0710-1107 ●
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(C) M8 		0-91110-508-0 01 1 0710-0808 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 0809-1107 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-1107 ●
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-1107 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1108- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0710-1107 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1108- ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 0710-1107 ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 1108- ● ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-1107 ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1108- ● ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0710-1107 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-1107 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B) 		1-14119-452-0 01 1 0710-0810 ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B) 		8-98125-944-1 01 1 0811-1107 ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B) 		8-98125-944-1 01 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 0710-1107 ●
58 SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 1108- ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0710-1107 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1108- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0710-1107 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1108- ● ●
62 BOLT; AIR INT DUCT
M10X60 		1-09030-044-1 02 1 0710-1107 ●
62 BOLT; AIR INT DUCT
M10X60 		1-09030-044-1 02 1 1108- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0710-1107 ●
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1108- ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0710-1107 ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 1108- ● ●
209 BRACKET; ACL 1-53419-276-0 01 1 0710-1107 ●
209 BRACKET; ACL 1-53419-276-0 01 1 1108- ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0710-1107 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1108- ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0710-1107 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1108- ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 0710-1107 ●
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 1108- ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0710-1107 ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1108- ● ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		1-53419-351-1 01 1 0710-0807 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 0808-1107 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 1108- ● ●
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 0710-1107 ●
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 1108- ● ●
252 DUCT; AIR INT 1-14230-194-0 01 1 0710-1107 ●
252 DUCT; AIR INT 1-14230-194-0 01 1 1108- ● ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0710-1107 ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1108- ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 0710-1107 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1108- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-1107 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1108- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14230-149-2 01 1 0710-1107 ●
361 RUBBER; CUSHION,AIR DUCT 1-14230-149-2 01 1 1108- ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0710-1107 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1108- ● ●
450 CLAMP; HOSE 1-14239-237-0 01 1 0710-1107 ●
450 CLAMP; HOSE 1-14239-237-0 01 1 1108- ● ●
472 STOPPER; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33659-227-0 01 1 0710- ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0710-1107 ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1108- ● ●
