51513 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#141172) — 12 parça
◀

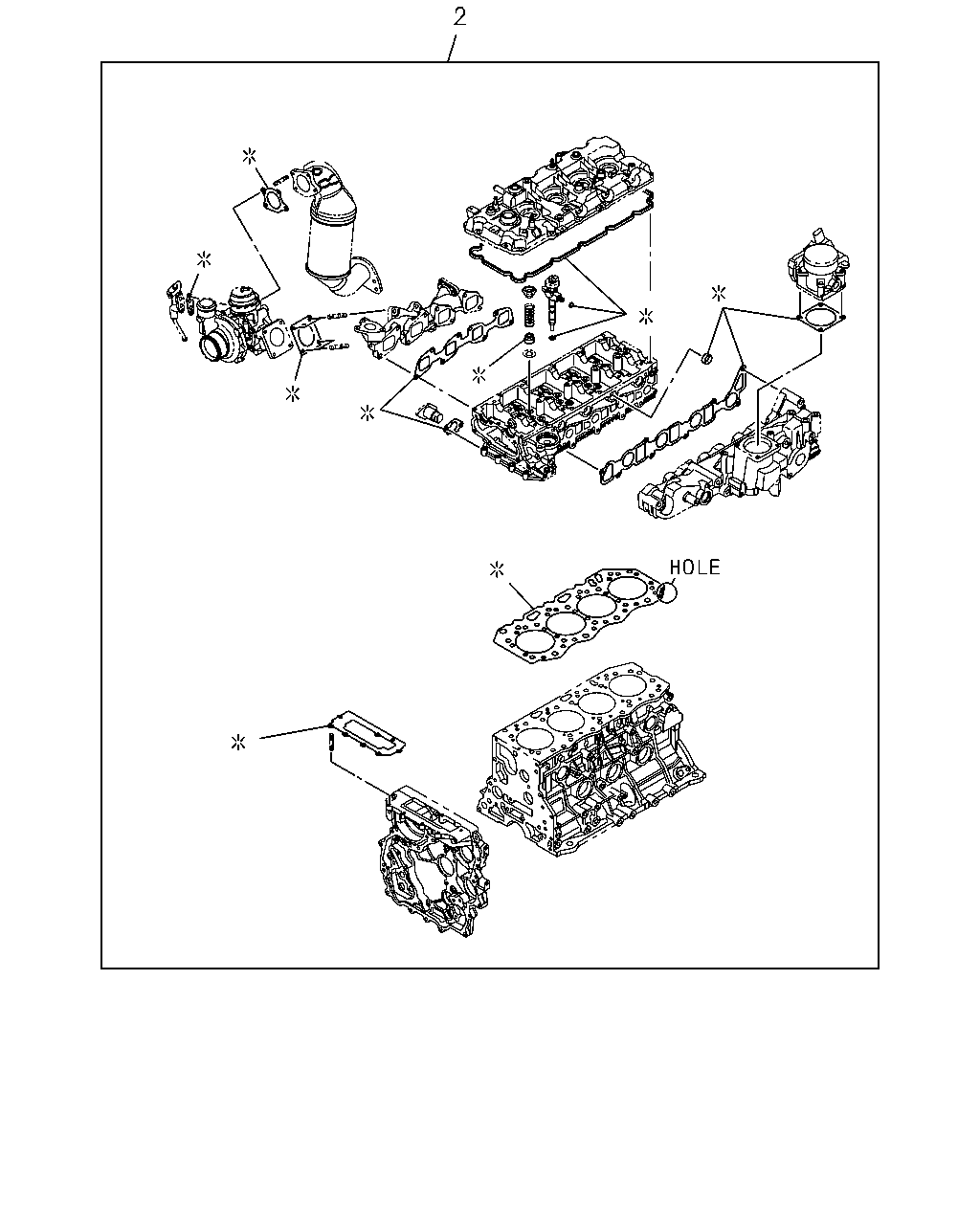

[005A] ENG HD OVERHAUL GASKET SET (6 parça)

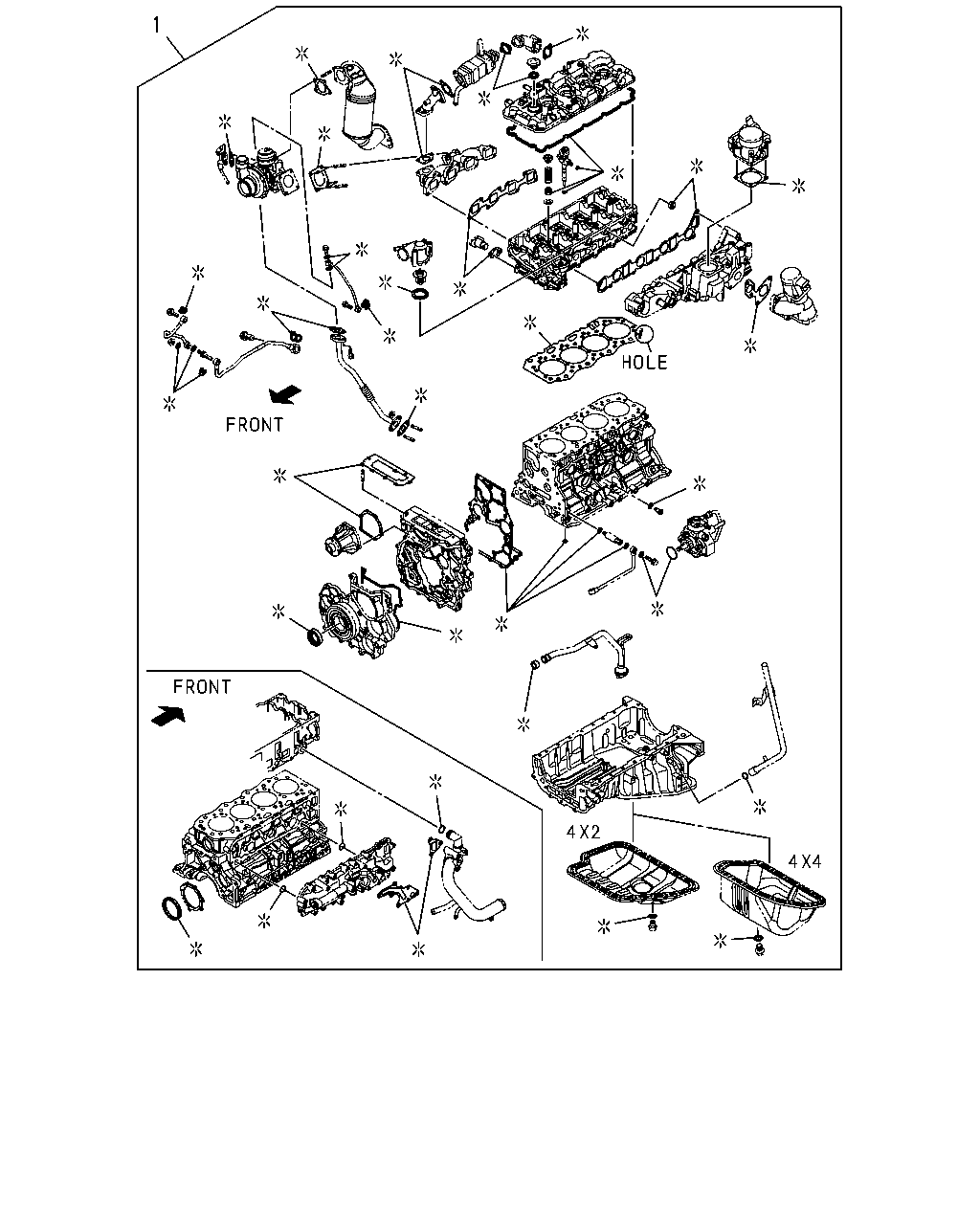

[005A] ENG OVERHAUL GASKET SET (6 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE
5-87817-264-0
01
1
1406-1409
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE
5-87817-449-0
01
1
1410-
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE
5-87817-265-0
01
1
1406-1409
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE
5-87817-450-0
01
1
1410-
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE
5-87817-266-0
01
1
1406-1409
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE
5-87817-451-0
01
1
1410-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.010 GASKET SET; ENG OVERHAUL
T=1.11 1-HOLE
5-87817-261-0
01
1
1406-1409
1
00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE
5-87817-446-0
01
1
1410-
1
00.010 GASKET SET; ENG OVERHAUL
T=1.16 2-HOLE
5-87817-262-0
01
1
1406-1409
1
00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE
5-87817-447-0
01
1
1410-
1
00.010 GASKET SET; ENG OVERHAUL
T=1.21 3-HOLE
5-87817-263-0
01
1
1406-1409
1
00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE
5-87817-448-0
01
1
1410-
