◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#141169) — 42 parça

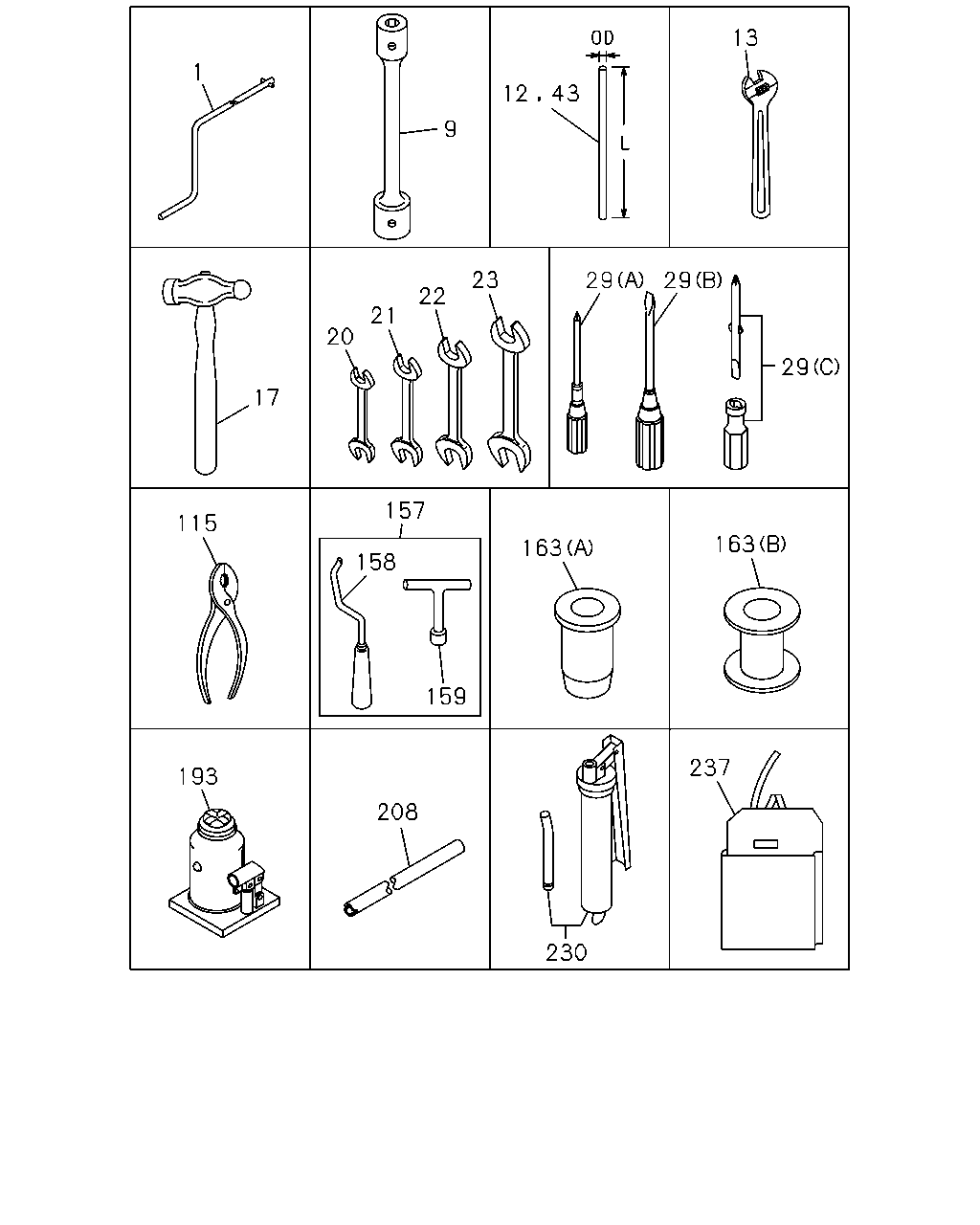

çizim 426752
1 9 12 43 13 29 29 29 163 163 157 158 115 159 22 23 21 20 17 193 208 230 237
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> MAL 		9-23110-018-0 01 1 1406-
9 WRENCH; WHEEL PIN
B=41X21 L=440 MAL 		1-85113-015-1 01 1 1406-1601
9 WRENCH; WHEEL PIN
B=41X21 L=445 MAL 		8-98316-703-0 01 1 1602-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 MAL 		1-85116-011-0 01 1 1406-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 MAL 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
L=247 MAL 		1-85117-006-0 01 1 1406-1407
13 WRENCH; MONKEY
L=255 MAL 		8-98270-303-0 01 1 1408-
17 HAMMER
MAL 		9-85121-406-0 01 1 1406-
20 WRENCH; 10X12
10X12 MAL 		0-95902-510-0 01 1 1406-
21 WRENCH; 14X17
14X17 MAL 		0-95902-514-0 01 1 1406-
22 WRENCH; 19X22
19X22 MAL 		0-95902-519-0 01 1 1406-
23 WRENCH; 24X27
24X27 MAL 		0-95902-524-0 01 1 1406-
29 DRIVER; SCREW
(C) <+>,<-> L=160 MAL 		8-94242-798-1 01 1 1406-
29 DRIVER; SCREW
(B) <-> L=275 MAL 		8-98061-105-0 01 1 1406-
29 DRIVER; SCREW
(A) <+> L=190 MAL 		9-09595-522-0 01 1 1406-
43 BAR; EXTENSION,SOCKET WRENCH
OD=25 L=480 MAL 		1-85116-011-0 01 1 1406-1501
43 BAR; EXTENSION,SOCKET WRENCH
OD=25 L=480 MAL 		8-98257-407-0 01 1 1502-
115 PLIER
MAL 		5-85171-002-0 01 1 1406-1410
115 PLIER
MAL 		8-98282-845-0 01 1 1411-
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 1406-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 1406-
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 1406-
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 1406-
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 1406-
193 JACK ASM
7TON MAL 		1-85510-005-2 01 1 1406-
208 HANDLE; JACK
L=600 MAL 		8-98181-437-0 01 1 1406-
230 PUMP; GREASE
MAL 		1-85556-007-5 01 1 1406-
237 BAG; TOOL
MAL 		8-97130-902-1 01 1 1406-
çizim 426755
151 166 192 227
BalonParca AdiParca NoAdetTipApplied Date
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1406-
166 ALIGNER; CLU RELEASE LEVER 1-85253-026-0 01 1 1406-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1406-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1406-
çizim 426758
268 271 274 209 285 281 311 284 282 283
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1406-
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406-
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1406-
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406-
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1406-1511
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE MAL 		0-91180-210-0 04 1 1406-1511
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 MAL 		0-91510-510-0 04 1 1406-1511
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE MAL 		0-28651-020-0 04 1 1406-1511
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE MAL 		0-91180-210-0 04 1 1406-1511
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1406-1511
