Sayfa 8-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶

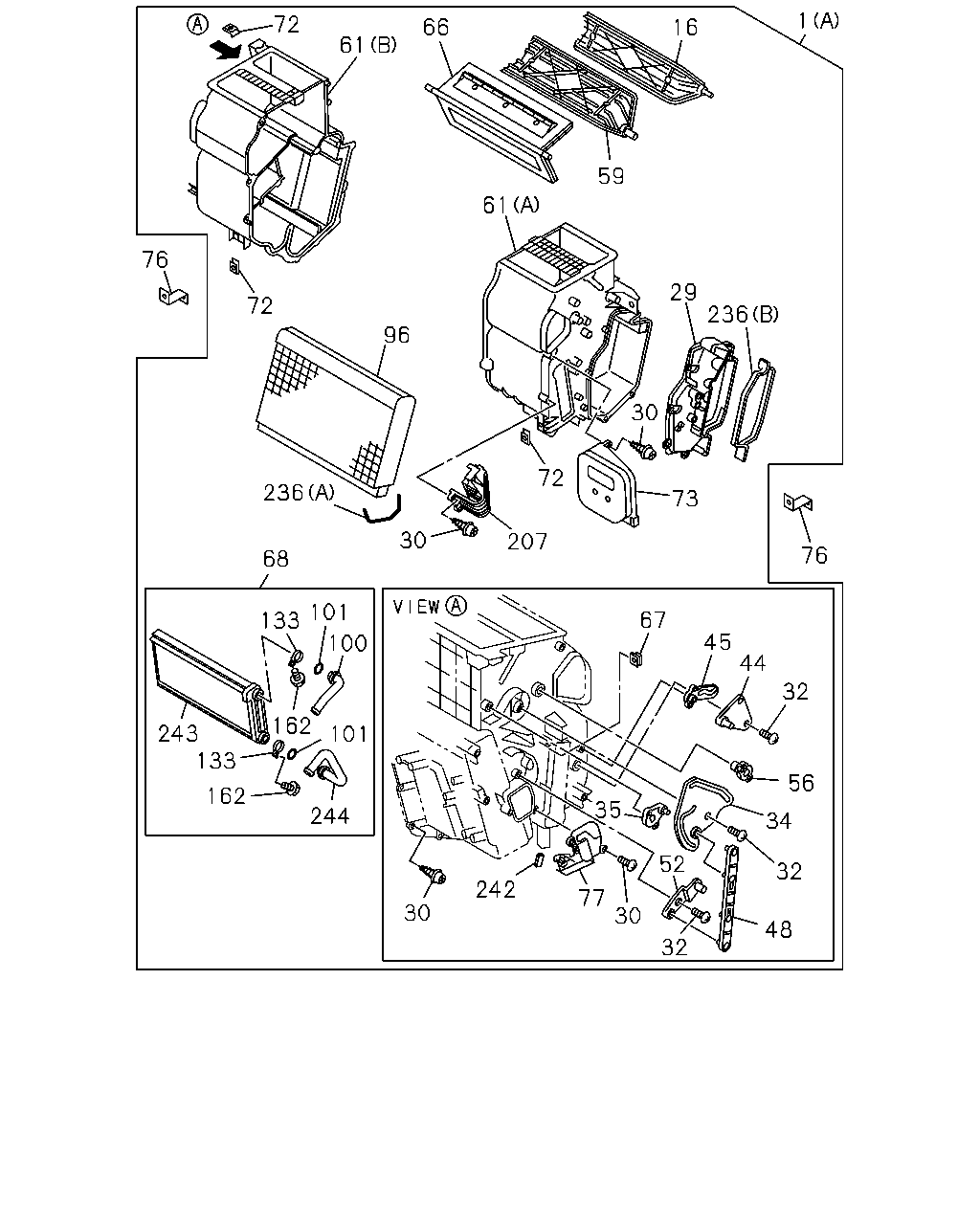

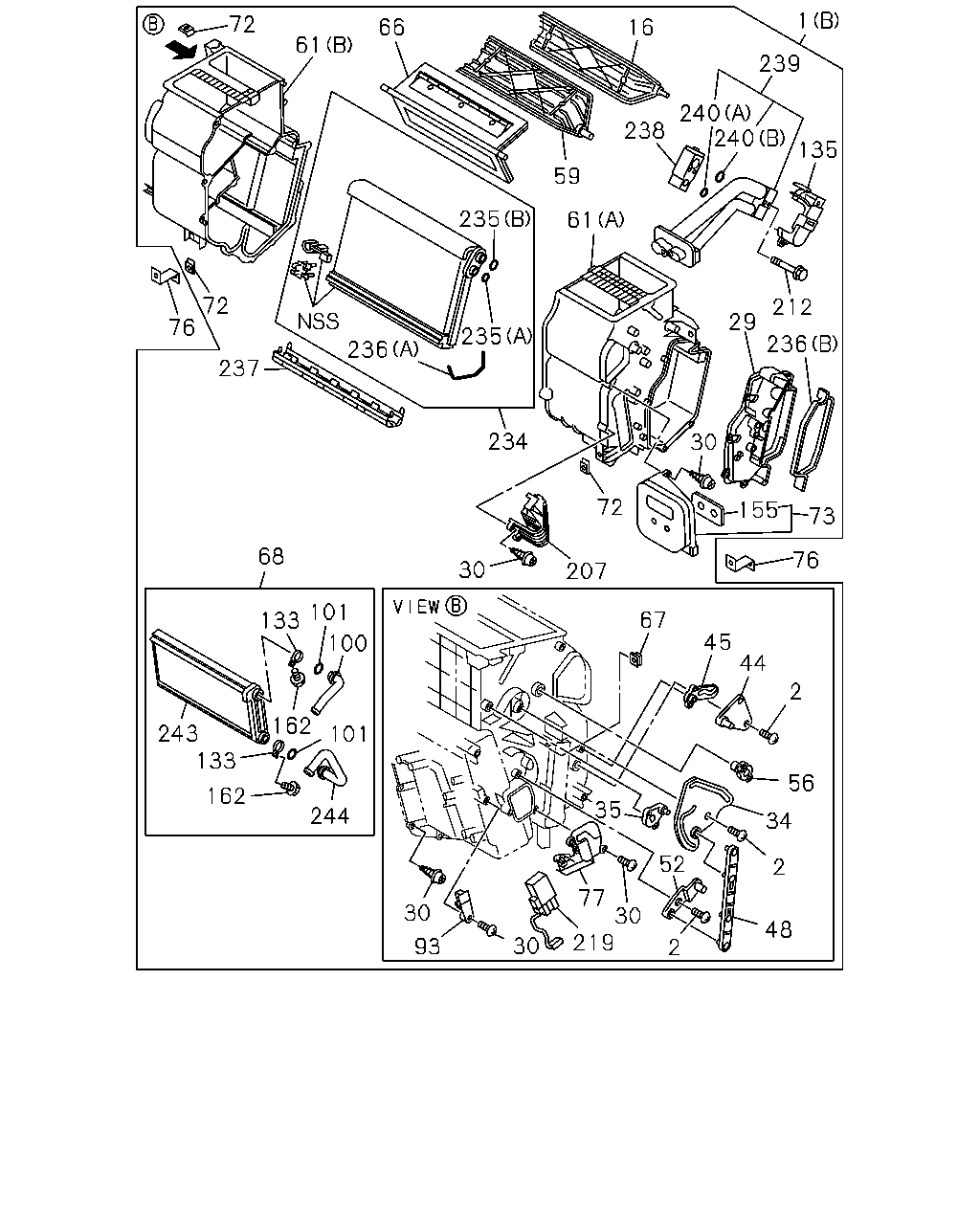

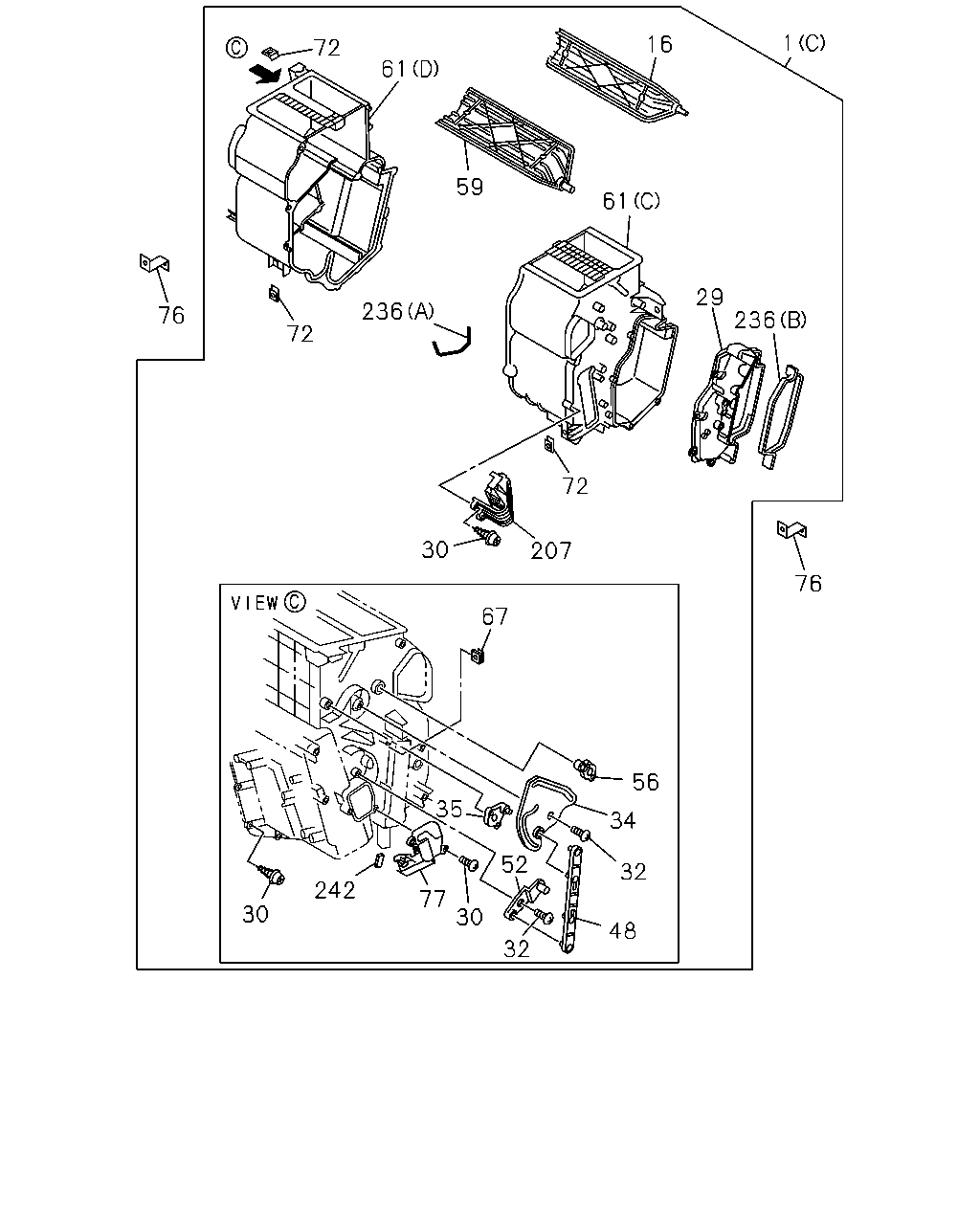

8-60 — HEATER UNIT; FRONT (#141162) — 128 parça

1 239 135 212 236 29 30 155 73 76 207 72 234 30 240 240 16 238 59 61 235 235 236 237 72 76 66 61 72 68 101 100 101 244 162 133 133 162 243 67 45 44 2 56 34 2 48 2 52 35 77 30 219 30 93 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1406-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1406-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98214-400-1	01	1	1406-
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16 MAL	8-98047-416-0	03	1	1406-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-387-0	01	1	1406-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-119-0	01	1	1406-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98231-367-0	01	1	1406-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING MAL	8-97957-708-0	27	1	1406-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1406-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING MAL	8-97957-708-0	20	1	1406-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-389-0	01	1	1406-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-392-0	01	1	1406-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1406-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1406-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-391-0	01	1	1406-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-390-0	01	1	1406-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-393-0	01	1	1406-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-386-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-376-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98077-422-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) MAL	8-98077-423-0	01	1	1406-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1406-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) MAL	8-98047-417-0	02	1	1406-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-417-0	01	1	1406-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-380-0	01	1	1406-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 MAL	8-98047-428-0	03	1	1406-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-118-0	01	1	1406-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1406-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1406-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-414-0	01	1	1406-
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1406-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-528-0	01	1	1406-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1406-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1406-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-384-0	01	1	1406-
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-431-0	01	1	1406-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1406-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-379-0	01	1	1406-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X61	8-98047-415-0	02	1	1406-
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1406-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-116-1	01	1	1406-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	01	1	1406-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MAL	8-98047-420-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) MAL	8-98047-421-0	01	1	1406-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-382-0	01	1	1406-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-383-0	01	1	1406-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-115-0	01	1	1406-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	01	1	1406-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1406-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1406-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-510-0	01	1	1406-

72 61 66 16 1 59 61 29 236 73 76 30 72 207 30 96 236 68 101 100 101 244 162 133 133 162 243 67 45 44 32 56 34 32 48 32 52 35 30 77 242 30 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1406-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1406-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98214-400-1	01	1	1406-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-387-0	01	1	1406-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-119-0	01	1	1406-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98231-367-0	01	1	1406-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING MAL	8-97957-708-0	27	1	1406-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1406-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING MAL	8-97957-708-0	20	1	1406-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1406-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 MAL	8-98047-416-0	02	1	1406-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-389-0	01	1	1406-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-392-0	01	1	1406-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1406-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1406-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-391-0	01	1	1406-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-390-0	01	1	1406-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-393-0	01	1	1406-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-386-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-376-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98077-422-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) MAL	8-98077-423-0	01	1	1406-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1406-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) MAL	8-98047-417-0	02	1	1406-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-417-0	01	1	1406-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-380-0	01	1	1406-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 MAL	8-98047-428-0	03	1	1406-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-118-0	01	1	1406-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1406-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1406-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-414-0	01	1	1406-
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1406-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-528-0	01	1	1406-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1406-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1406-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1406-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-379-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MAL	8-98047-420-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) MAL	8-98047-421-0	01	1	1406-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98048-816-0	01	1	1406-1411
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1412-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1406-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-510-0	01	1	1406-

72 61 59 16 1 236 29 76 72 207 30 236 72 76 61 67 56 34 32 48 32 52 35 77 30 242 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1406-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1406-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98214-400-1	01	1	1406-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-387-0	01	1	1406-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-119-0	01	1	1406-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98231-367-0	01	1	1406-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING MAL	8-97957-708-0	27	1	1406-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1406-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING MAL	8-97957-708-0	20	1	1406-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1406-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 MAL	8-98047-416-0	02	1	1406-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-389-0	01	1	1406-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-392-0	01	1	1406-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-391-0	01	1	1406-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-390-0	01	1	1406-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-393-0	01	1	1406-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-386-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1406-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-376-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL	8-98077-422-0	01	1	1406-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) MAL	8-98077-423-0	01	1	1406-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) MAL	8-98047-417-0	02	1	1406-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-417-0	01	1	1406-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 MAL	8-98047-428-0	03	1	1406-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1406-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98047-414-0	01	1	1406-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-379-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MAL	8-98047-420-0	01	1	1406-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) MAL	8-98047-421-0	01	1	1406-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL	8-98048-816-0	01	1	1406-1411
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1412-
