Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#141157) — 20 parça

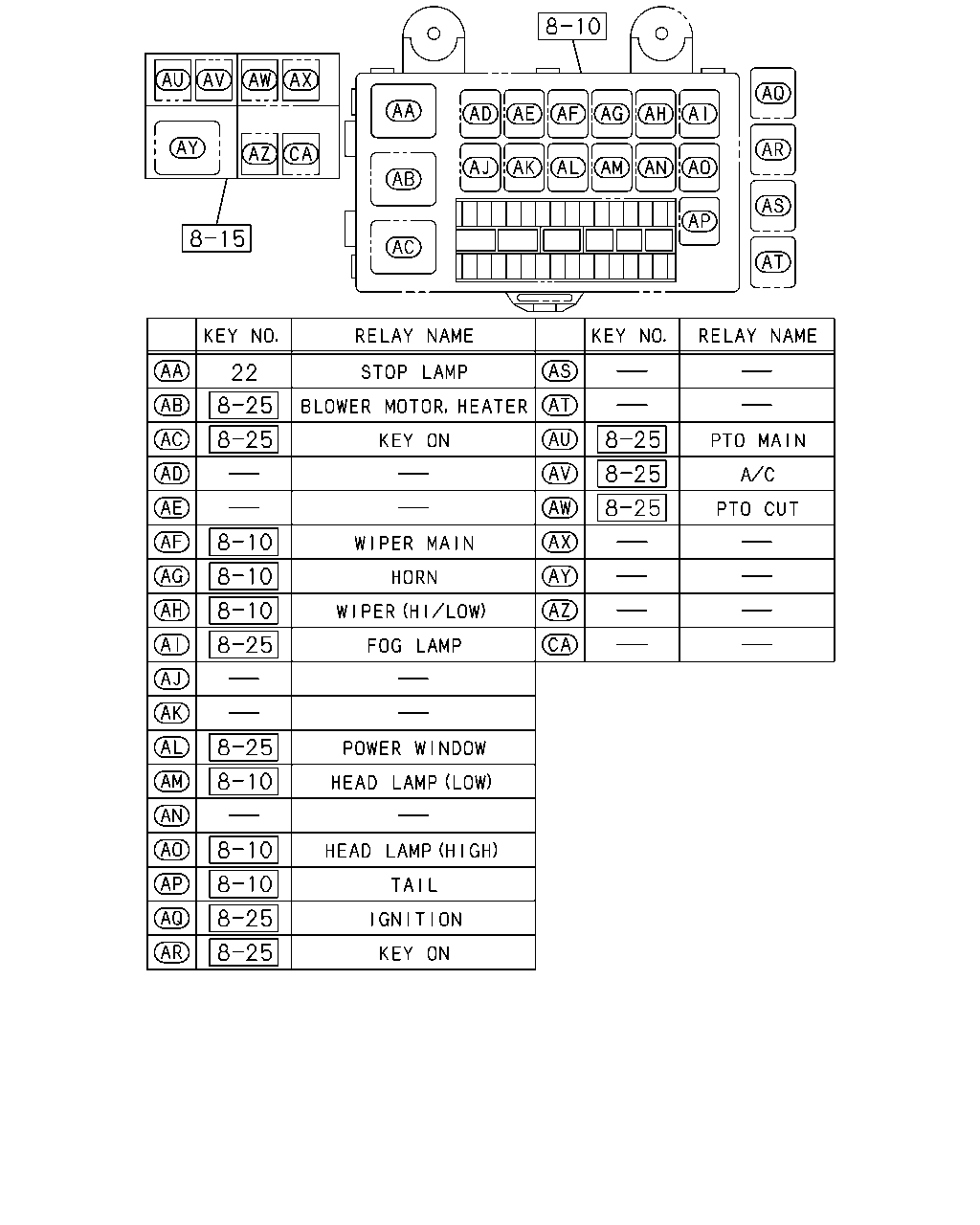

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1406-

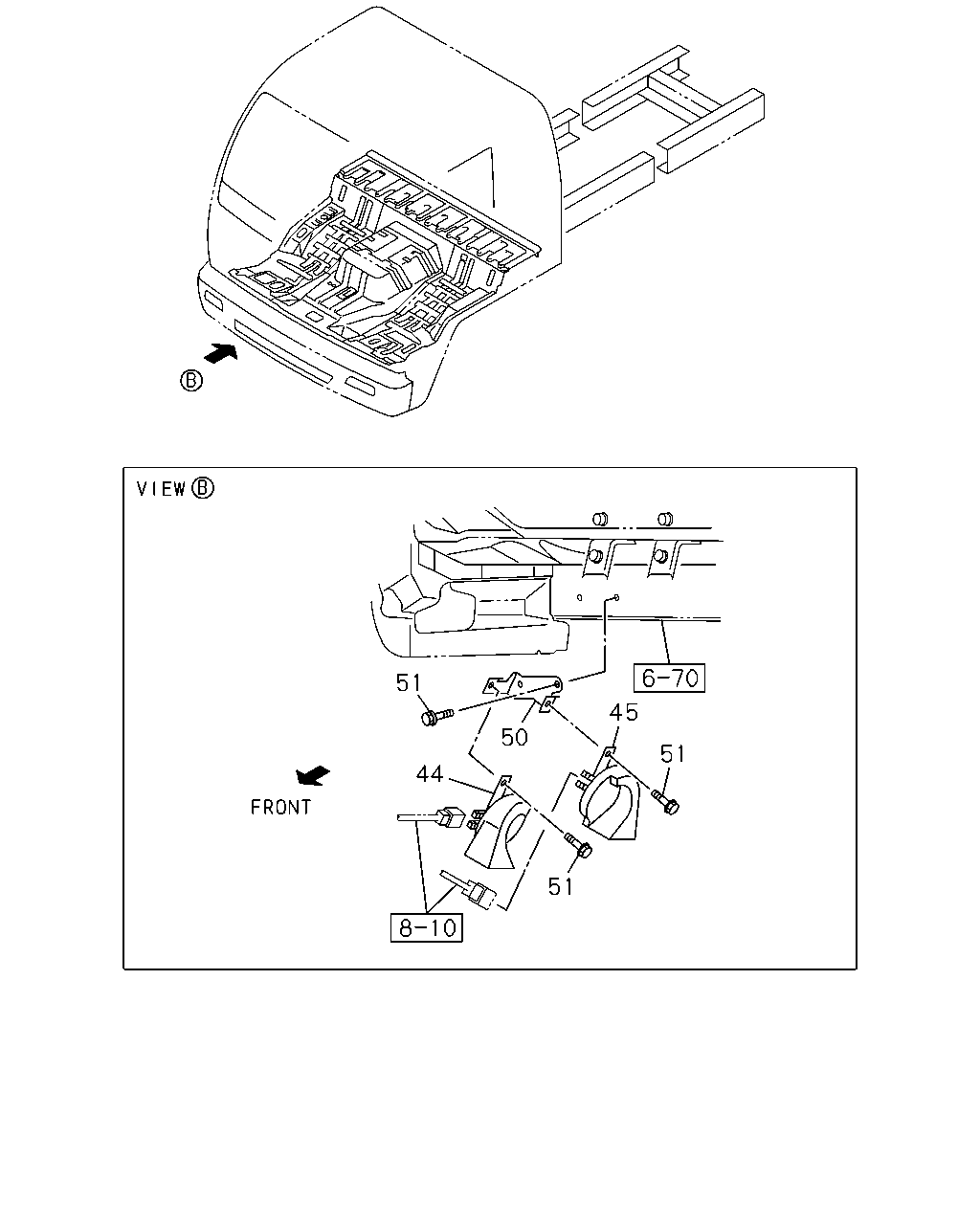

51 44 50 45 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1406-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1406-
50	BRACKET; HORN	8-97613-300-2	01	1	1406-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1406-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1406-

39 35 34 261 34 34 33 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> MAL	1-82563-871-2	01	1	1406-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW MAL	1-09650-430-0	02	1	1406-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> AIR SUSP DRIVER SEAT<A56> (B) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1406-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98034-702-0	01	1	1406-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE MAL	0-28650-820-0	02	1	1406-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1406-
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4 MAL	9-99204-513-0	01	1	1406-

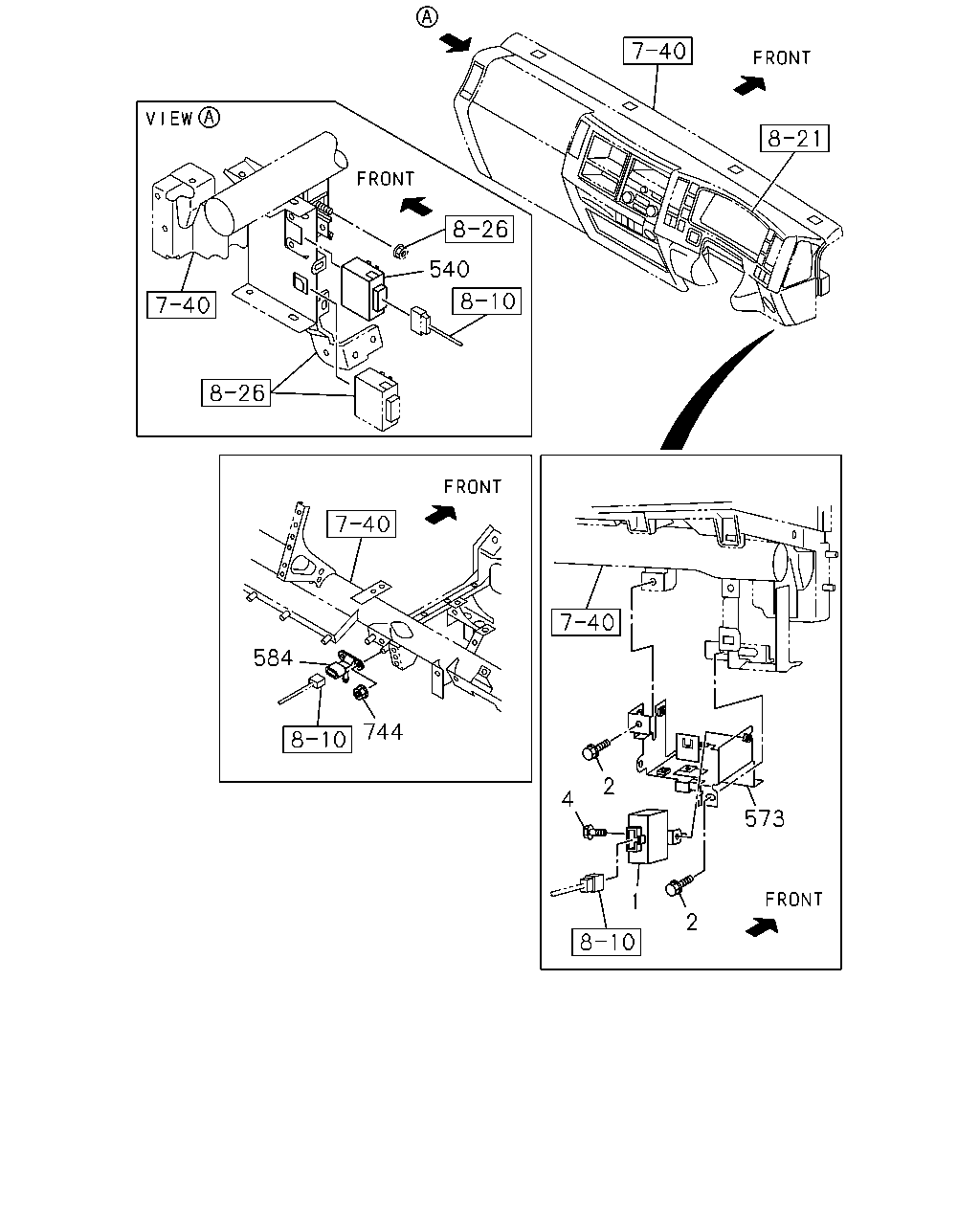

540 584 744 2 4 1 2 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1406-
2	BOLT; FLASHER UNIT BOLT M6X16 FLANGE MAL	0-28650-616-0	02	1	1406-
4	SCREW; FLASHER UNIT M6X16 FLANGE MAL	0-28650-616-0	01	1	1406-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1406-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1406-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1406-
744	NUT; SENSOR M6 FLANGE MAL	0-91180-106-0	02	1	1406-
