◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#141145) — 24 parça

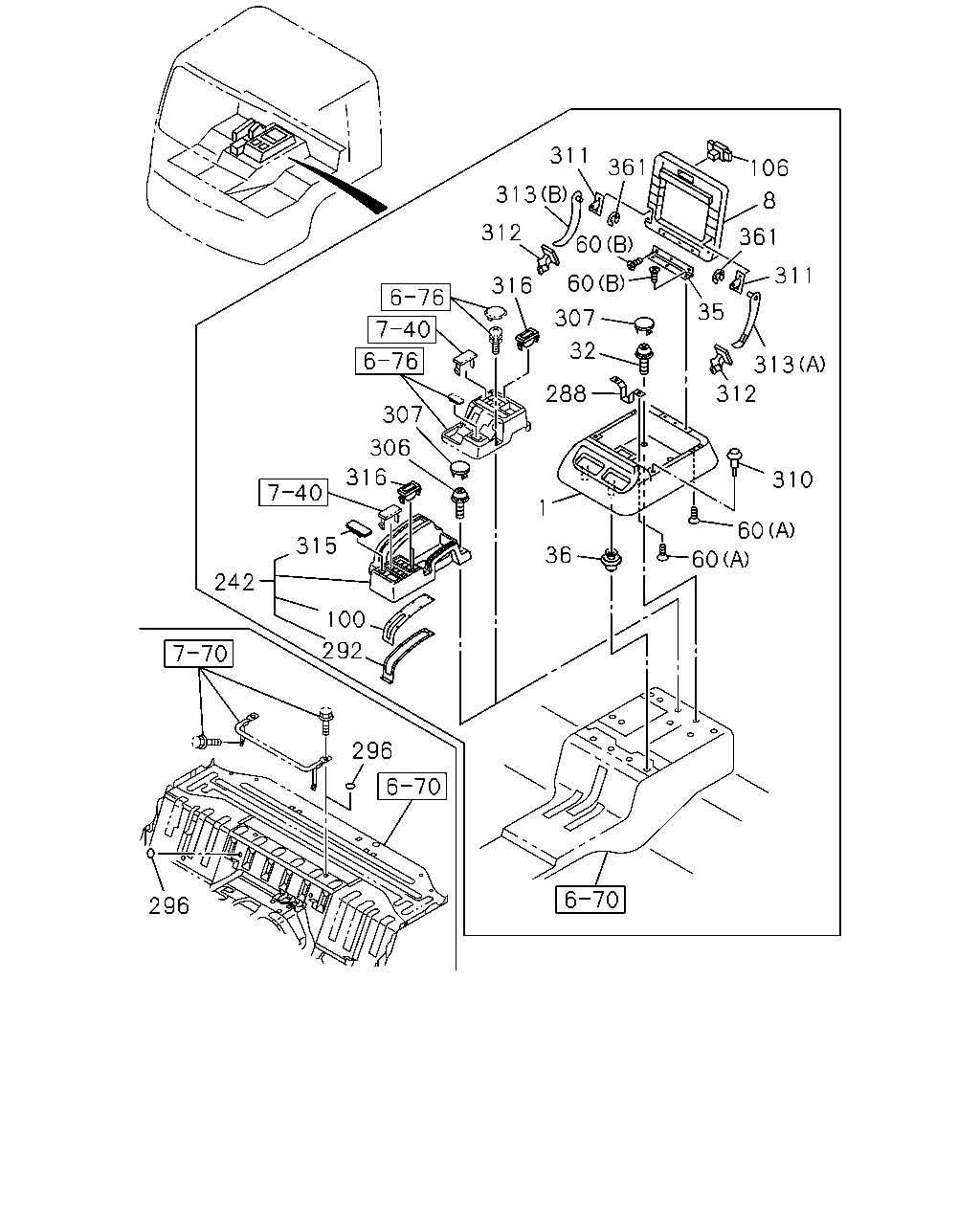

çizim 426620
296 296 292 100 242 316 315 306 307 316 312 313 311 60 60 307 288 32 1 36 361 106 361 8 311 35 313 312 310 60 60
BalonParca AdiParca NoAdetTipApplied Date
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 1406-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 1406-
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 1406-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 1406-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-09984-190-0 02 1 1406-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1406-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 MAL 		8-94279-325-0 04 1 1406-
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 1406-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> 		1-72538-312-0 01 1 1406-
242 TRAY ASM; CTR CONSOLE
GRAY 		8-97407-950-1 01 1 1406-
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-190-0 01 1 1406-
292 RETAINER; COVER 1-72538-162-1 01 1 1406-
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK MAL 		1-76798-019-0 04 1 1406-
306 SCREW; TRAY
M6X16 		0-38050-616-0 04 1 1406-
307 COVER; HOLE,CTR CONSOLE
GRAY 		8-97407-951-0 04 1 1406-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 1406-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-187-0 02 1 1406-
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 1406-
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 1406-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 1406-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 1406-
315 COVER; HOLE,SW
GRAY 		8-97409-339-0 01 1 1406-
316 BOX; COIN 8-94482-280-2 02 1 1406-
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 1406-
