11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

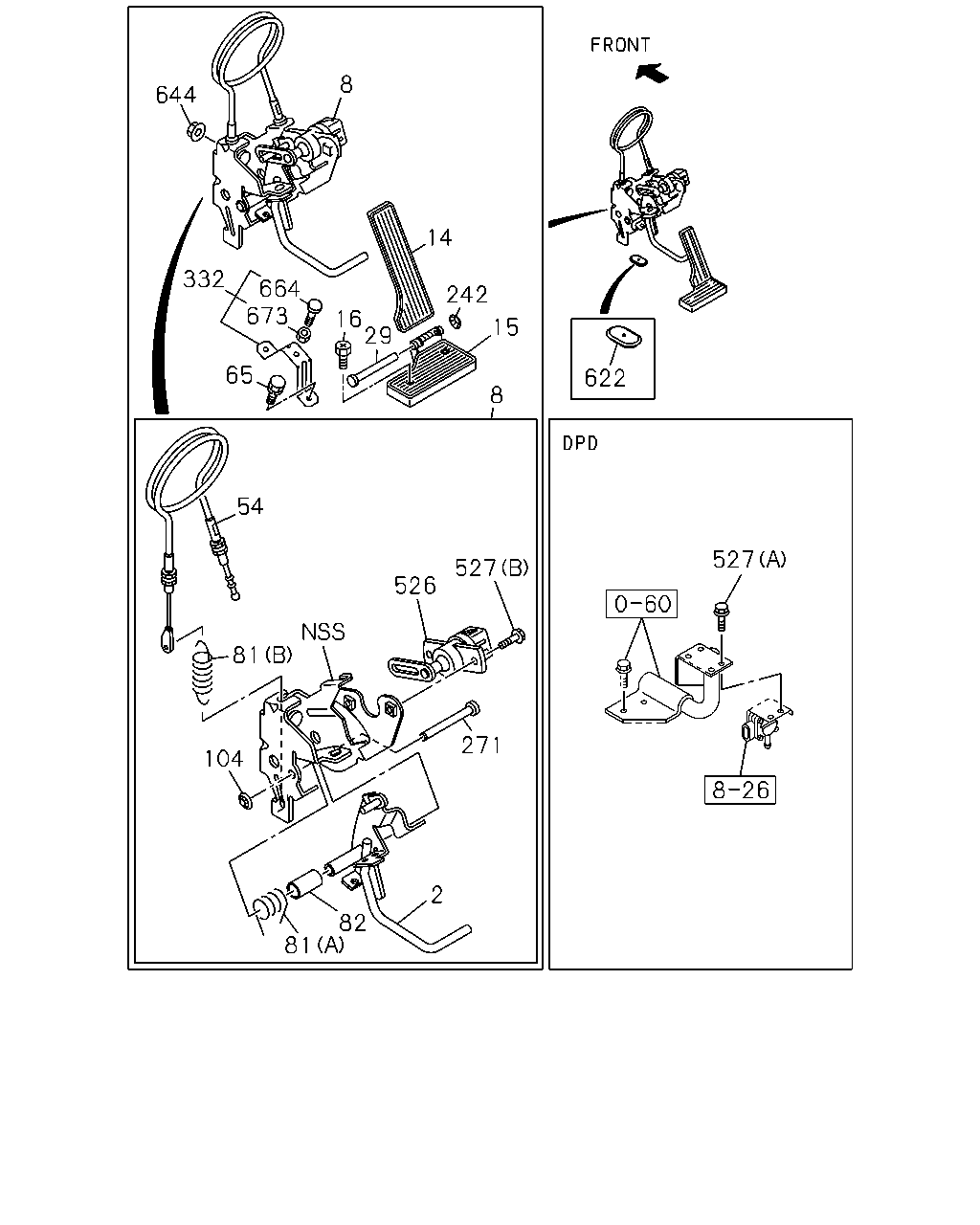

1-01 — ACCELERATOR PEDAL AND CONTROL
(#14114) — 45 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-N
8
644
14
332
664
673
242
16
29
15
65
622
8
54
527
527
526
81
271
104
2
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LEVER; ENG CONT
1-73996-593-1
01
1
0710-1107
●
2
LEVER; ENG CONT
1-73996-593-1
01
1
1108-
●
●
8
LINK ASM; ENG CONT
1-73996-591-0
01
1
0710-0908
●
8
LINK ASM; ENG CONT
8-98133-476-1
01
1
0909-1107
●
8
LINK ASM; ENG CONT
8-98133-476-1
01
1
1108-
●
●
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0710-1107
●
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
1108-
●
●
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0710-1107
●
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
1108-
●
●
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0710-1107
●
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1108-
●
●
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0710-1107
●
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
1108-
●
●
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0710-1107
●
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
1108-
●
●
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0710-1107
●
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1108-
●
●
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0710-1107
●
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
1108-
●
●
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0710-1107
●
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
1108-
●
●
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0710-1107
●
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
1108-
●
●
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0710-1107
●
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
1108-
●
●
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0710-1107
●
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
1108-
●
●
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0710-1107
●
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
1108-
●
●
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0710-1107
●
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
1108-
●
●
526
SENSOR; ACCEL
8-97602-416-0
01
1
0710-0908
●
526
SENSOR; ACCEL
8-98131-263-0
01
1
0909-1107
●
526
SENSOR; ACCEL
8-98131-263-0
01
1
1108-
●
●
527
BOLT; ACCEL SENSOR
(B) M5X16
8-98111-511-0
02
1
0810-1107
●
527
BOLT; ACCEL SENSOR
(B) M5X16
8-98111-511-0
01
1
1108-
●
●
527
BOLT; ACCEL SENSOR
(A) M8X20 FLANGE
0-28050-820-0
02
1
0710-
●
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
0710-1107
●
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
1108-
●
●
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0710-1107
●
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1108-
●
●
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0710-1107
●
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
1108-
●
●
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0710-1107
●
673
NUT; STOPPER
M8
0-91111-508-0
01
1
1108-
●
●
