◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#141132) — 9 parça
çizim 426437
370 370 370
BalonParca AdiParca NoAdetTipApplied Date
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1406-

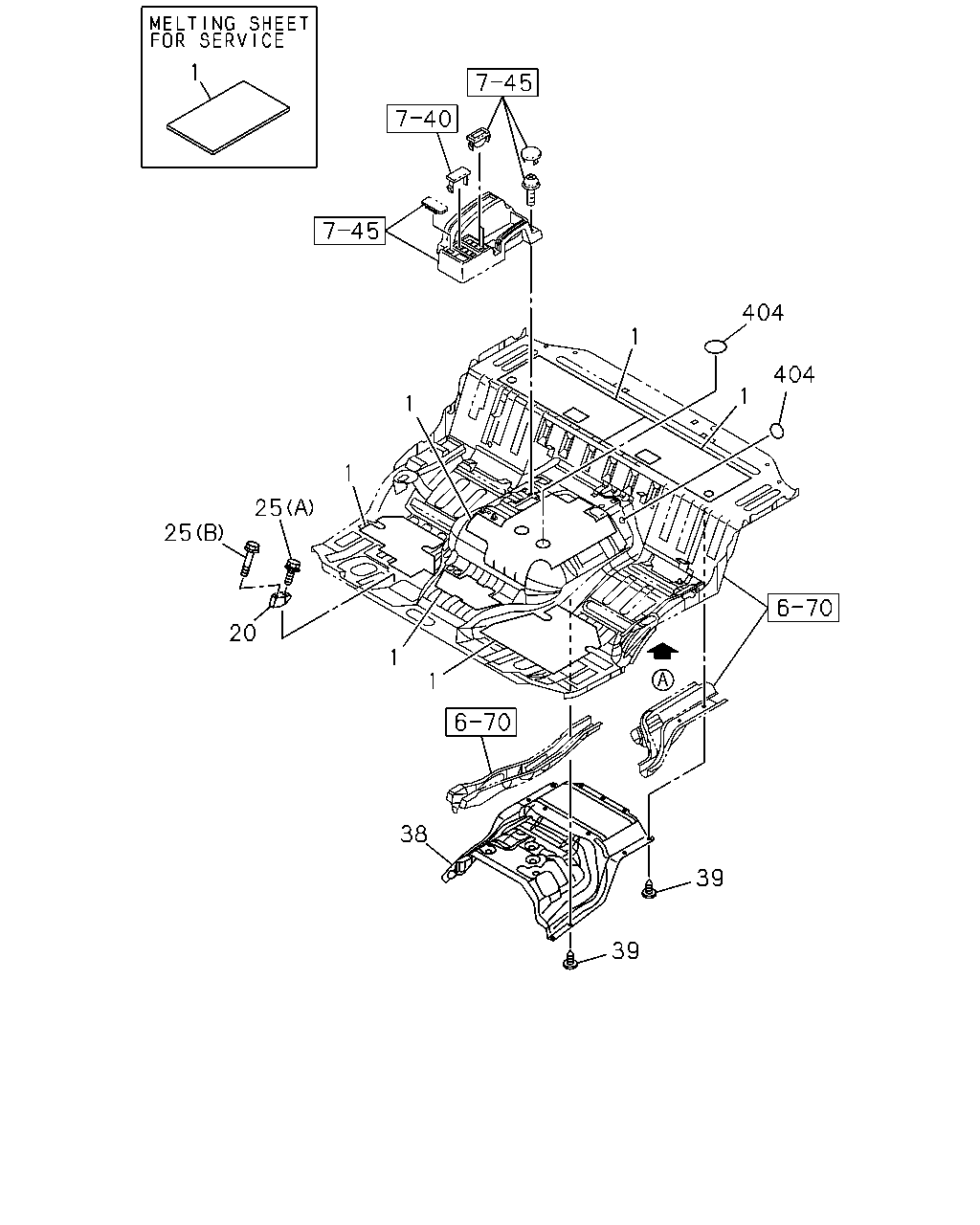

çizim 426613
1 1 1 1 1 1 1 38 39 39 404 404 25 25 20
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL 		8-94262-093-0 AR 1 1406-
20 REST; FOOT 1-73907-176-1 01 1 1406-
25 SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 01 1 1406-
25 SCREW; FOOT REST
(B) BOLT M6X47 		8-94407-876-1 01 1 1406-
38 INSULATOR; ENG COVER 8-98248-305-0 01 1 1406-
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 17 1 1406-
404 SEAL; FLOOR,HOLE
OD=25 BLACK MAL 		1-76798-019-0 12 1 1406-
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK MAL 		1-76798-019-0 02 1 1406-
