◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#141130) — 60 parça

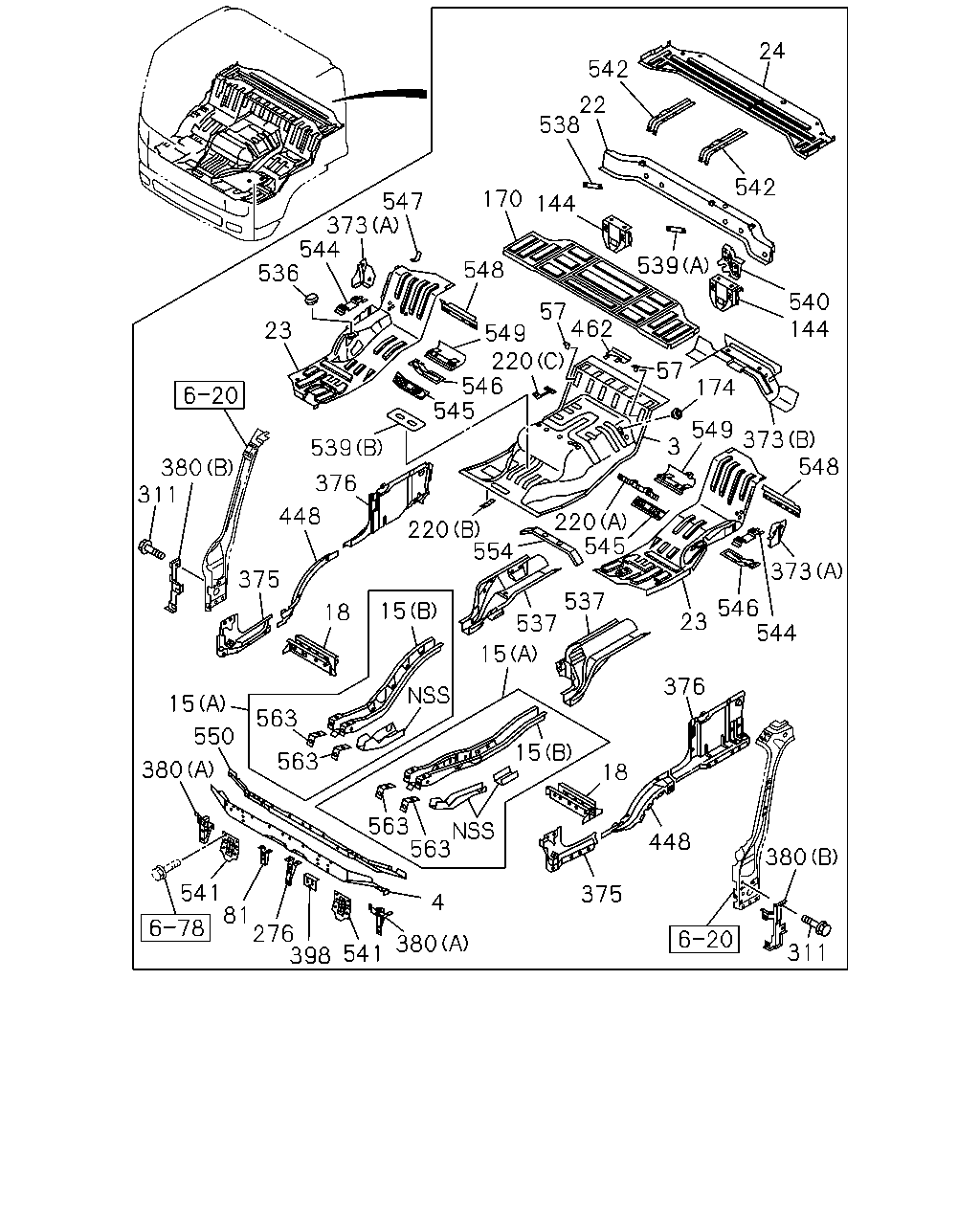

çizim 426350
24 542 540 144 373 548 373 544 546 376 380 311 448 375 18 23 537 545 3 549 174 57 539 144 538 22 542 170 57 462 549 220 546 545 548 220 554 220 537 15 15 15 563 563 563 563 18 375 448 376 539 15 550 380 541 81 276 398 541 380 311 380 23 536 544 373 547 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1406-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1406-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1406-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1406-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1406-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1406-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1406-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1406-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1406-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1406-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1406-
24 PANEL; BED PAN 8-97584-377-6 01 1 1406-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1406-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1406-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1406-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1406-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1406-
174 GROMMET; AIR PIPE
OD=35 MAL 		8-94122-971-0 01 1 1406-
220 PATCH
(A) 		8-97588-840-4 01 1 1406-
220 PATCH
(B) 		8-97589-603-3 01 1 1406-
220 PATCH
(C) 		8-97589-627-2 01 1 1406-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1406-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1406-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1406-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1406-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1406-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1406-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1406-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1406-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1406-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1406-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1406-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1406-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1406-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1406-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1406-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1406-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1406-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1406-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1406-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1406-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1406-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1406-
539 PATCH ASM; SAFTY HOOK
(B) 		8-98131-661-0 01 1 1406-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1406-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1406-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1406-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1406-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1406-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1406-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1406-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1406-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1406-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1406-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1406-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1406-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1406-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1406-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1406-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
