6-20 — SIDE PANEL AND STEP (#141121) — 48 parça

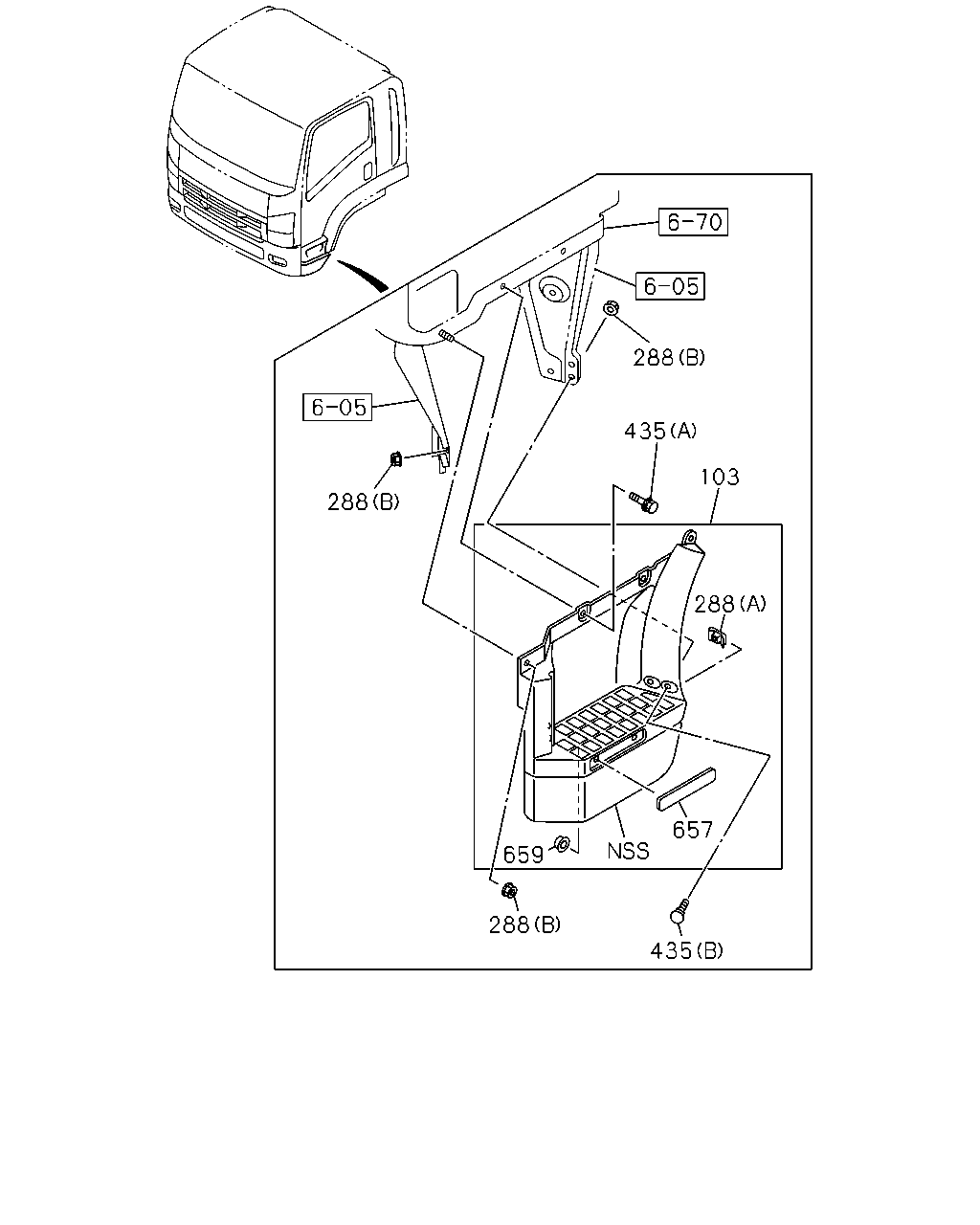

çizim 426026
288 103 435 288 288 657 435 288 659
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-326-3 01 1 1406-
103 PLATE; STEP 8-98037-325-3 01 1 1406-
288 NUT; STEP
(B) M8 FLANGE MAL 		0-91180-108-0 10 1 1406-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1406-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 1406-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1406-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1406-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1406-

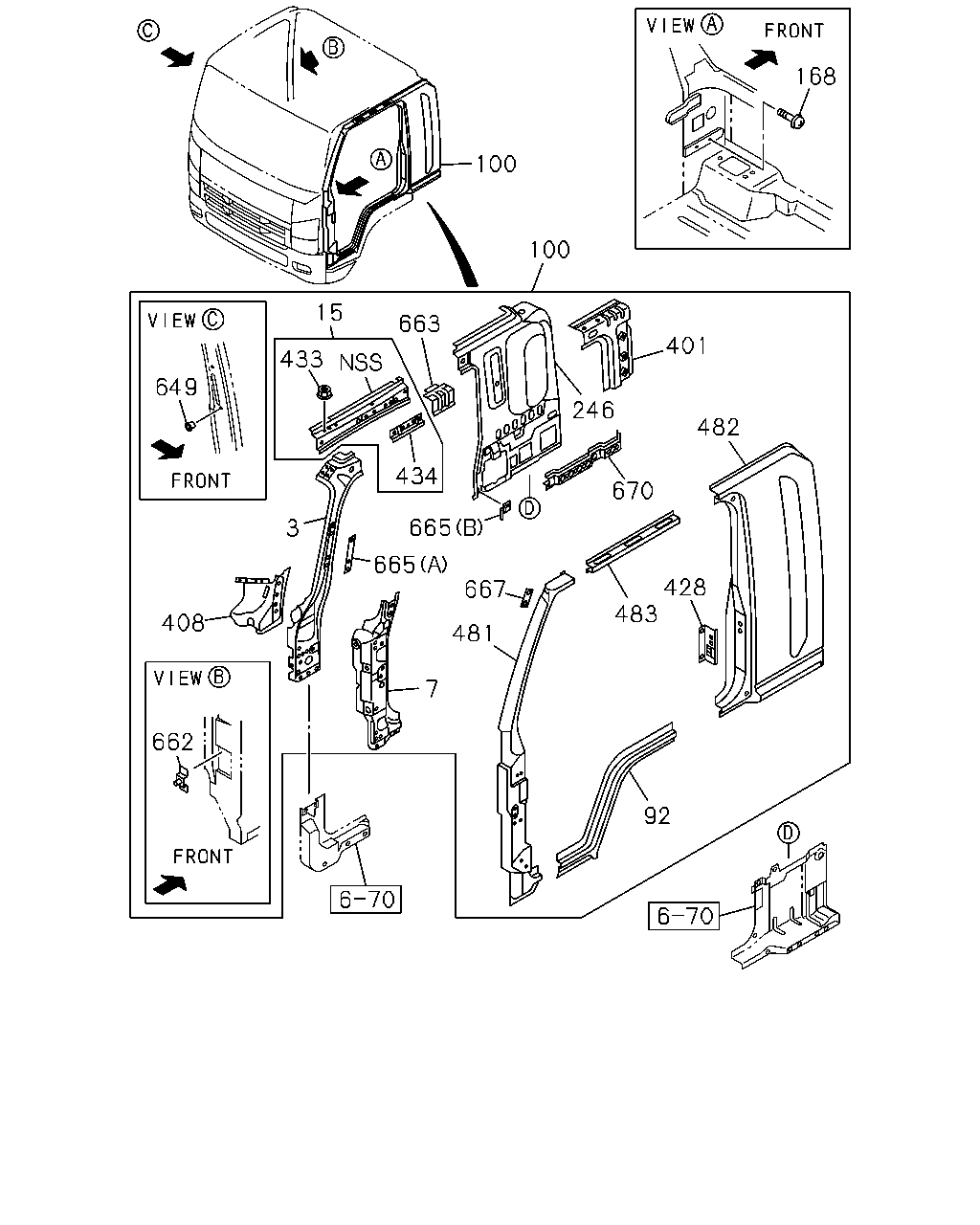

çizim 426036
100 100 168 401 482 670 428 483 92 481 667 665 665 434 663 15 433 649 3 7 662 246 408
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1406-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1406-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1406-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1406-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1406-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1406-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1406-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1406-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1406-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-063-5 01 1 1406-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 1406-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 1406-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1406-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1406-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1406-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1406-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1406-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1406-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1406-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1406-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1406-
433 NUT; HEADER SHELF
M6 MAL 		9-09114-086-0 04 1 1406-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1406-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1406-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1406-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 1406-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1406-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 1406-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1406-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1406-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1406-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1406-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1406-
662 BRACKET; DUCT 8-97584-611-1 01 1 1406-
663 BRACKET; AIR 8-97585-208-2 01 1 1406-
663 BRACKET; AIR 8-97585-207-2 01 1 1406-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1406-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1406-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1406-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1406-
