Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
5 - Frame, Cab Mounting
▶

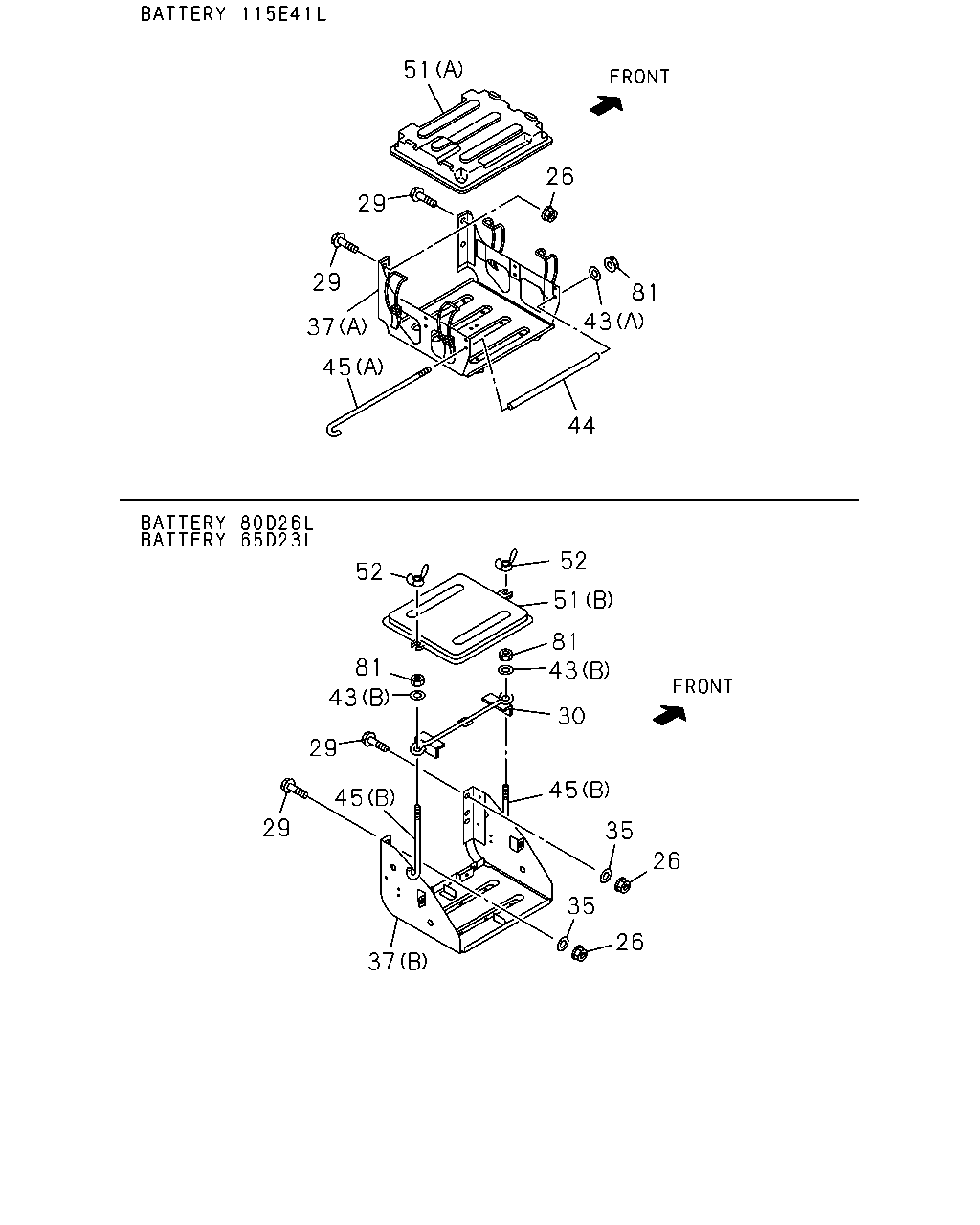

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#141115) — 17 parça
51
26
81
43
44
45
37
29
29
52
51
81
43
30
45
35
26
35
26
37
29
29
43
52
81
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE MAL
0-91180-210-0
04
1
1406-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE MAL
0-28651-035-0
04
1
1406-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MAL
5-53615-004-1
01
1
1406-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1406-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (A)
8-98091-497-0
01
1
1406-1406
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (A)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B) MAL
8-97384-068-2
01
1
1406-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (B) MAL
8-97384-067-2
01
1
1406-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (A) ID=8.4 OD=16 MAL
0-91610-508-0
02
1
1406-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22
0-91614-708-0
02
1
1406-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 MAL
9-53616-615-0
02
1
1406-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1406-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) MAL
8-97120-747-0
01
1
1406-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1406-
81
NUT; BATTERY
M8 FLANGE MAL
0-91180-108-0
02
1
1406-
