◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#141111) — 49 parça

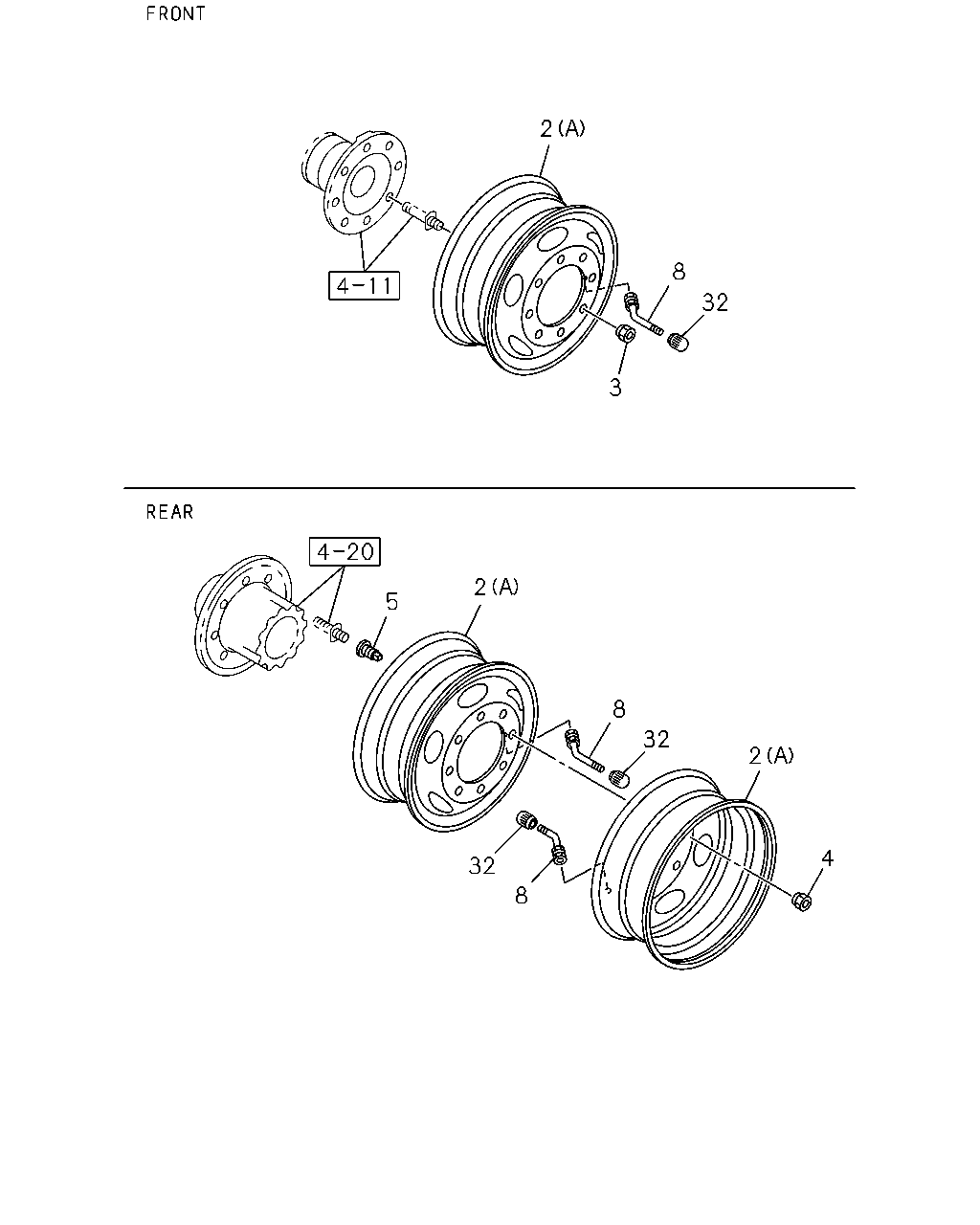

çizim 426529
2 8 32 3 5 2 8 32 2 4 8 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) FRONT,REAR 		1-42350-641-0 06 1 1406-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) FRONT 		1-42350-641-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) REAR 		1-42350-641-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) SPARE 		1-42350-641-0 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-641-0 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) FRONT,REAR 		1-42350-407-1 06 1 1406-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) FRONT 		1-42350-407-1 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) REAR 		1-42350-407-1 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) SPARE 		1-42350-407-1 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-407-1 01 1 1406-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD MAL 		1-42334-022-3 08 1 1406-
3 NUT; WHEEL,FRT AXLE
M24 MAL 		1-42333-022-3 08 1 1406-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD MAL 		8-97359-810-0 08 1 1406-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD MAL 		8-97359-809-0 08 1 1406-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 08 1 1406-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 08 1 1406-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE 		1-42370-020-3 01 1 1406-
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1406-
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) FRONT 		1-42370-020-3 02 1 1406-
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) REAR 		1-42370-020-3 04 1 1406-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) MAL 		1-42374-001-0 06 1 1406-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1406-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) MAL 		1-42374-001-0 07 1 1406-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1406-
çizim 426531
2 31 32 3 2 31 5 31 2 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) FRONT,REAR 		1-42350-641-0 06 1 1406-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) FRONT 		1-42350-641-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) REAR 		1-42350-641-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) (A) SPARE 		1-42350-641-0 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-641-0 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) FRONT,REAR 		1-42350-407-1 06 1 1406-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) FRONT 		1-42350-407-1 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) REAR 		1-42350-407-1 04 1 1409-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) (B) SPARE 		1-42350-407-1 01 1 1406-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-407-1 01 1 1406-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD MAL 		1-42334-022-3 08 1 1406-
3 NUT; WHEEL,FRT AXLE
M24 MAL 		1-42333-022-3 08 1 1406-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD MAL 		8-97359-810-0 08 1 1406-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD MAL 		8-97359-809-0 08 1 1406-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 08 1 1406-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 08 1 1406-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) 		1-42355-012-1 04 1 1409-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE 		1-42355-012-1 01 1 1406-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 1406-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) FRONT,REAR 		1-42355-012-1 06 1 1406-1408
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) 		1-42355-012-1 02 1 1409-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) MAL 		1-42374-001-0 06 1 1406-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> MAL 		1-42374-001-0 06 1 1406-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) MAL 		1-42374-001-0 07 1 1406-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> MAL 		1-42374-001-0 07 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
