Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

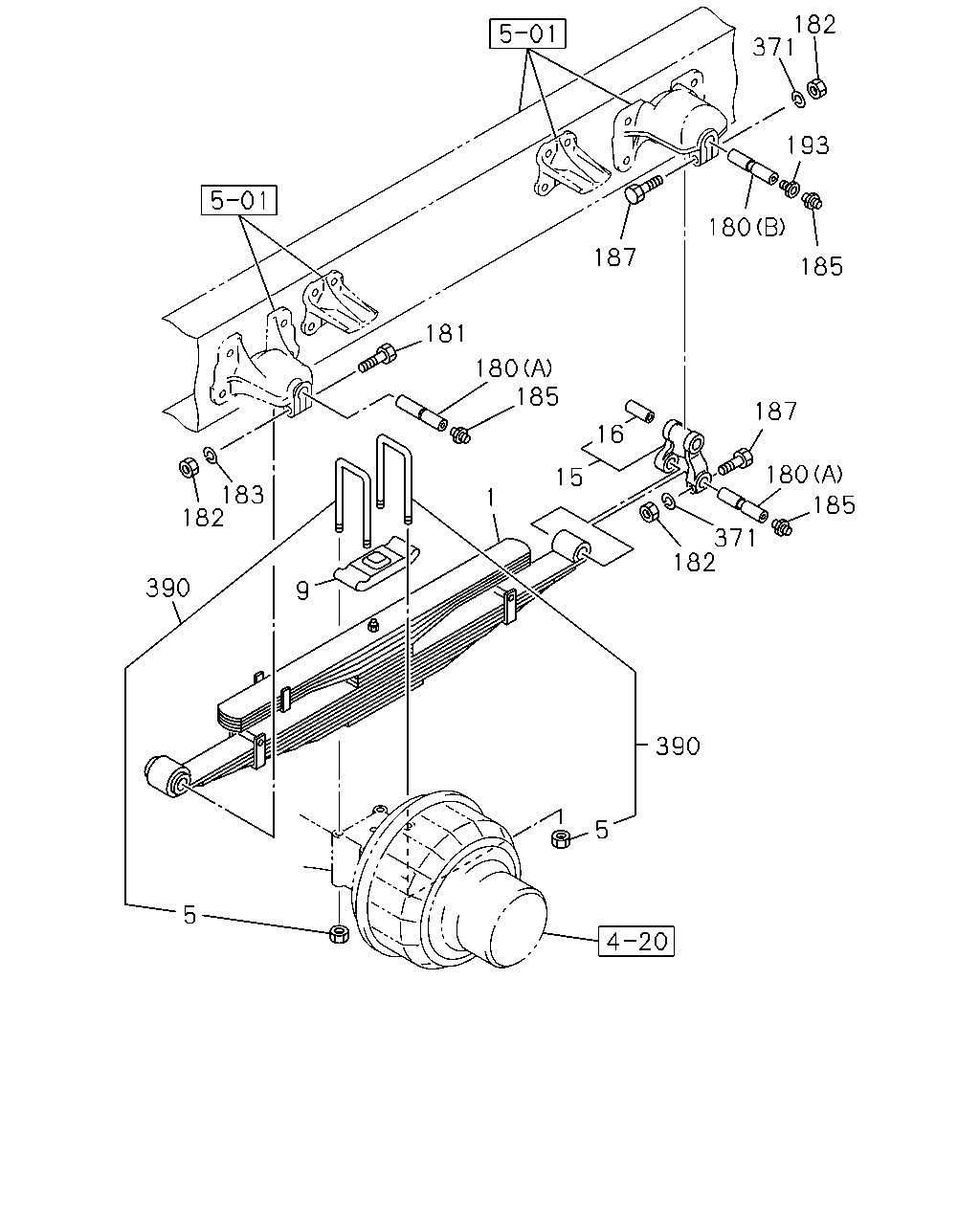

4-60 — REAR SUSPENSION
(#141109) — 15 parça
182
371
193
180
185
187
187
180
371
182
16
15
185
180
181
183
182
390
9
1
390
5
5
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF
8-98017-563-1
02
1
1406-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1406-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1406-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
1406-
16
BUSHING; SHACKLE,RR SPR
ID=25 MAL
8-98082-176-0
02
1
1406-
180
PIN; RR SPR
(A) DO=25 L=115 PT1/8 MAL
1-51361-016-0
04
1
1406-
180
PIN; RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
1406-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1406-
182
NUT; PIN,RR SPR
M12 MAL
0-91110-512-0
06
1
1406-
183
WASHER; LK,PIN,RR SPR
ID=12.2
8-98179-315-0
02
1
1406-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
06
1
1406-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
1406-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
1406-
371
WASHER; LK,SHACKLE
ID=12.2 MAL
0-91510-612-0
04
1
1406-
390
U-BOLT SET; RR SPRING
L=405
1-87870-372-1
04
1
1406-
