◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#141107) — 29 parça

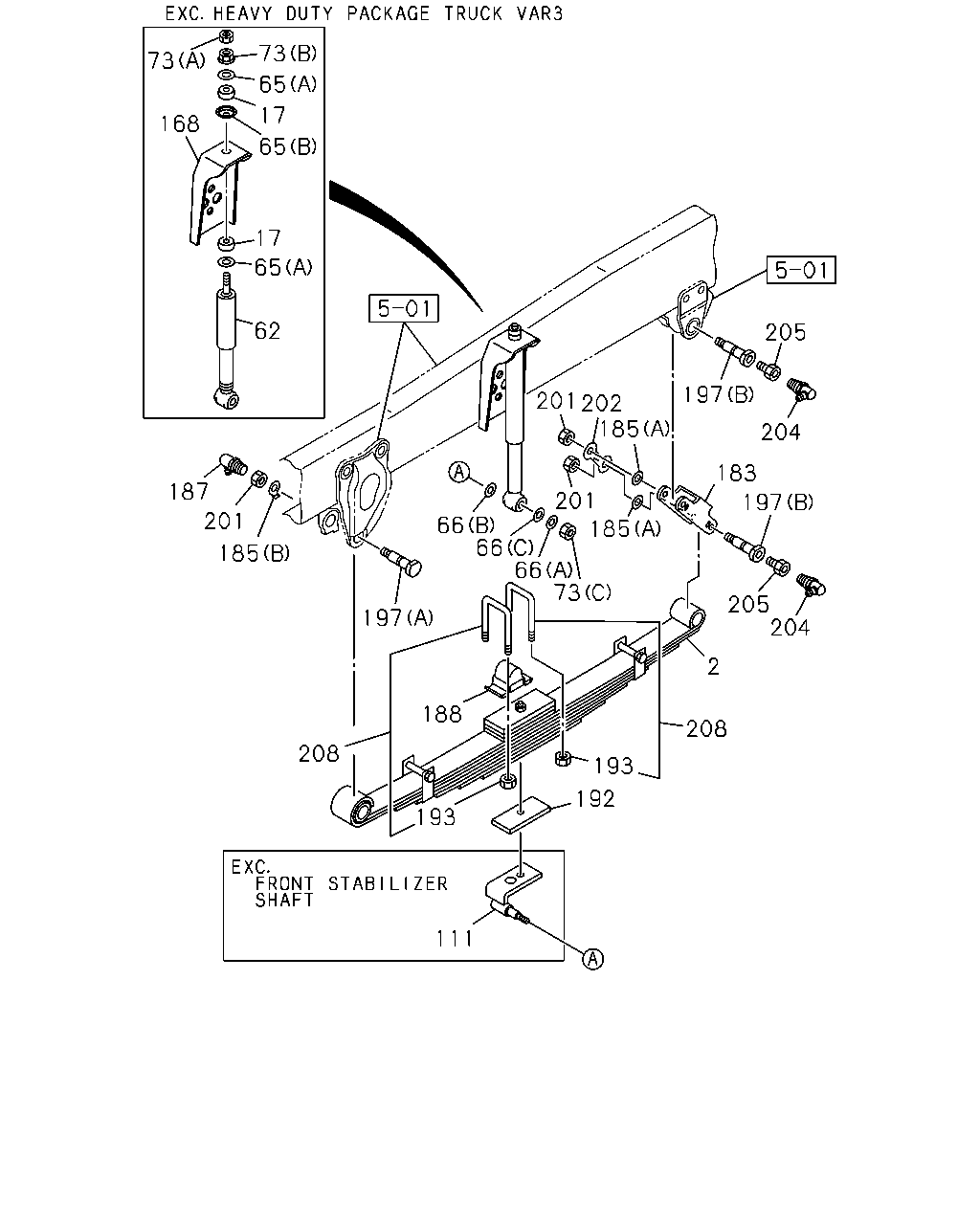

çizim 426541
73 73 65 168 17 65 17 65 62 187 201 185 208 197 66 66 66 73 185 201 185 201 202 197 205 204 183 197 205 204 2 208 193 192 188 193 111
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98017-558-0 01 1 1406-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98017-559-0 01 1 1406-
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1406-
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1406-
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1406-
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1406-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 MAL 		0-91510-812-0 02 1 1406-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1406-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1406-
73 NUT; BRKT,SHOCK
(C) M12 MAL 		0-91110-512-0 02 1 1406-
73 NUT; BRKT,SHOCK
(A) M10 		0-91111-510-0 02 1 1406-
73 NUT; BRKT,SHOCK
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1406-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 1406-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 1406-
168 BRACKET; S/ABS,FRT SUSP
MAL 		1-51681-494-0 02 1 1406-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1406-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1406-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1406-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1406-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1406-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1406-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1406-
197 PIN; FRT SPR,FRT
(B) MAL 		8-98060-333-0 04 1 1406-
197 PIN; FRT SPR,FRT
(A) MAL 		8-98060-335-0 02 1 1406-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1406-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1406-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 04 1 1406-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1406-
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
