Sayfa 4-35 - Isuzu EPC

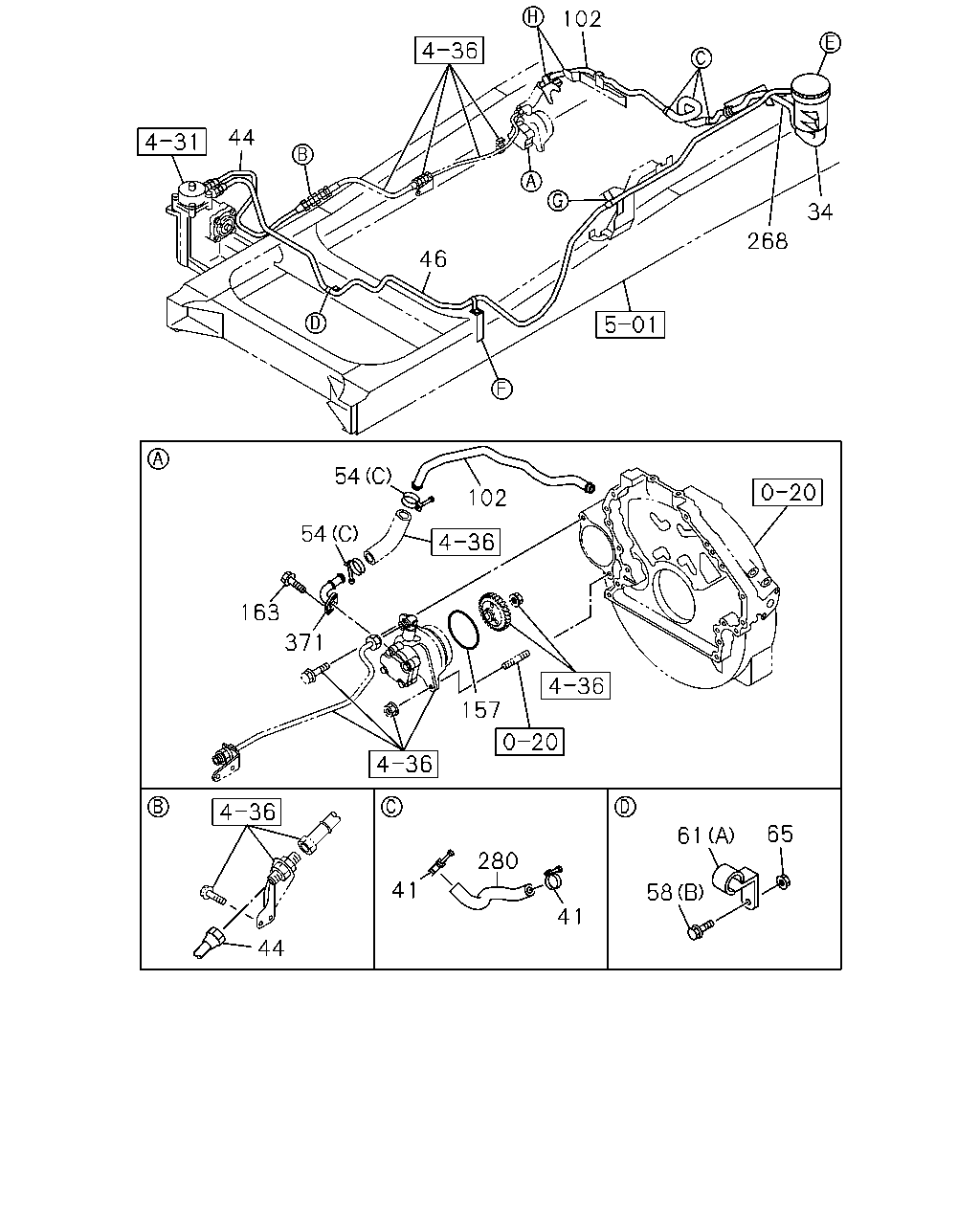

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#141103) — 57 parça

34 268 102 44 46 65 61 58 41 280 41 44 157 371 163 54 54 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1406-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1406-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98208-704-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2917	8-98212-855-0	01	1	1406-1412
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2891	8-98274-913-0	01	1	1501-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1406-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP (B) M8X20 FLANGE MAL	0-28650-820-0	04	1	1406-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-536-0	01	1	1406-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	1406-
65	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	04	1	1406-
102	PIPE; SUCTION,P/S	8-98080-186-2	01	1	1406-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1406-
163	BOLT; OIL PIPE M8X16 FLANGE MAL	0-28050-816-0	02	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98212-859-0	01	1	1406-
280	HOSE; P/S OIL PUMP,INL	8-98179-991-0	01	1	1406-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1406-

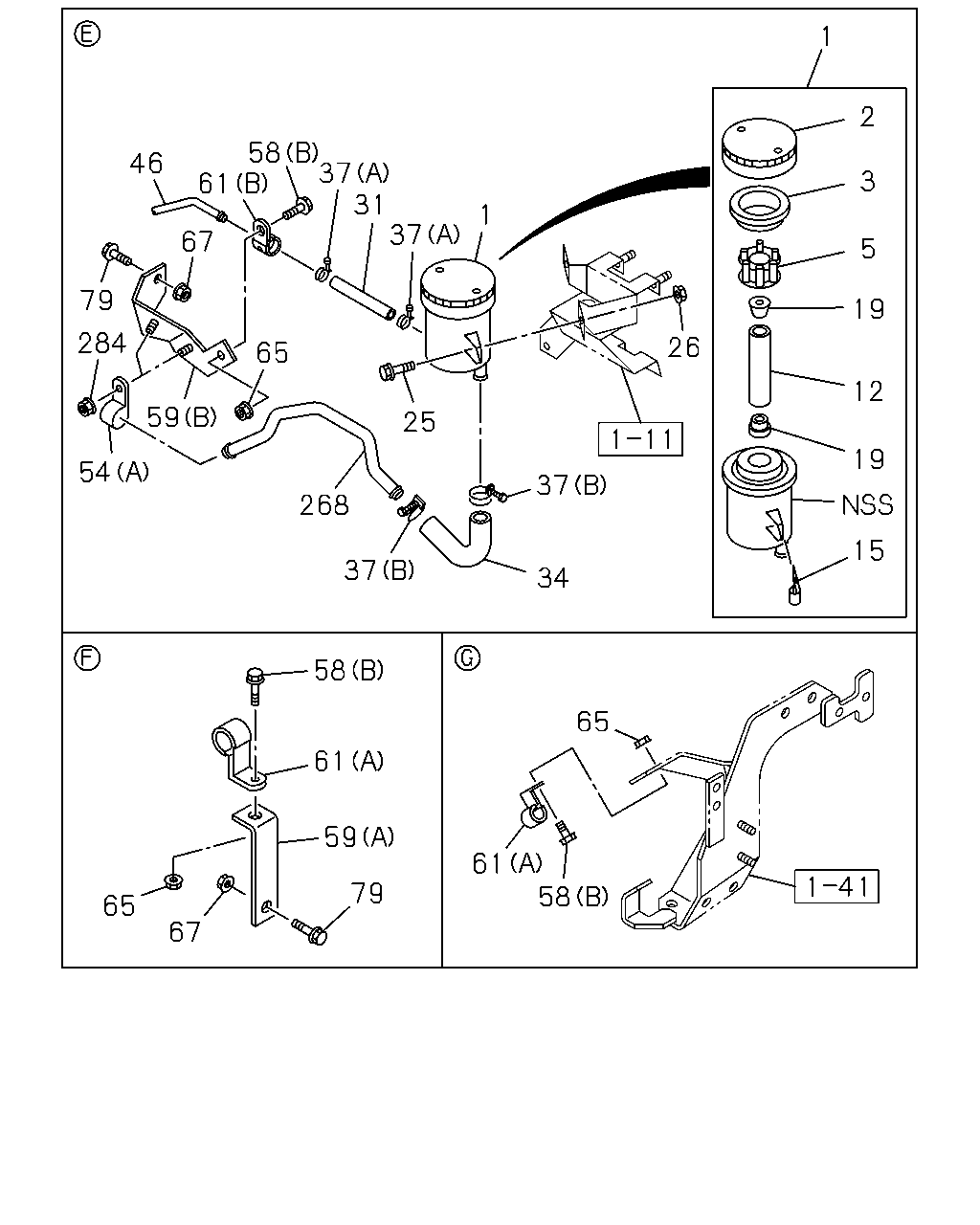

1 2 3 5 19 12 19 15 65 58 61 79 59 61 58 67 65 34 37 25 37 268 1 37 31 37 58 61 67 46 79 59 54 284 26 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1406-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1406-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1406-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1406-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1406-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1406-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1406-
25	BOLT; OIL TANK BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1406-
26	NUT; OIL TANK TO BRKT M8 FLANGE MAL	0-91180-108-0	02	1	1406-
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	1406-1412
31	HOSE; P/S OIL TANK,INL	0-09814-110-0	01	1	1501-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1406-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1406-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2917	8-98212-855-0	01	1	1406-1412
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2891	8-98274-913-0	01	1	1501-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1406-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP (B) M8X20 FLANGE MAL	0-28650-820-0	04	1	1406-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE (B)	8-98212-860-0	01	1	1406-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-536-0	01	1	1406-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	1406-
65	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	04	1	1406-
67	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	1406-
79	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98212-859-0	01	1	1406-
284	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	02	1	1406-

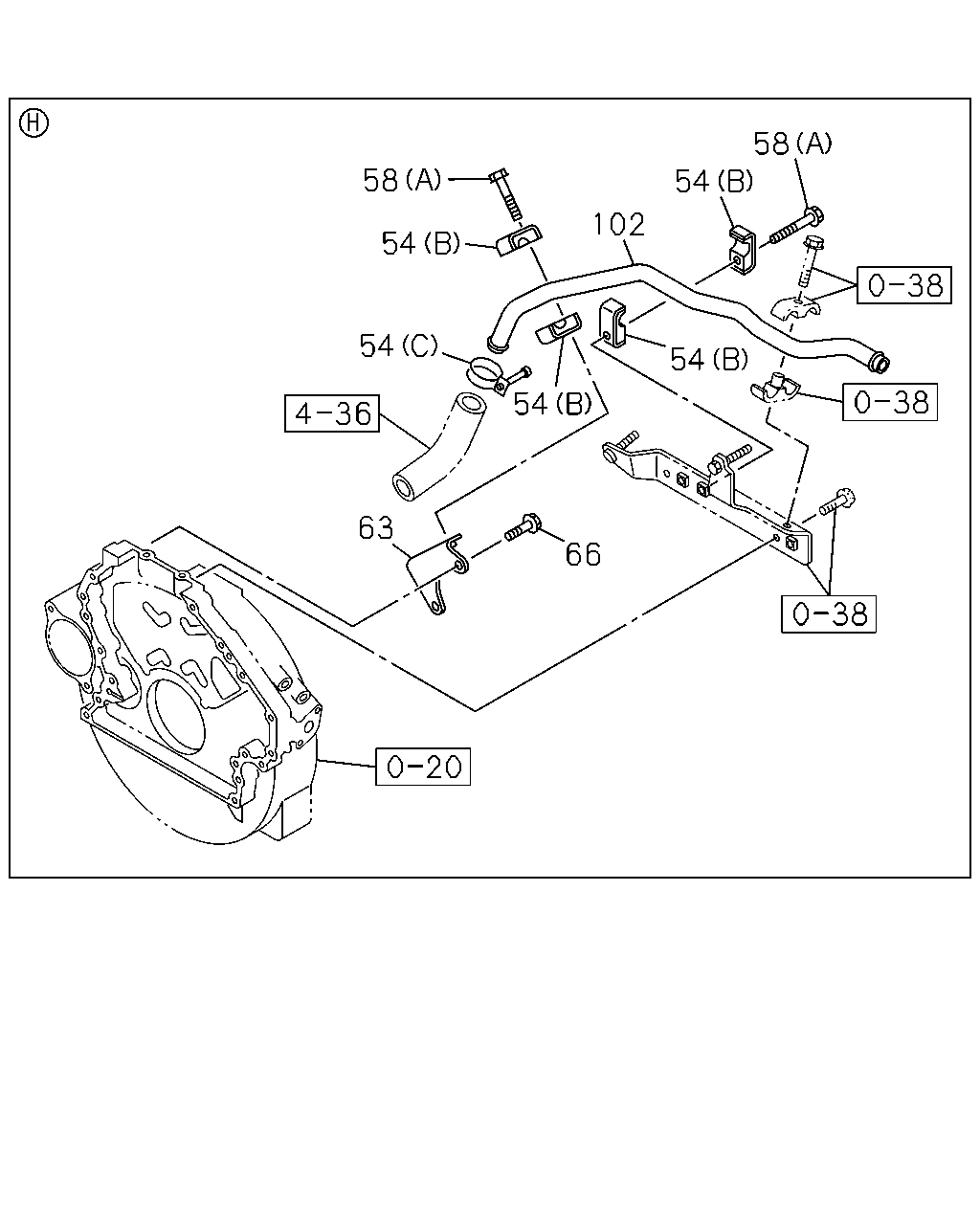

58 54 54 63 66 54 54 102 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1406-
58	BOLT; CLIP (A) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP (B) M8X20 FLANGE MAL	0-28650-820-0	04	1	1406-
63	BRACKET; CLIP,P/S	8-97375-107-0	01	1	1406-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE MAL	0-28050-816-0	02	1	1406-
102	PIPE; SUCTION,P/S	8-98080-186-2	01	1	1406-
