Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

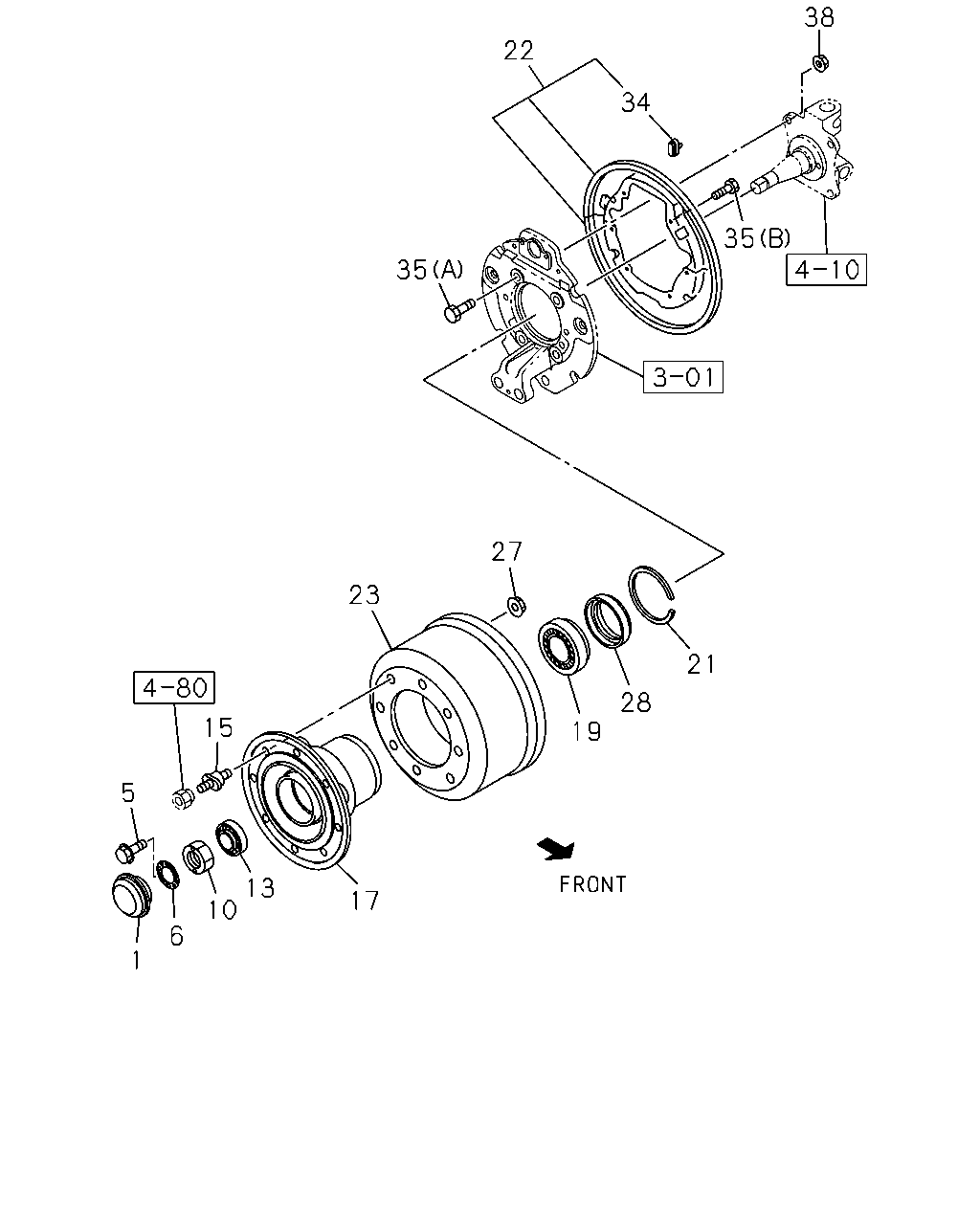

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#141097) — 20 parça
22
34
38
35
35
27
23
19
28
21
17
15
13
10
5
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-030-0
02
1
1406-1511
1
CAP; HUB,FRT AXLE
8-98331-640-0
02
1
1512-
5
BOLT; LK WASHER
M6X16 FLANGE MAL
0-28650-616-0
04
1
1406-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
1406-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
1406-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-064-0
02
1
1406-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-065-0
02
1
1406-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X55.5 RH THREAD
1-42331-132-1
08
1
1406-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X55.5 RH THREAD
1-42332-132-1
08
1
1406-
17
HUB; FRT AXLE
1-42312-036-2
02
1
1406-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-206-0
02
1
1406-
21
RING; SNAP,HUB
OD=117
1-09587-001-0
02
1
1406-
22
COVER SET; FRT BRK DRUM
1-85576-014-1
02
1
1406-
23
DRUM; BRK,FRT
1-42315-362-1
02
1
1406-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
1406-
28
SEAL; OIL,FRT HUB
1-09625-568-0
02
1
1406-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1406-
35
BOLT; DRUM COVER
(B) M10X12
1-47159-187-0
12
1
1406-
35
BOLT; DRUM COVER
(A) M14X50
8-98093-180-0
08
1
1406-
38
NUT; BACK PLATE
M14 FLANGE
8-98149-153-0
08
1
1406-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
